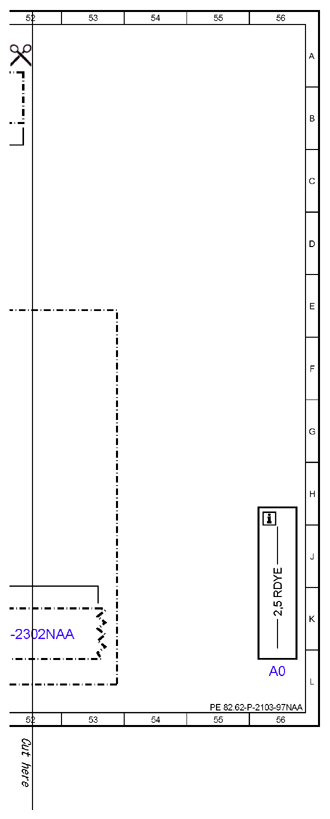

| A0 |
Color code key |
56L |
| A2 |
Radio |
28L |
| A2 |
Radio |
43L |

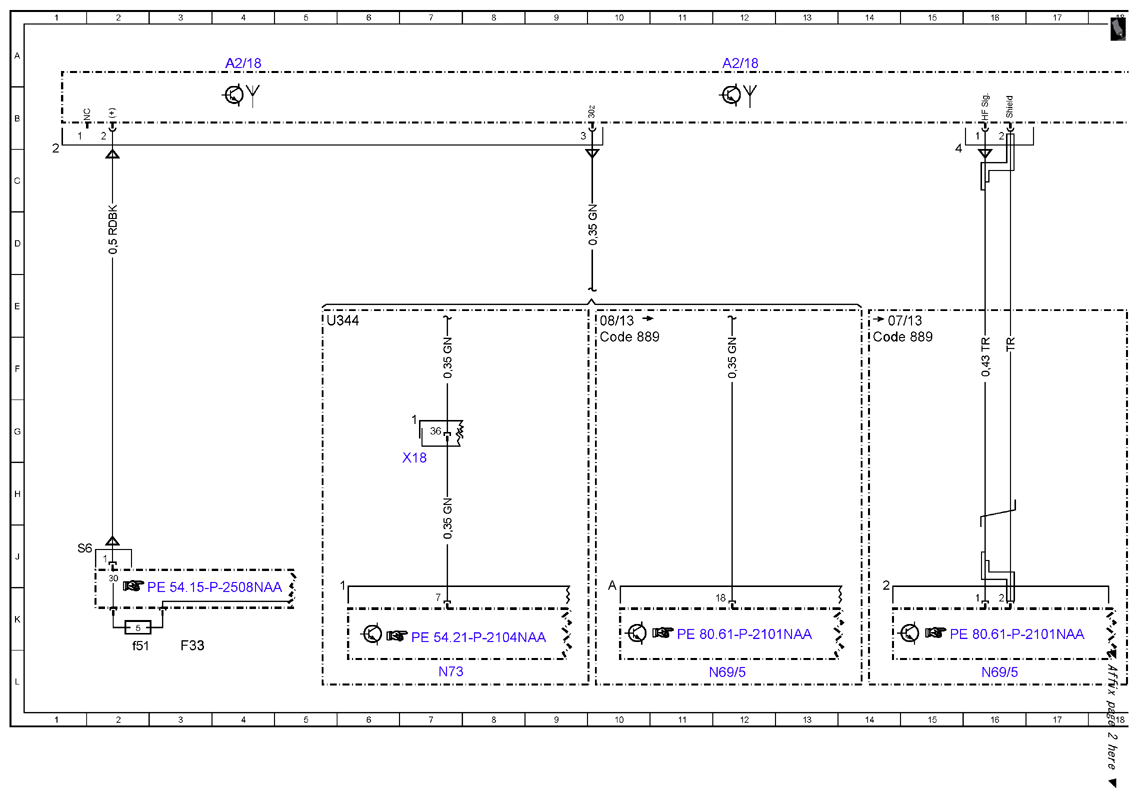

| A2/18 |
FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier |
4A |
| A2/18 |
FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier |
12A |
| A2/18 |
FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier |
20A |
| A2/18 |
FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier |
25A |

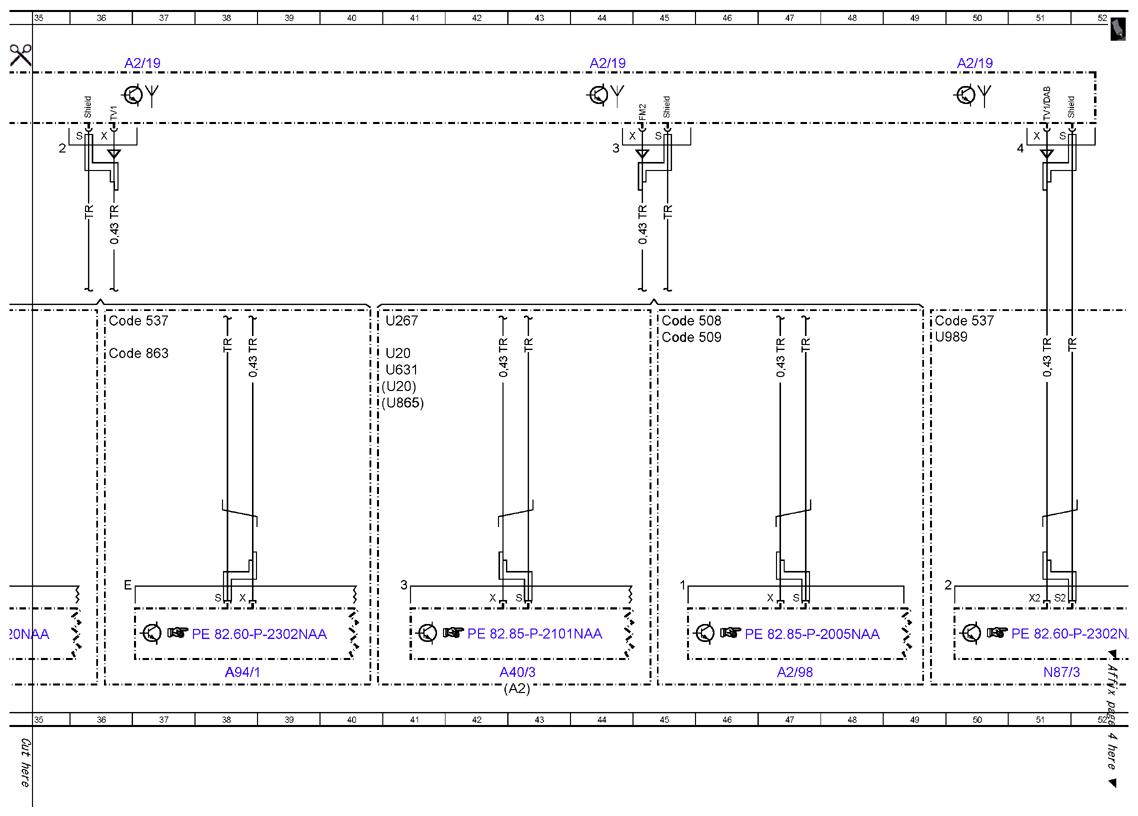

| A2/19 |
FM 2, DAB and TV 1 antenna amplifier |
29A |
| A2/19 |
FM 2, DAB and TV 1 antenna amplifier |
50A |
| A2/19 |
FM 2, DAB and TV 1 antenna amplifier |
37A |
| A2/19 |
FM 2, DAB and TV 1 antenna amplifier |
44A |

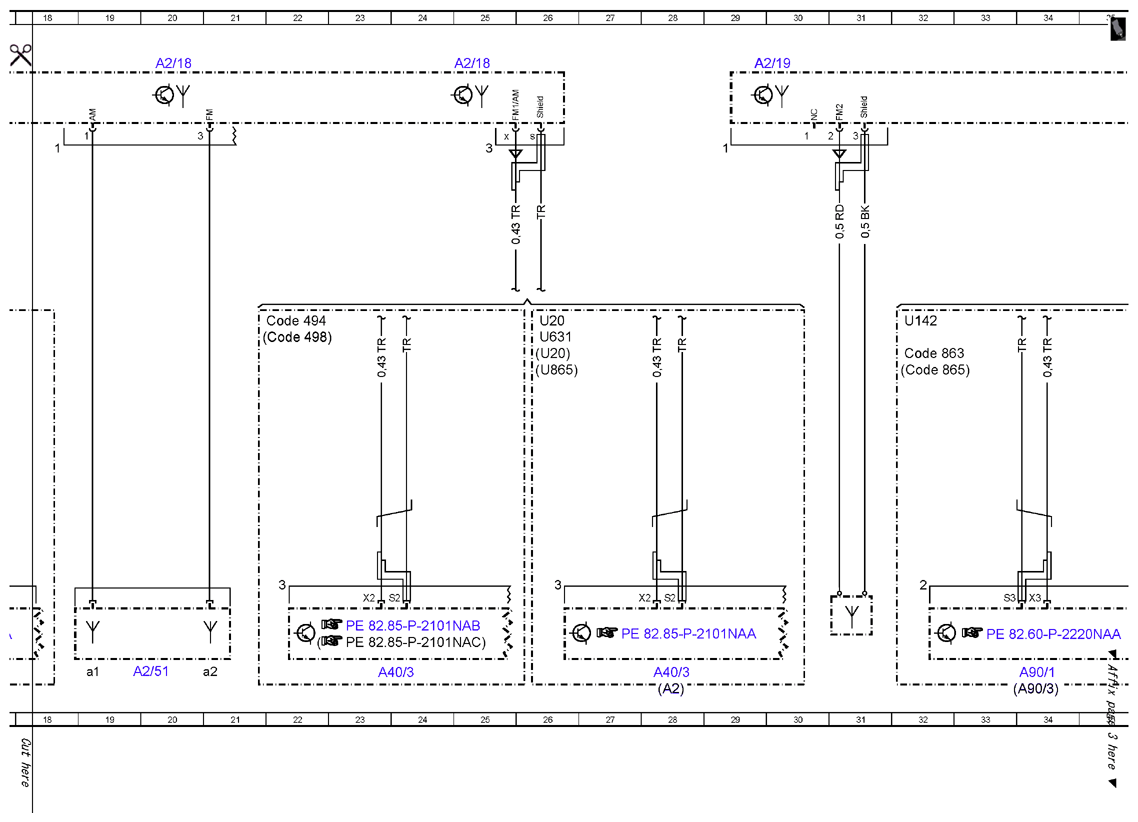

| A2/51 |
Rear spoiler antenna |
20L |
| A2/51a1 |
Rear spoiler AM antenna |
19L |
| A2/51a2 |
Rear spoiler FM antenna |
21L |
| A2/98 |
FM/TMC antenna splitter |
47L |
| A40/3 |
COMAND control unit |
28L |
| A40/3 |
COMAND control unit |
23L |
| A40/3 |
COMAND control unit |
43L |
| A90/1 |
TV tuner (analog/digital) |
34L |
| A90/3 |
TV digital tuner |
34L |
| A94/1 |
TV 1 antenna amplifier |
38L |
| Code 494 |
USA version |
22E |
| Code 498 |
Japan version |
21F |
| Code 508 |
Navigation module preinstallation |
45E |
| Code 509 |
Navigation module |
45F |
| Code 537 |
Digital radio |
49E |
| Code 537 |
Digital radio |
36E |
| Code 863 |
Digital/analog TV tuner |
32F |
| Code 863 |
Digital/analog TV tuner |
36F |
| Code 865 |
TV tuner |
32F |
| Code 889 |
KEYLESS-GO |
14F |
| Code 889 |
KEYLESS-GO |
10F |
| F33 |
Battery compartment prefuse box |
3L |
| F33f51 |
Fuse 51 |
2L |
| N69/5 |
KEYLESS-GO control unit |
16L |
| N69/5 |
KEYLESS-GO control unit |
12L |
| N73 |
Electronic ignition switch control unit |
7L |
| N87/3 |
Digital Audio Broadcasting control unit |
51L |
| U142 |
Valid without Digital Audio Broadcasting |
32E |
| U20 |
Valid for all (except {{USA}} {{Japan}}) |
26F |
| U20 |
Valid for all (except {{USA}} {{Japan}}) |
26E |
| U20 |
Valid for all (except {{USA}} {{Japan}}) |
40F |
| U20 |
Valid for all (except {{USA}} {{Japan}}) |
41F |
| U267 |
Not valid for navigation module |
41E |
| U344 |
Valid for all except KEYLESS GO |
5E |
| U631 |
Valid for COMAND |
26F |
| U631 |
Valid for COMAND |
41F |
| U865 |
Valid for Audio 20 |
26F |
| U865 |
Valid for Audio 20 |
40G |
| U989 |
Valid without TV tuner |
49F |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
7H |
