Wiring diagram for DVD player control unit - PE82.60-P-2104-97NBA

Code:	Designation:	Position:
A0	Color code key	48L
A40/3	COMAND control unit	10L
A40/4	DVD player	4A
A40/4	DVD player	12A
A40/4	DVD player	21A
A40/4	DVD player	28A
A40/4	DVD player	36A
A40/4	DVD player	44A
A40/5	Left rear display	40L
A40/6	Right rear display	21L
CAN A	Telematics CAN	32K
CAN A	Telematics CAN	34K
CAN A	Telematics CAN	35K
F33	Battery compartment prefuse box	3L
F33	Battery compartment prefuse box	29L
F33MF3	Multiple fuse 3	2K
F33MF3	Multiple fuse 3	27K
W12	Ground point (center console)	3E
W15/1	Right footwell ground point	22E
W15/2	Left footwell ground point	38E
X30/47	Telematics CAN voltage distributor electrical connector	34L
X55/50	Left rear display electrical connector	37G
X55/50	Left rear display electrical connector	41G
X55/51	Right rear display electrical connector	17G
X55/51	Right rear display electrical connector	22G

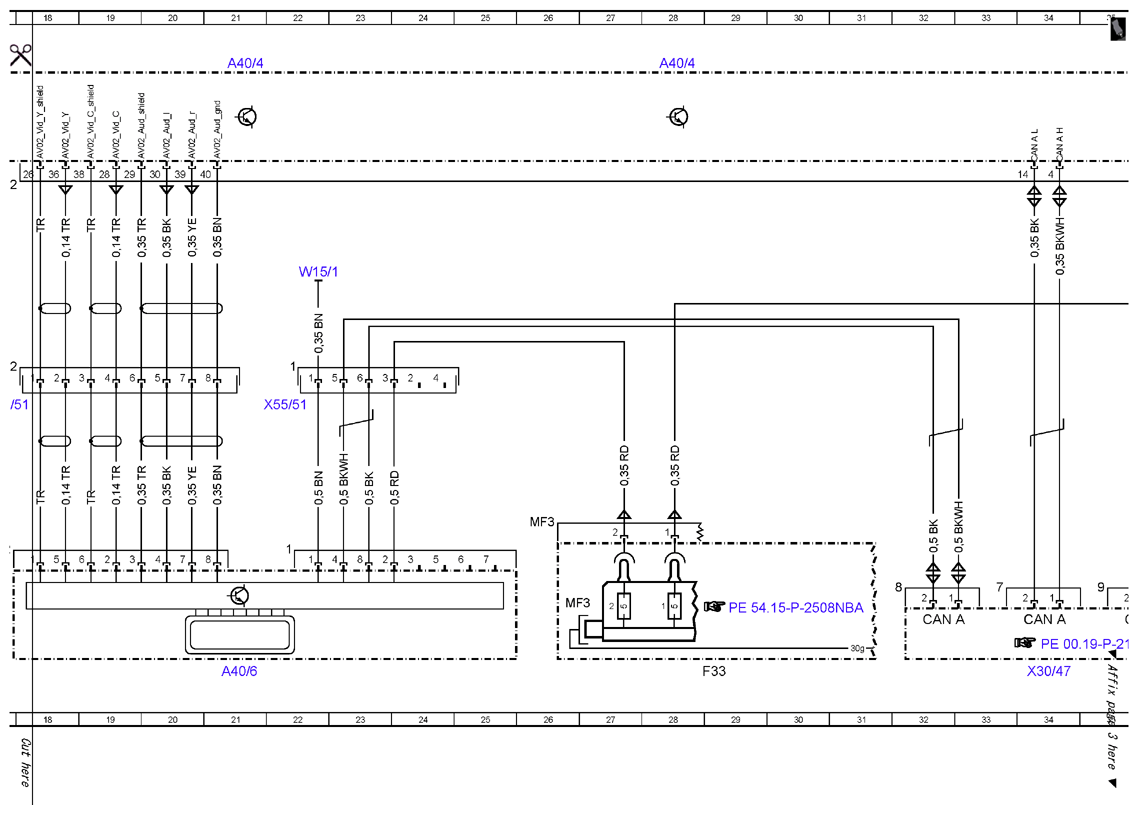

Fig 1: DVD Player Control Unit - Wiring Diagram (1 Of 3)

Courtesy of MERCEDES-BENZ USA

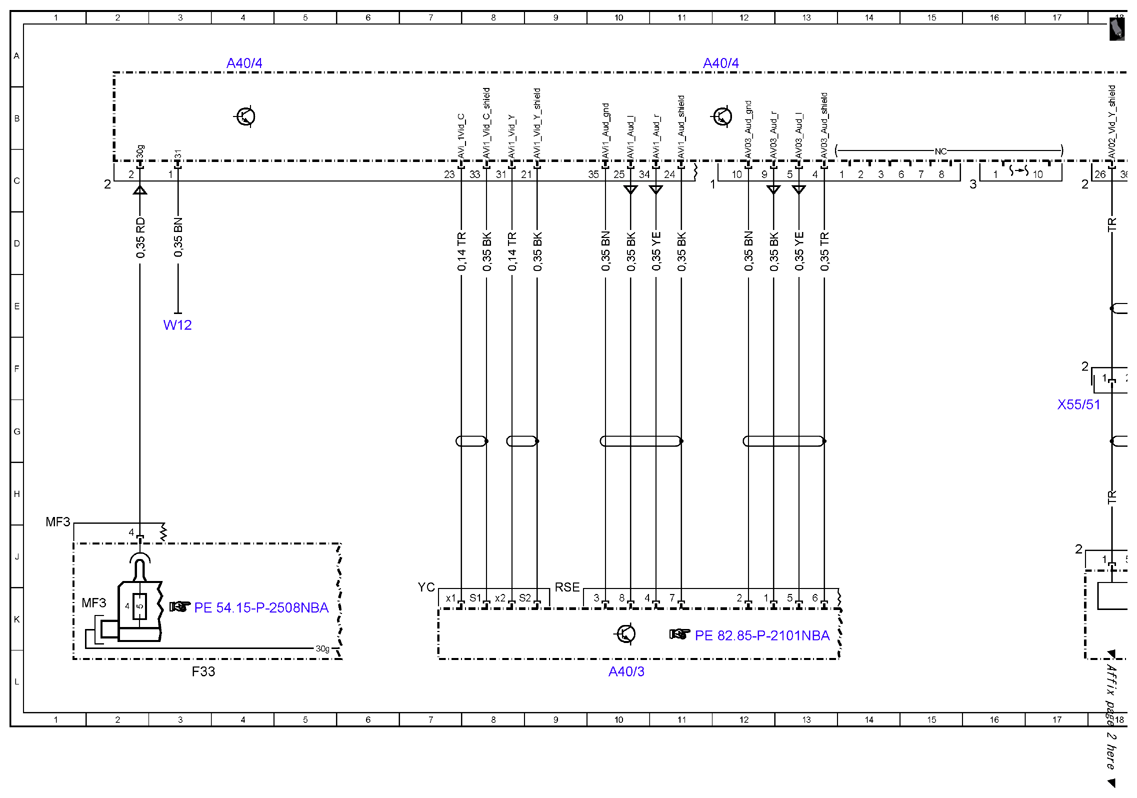

Fig 2: DVD Player Control Unit - Wiring Diagram (2 Of 3)

Courtesy of MERCEDES-BENZ USA

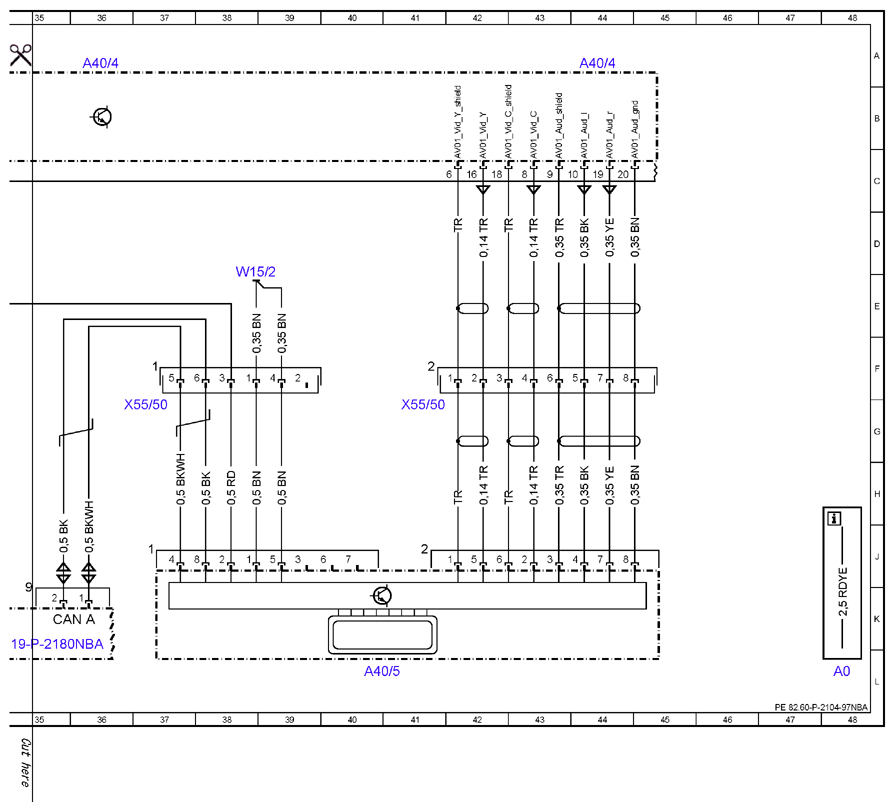

Fig 3: DVD Player Control Unit - Wiring Diagram (3 Of 3)

Courtesy of MERCEDES-BENZ USA
