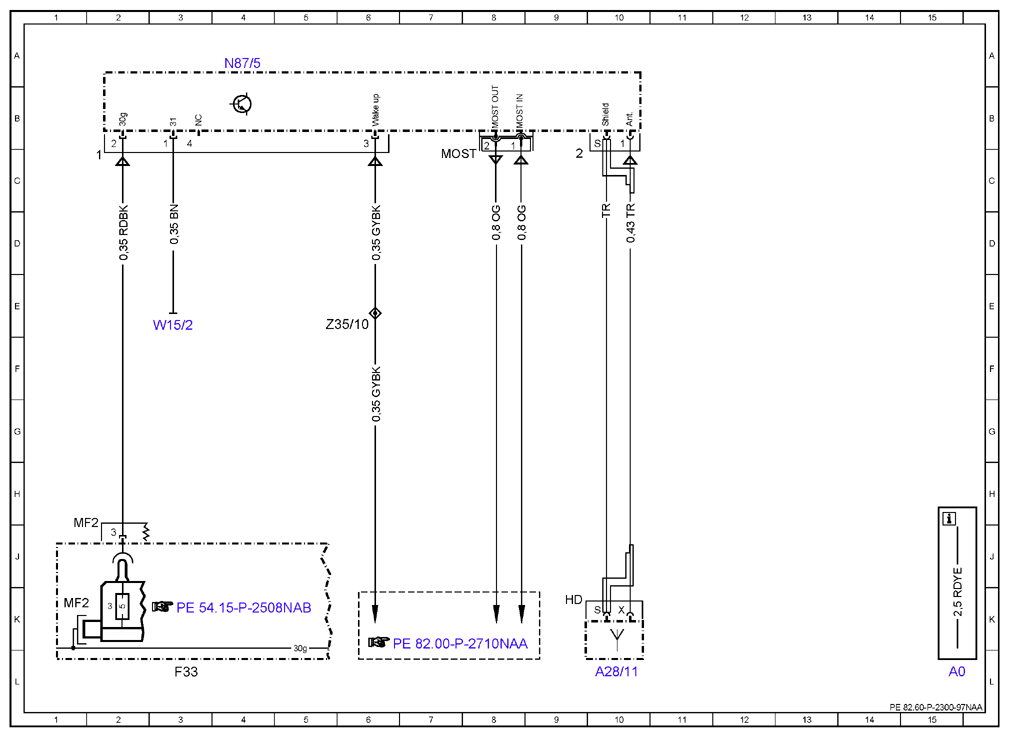

| A0 |
Color code key |
15L |
| A28/11 |
Multifunction antenna |
10L |
| F33 |
Battery compartment prefuse box |
3L |
| F33MF2 |
Multiple fuse 2 |
1K |
| N87/5 |
Satellite digital audio radio (SDAR) control unit |
4A |
| W15/2 |
Left footwell ground point |
3E |
| Z35/10 |
MOST wake-up signal connector sleeve |
6E |
