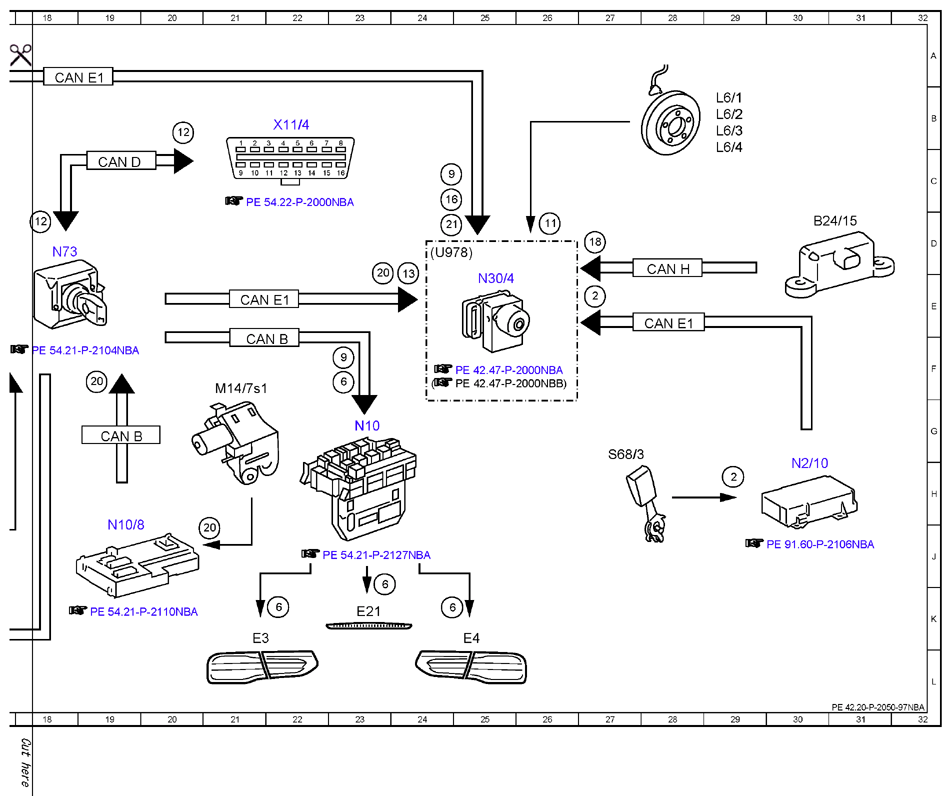

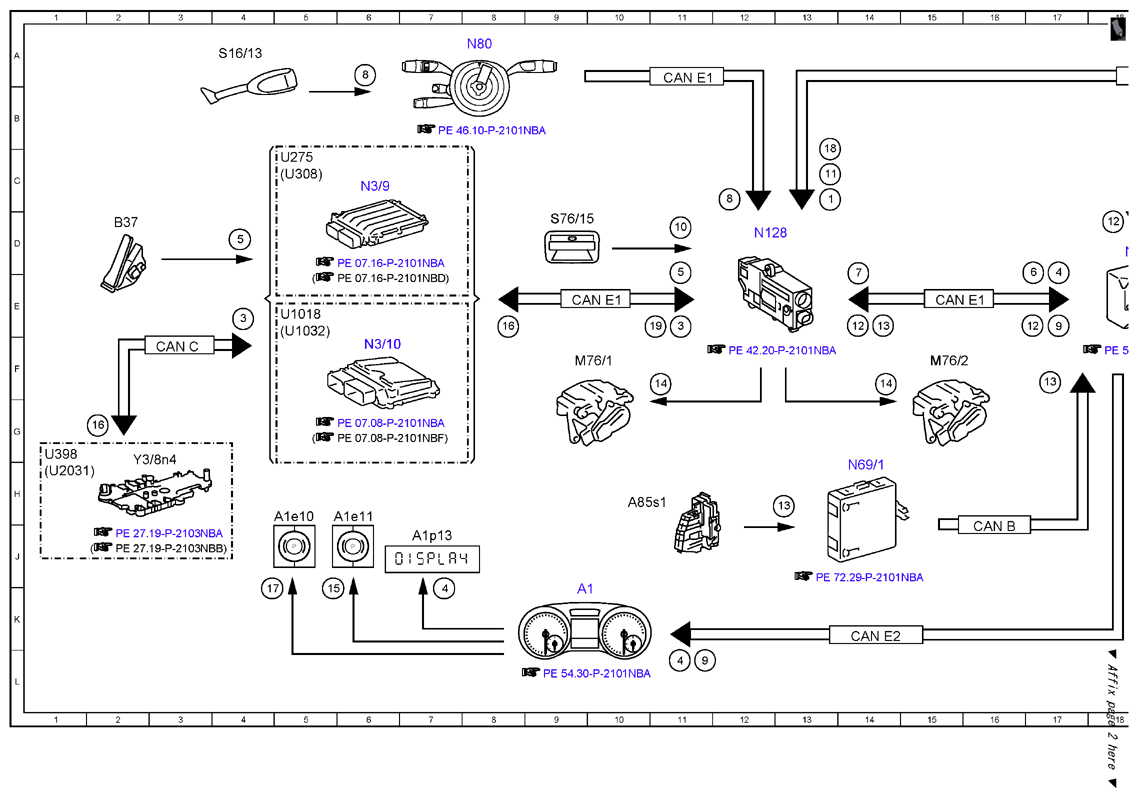

| 1 |
ESP®, status |
13C |
| 10 |
Electric parking brake switch, status |
11D |
| 11 |
Wheel speed, signal |
26D |
| 11 |
Wheel speed, signal |
13C |
| 12 |
Diagnosis, communication |
18D |
| 12 |
Diagnosis, communication |
20B |
| 12 |
Diagnosis, communication |
14E |
| 12 |
Diagnosis, communication |
17E |
| 13 |
Rotary tumbler switch, status |
13H |
| 13 |
Rotary tumbler switch, status |
14E |
| 13 |
Rotary tumbler switch, status |
24E |
| 13 |
Rotary tumbler switch, status |
17F |
| 14 |
Actuator motors, actuation |
14F |
| 14 |
Actuator motors, actuation |
11F |
| 15 |
Parking brake warning lamp, actuation |
5K |
| 16 |
Electric parking brake control unit, status |
2G |
| 16 |
Electric parking brake control unit, status |
8E |
| 16 |
Electric parking brake control unit, status |
24C |
| 17 |
Parking brake indicator lamp, actuation |
4K |
| 18 |
Speed, turn rate and lateral acceleration, signal |
13C |
| 18 |
Speed, turn rate and lateral acceleration, signal |
27D |
| 19 |
Engine running, signal |
11E |
| 2 |
Seat belt buckle switch, status |
29H |
| 2 |
Seat belt buckle switch, status |
27E |
| 20 |
Tailgate rotary tumbler switch, status |
23E |
| 20 |
Tailgate rotary tumbler switch, status |
21J |
| 20 |
Tailgate rotary tumbler switch, status |
19F |
| 21 |
Dynamometer mode, status |
24D |
| 3 |
Transmission control, status |
4E |
| 3 |
Transmission control, status |
11E |
| 4 |
Instrument cluster, message |
7K |
| 4 |
Instrument cluster, message |
17E |
| 4 |
Instrument cluster, message |
11L |
| 5 |
Accelerator pedal sensor, signal |
4D |
| 5 |
Accelerator pedal sensor, signal |
11E |
| 6 |
Brake lights, actuation |
23F |
| 6 |
Brake lights, actuation |
17E |
| 6 |
Brake lights, actuation |
22K |
| 6 |
Brake lights, actuation |
24K |
| 6 |
Brake lights, actuation |
23K |
| 7 |
Circuit 15R, status |
14E |
| 8 |
Gear range, status |
6A |
| 8 |
Gear range, status |
12C |
| 9 |
Emergency stop, signal |
17E |
| 9 |
Emergency stop, signal |
24C |
| 9 |
Emergency stop, signal |
23F |
| 9 |
Emergency stop, signal |
11L |
| A1 |
Instrument cluster |
9K |
| A1e10 |
Parking brake indicator lamp |
5H |
| A1e11 |
Parking brake indicator lamp |
6H |
| A1p13 |
Multifunction display |
7J |
| A85s1 |
Left front door pre-locking position microswitch |
10H |
| B24/15 |
Yaw rate sensor for lateral and longitudinal acceleration |
30D |
| B37 |
Accelerator pedal sensor |
2D |
| CAN B |
Interior CAN |
16J |
| CAN B |
Interior CAN |
21F |
| CAN B |
Interior CAN |
19G |
| CAN C |
Drive train CAN |
3F |
| CAN D |
Diagnostic CAN |
19C |
| CAN E1 |
Chassis CAN 1 |
15E |
| CAN E1 |
Chassis CAN 1 |
9E |
| CAN E1 |
Chassis CAN 1 |
21E |
| CAN E1 |
Chassis CAN 1 |
18A |
| CAN E1 |
Chassis CAN 1 |
28E |
| CAN E1 |
Chassis CAN 1 |
11A |
| CAN E2 |
Chassis CAN 2 |
14K |
| CAN H |
Vehicle dynamics CAN |
28D |
| E21 |
Center stop lamp |
23K |
| E3 |
Left rear lamp unit |
21K |
| E4 |
Right rear lamp unit |
25K |
| L6/1 |
Left front axle RPM sensor |
29B |
| L6/2 |
Right front axle RPM sensor |
29B |
| L6/3 |
Left rear axle RPM sensor |
29B |
| L6/4 |
Right rear axle RPM sensor |
29C |
| M14/7s1 |
Tailgate rotary tumbler switch |
21F |
| M76/1 |
Left electric parking brake actuator motor |
9F |
| M76/2 |
Right electric parking brake actuator motor |
15F |
| N10 |
SAM control unit |
23G |
| N10/8 |
Rear control unit |
19J |
| N128 |
Electric parking brake control unit |
12D |
| N2/10 |
Supplemental restraint system control unit |
30H |
| N3/10 |
ME-SFI [ME] control unit |
6F |
| N3/9 |
CDI control unit |
6C |
| N30/4 |
Electronic Stability Program control unit |
25E |
| N69/1 |
Left front door control unit |
14H |
| N73 |
Electronic ignition switch control unit |
18D |
| N80 |
Steering column module control unit |
8A |
| S16/13 |
DIRECT SELECT lever |
4A |
| S68/3 |
Driver seat belt buckle restraint system switch |
27G |
| S76/15 |
Electric parking brake switch |
9D |
| U1018 |
Valid for gasoline engine 276 |
5E |
| U1032 |
Valid for engine 278 and 157 |
5E |
| U2031 |
Valid for transmission 724 |
1H |
| U275 |
Valid for engine 642.8 |
5C |
| U308 |
Valid for diesel engine 651.9 |
5C |
| U398 |
Valid for transmission 725 (NAG3) |
1G |
| U978 |
Valid for hybrid drive |
24D |
| X11/4 |
Diagnostic connector |
22B |
| Y3/8n4 |
Fully integrated transmission control control unit |
2H |
