Overview of system components for regenerative braking system - GF42.22-P-9999GRH

MODEL 166.063 as of model year 2016

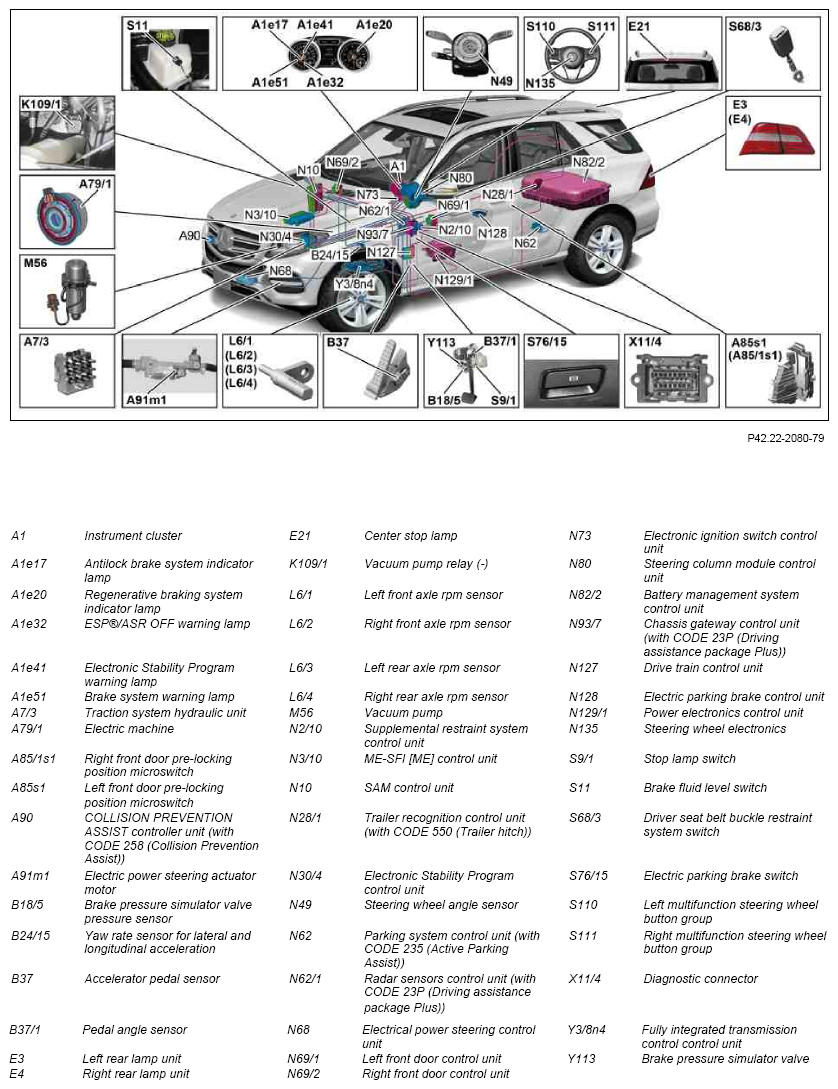

Fig 1: Overview Of Regenerative Braking System Components
G10079970Courtesy of MERCEDES-BENZ USA

Overview of system components

View of the engine compartment at the rear left

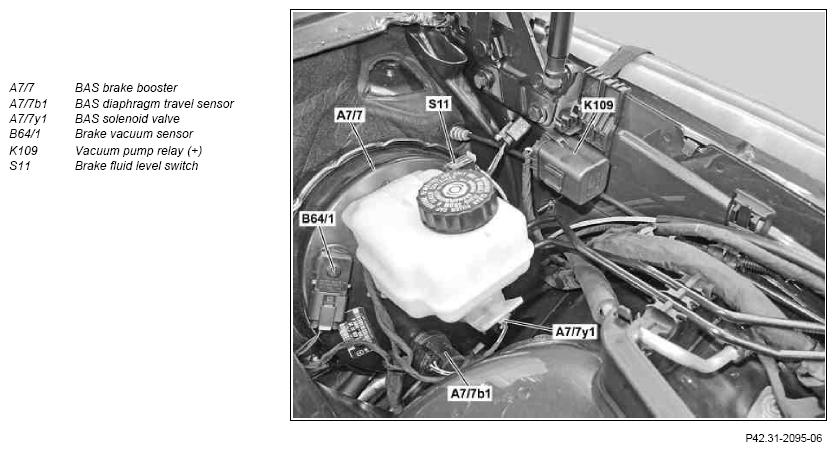

Fig 2: View Of Engine Compartment (Rear Left)
G10079971Courtesy of MERCEDES-BENZ USA

View of high-voltage battery (A100g1)

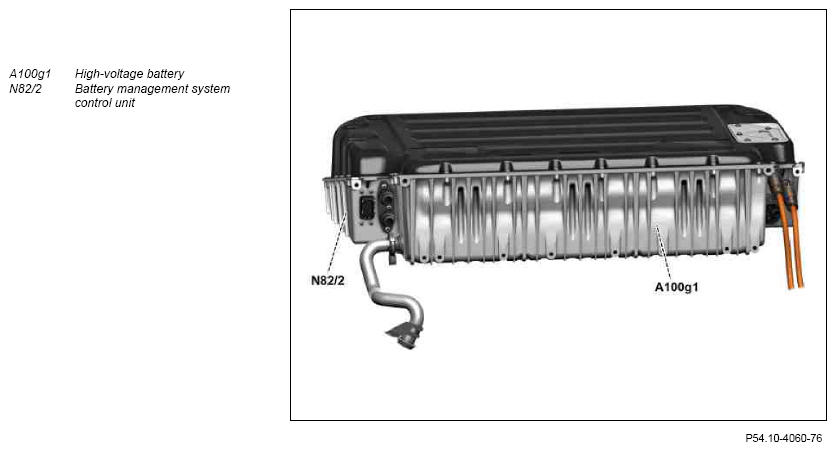

Fig 3: View Of High-Voltage Battery
G10079972Courtesy of MERCEDES-BENZ USA

View of control panels

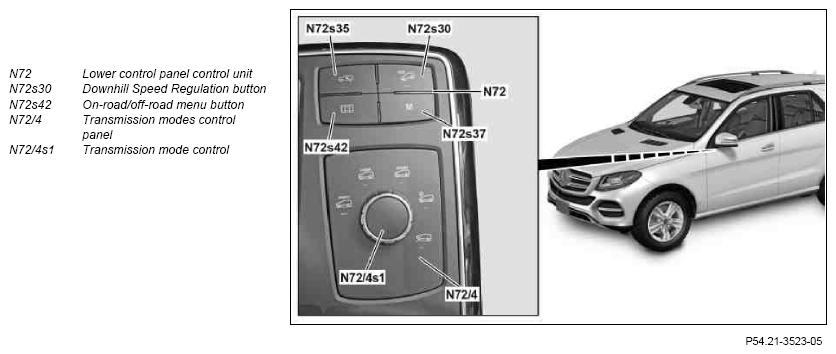

Fig 4: View Of Control Panels (1 Of 2)
G10079973Courtesy of MERCEDES-BENZ USA

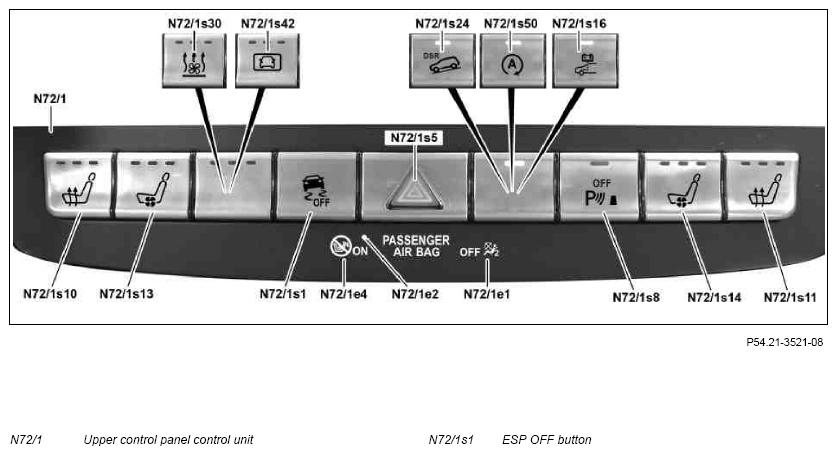

Fig 5: View Of Control Panels (2 Of 2)
G10079974Courtesy of MERCEDES-BENZ USA

View of control panel

Component description for instrument cluster A1, A1e17, A1e20, A1e32, A1e41, A1e51 GF54.30-P-6000GN
COLLISION PREVENTION ASSIST controller unit, component description MODEL 166.063
as of model year 2016
with CODE 258 (COLLISION PREVENTION ASSIST)
A90		 GF30.30-P-3214GN
Turn rate, lateral and longitudinal acceleration sensor, component description B24/15 GF42.45-P-4082GN
Supplemental restraint system control unit, component description N2/10 GF91.60-P-4080GN
Component description for ME-SFI (ME) control unit MODEL 166.063 with ENGINE 276.8
as of model year 2016
N3/10		 GF07.61-P-6000MMM
SAM control unit, component description N10 GF54.21-P-4157GN
Component description for trailer recognition control unit MODEL 166.063
as of model year 2016
with CODE 550 (Trailer coupling)
N28/1		 GF31.19-P-4050GN
Component description for Electronic Stability Program control unit N30/4 GF42.45-P-5119GRH
Parking system control unit component description MODEL 166.063
as of model year 2016
with CODE 235 (Active Parking Assist)
N62		 GF54.65-P-5002GN
Component description for radar sensors control unit MODEL 166.063
as of model year 2016
with CODE 23P (Driving Assistance package Plus)
N62/1		 GF30.30-P-3301GN
Electrical power steering control unit (ES), component description N68 GF46.35-P-7010GN
Component description for left front door control unit N69/1 GF72.29-P-6001GN
Component description for right front door control unit N69/2 GF72.29-P-6009GN
Lower control panel control unit, component description N72, N72s30, N72s42, N72/4, N72/4s1 GF54.21-P-6060GN
Upper control panel control unit, component description N721, N72/1s1 GF54.21-P-6040GN
Component description for the electronic ignition lock control unit N73 GF80.57-P-6001GN
Component description for steering column tube module control unit N80 GF54.21-P-6051GN
Component description for battery management system control unit N82/2 GF54.10-P-3012GRH
Component description for chassis gateway control unit MODEL 166.063
as of model year 2016
with CODE 23P (Driving Assistance package Plus)
N93/7		 GF54.21-P-1010GN
Drivetrain control unit, component description N127 GF54.21-P-2141GN
Electric parking brake control unit, component description N128 GF42.20-P-5005GN
Component description for power electronics control unit N129/1 GF08.20-P-1001GRH
Component description for fully integrated transmission control unit MODEL 166.063 with TRANSMISSION 724.204
as of model year 2016
Y38n4		 GF27.60-P-5165GRH
Table of contents for function description of regenerative brake system   GF42.22-P-0999GRH
