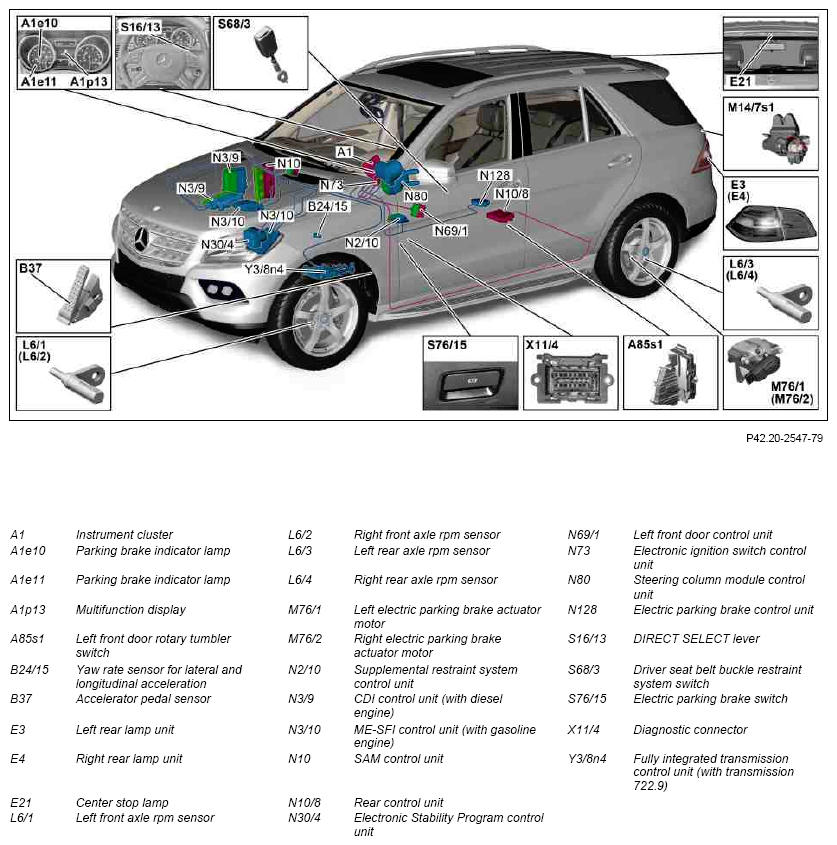

Overview of system components for electric parking brake - GF42.20-P-9998GR
MODEL 166 up to model year 2016
Depending on the engine involved, the ME-SFI [ME] control unit has the following installation location:
- Engine 276, on left of engine
- Engine 278 and 157, on center of engine
Depending on the engine involved, the CDI control unit has the following installation location:
- Engine 642, in the right front wheel arch behind the wheel
- Engine 651, on the air filter housing
| Component description for instrument cluster | A1, A1e10, A1e11, A1p13 | GF54.30-P-6000GR |
| Turn rate, lateral and longitudinal acceleration sensor, component description | B24/15 | GF42.45-P-4082GR |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GR |
| Component description for CDI control unit | MODEL 166 with ENGINE 642.8 up to model year 2016 N3/9 |
GF07.16-P-6000OGR |
| MODEL 166 with ENGINE 651.9 up to 2/28/13 up to model year 2016 |
GF07.16-P-6000OLG | |
| MODEL 166 with ENGINE 651.9 as of 3/1/13 up to model year 2016 |
GF07.16-P-6000OLL | |
| Component description for ME-SFI (ME) control unit | MODEL 166 with ENGINE 276.8 up to model year 2016 N3/10 |
GF07.61-P-6000MMU |
| MODEL 166 with ENGINE 276.9 up to model year 2016 |
GF07.61-P-6000MMG | |
| MODEL 166 with ENGINE 157.9, 278.9 up to model year 2016 |
GF07.61-P-6000MMR | |
| SAM control unit, component description | N10 | GF54.21-P-4157GR |
| Rear control unit, component description | N10/8 | GF54.21-P-4134GR |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GR |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GR |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GR |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GR |
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005GR |
| Component description for fully integrated transmission control unit | MODEL 166 with TRANSMISSION 722.9 up to model year 2016 Y38n4 |
GF27.60-P-5165AHA |
| Table of contents for function description, electric parking brake | GF42.20-P-0999GR |
