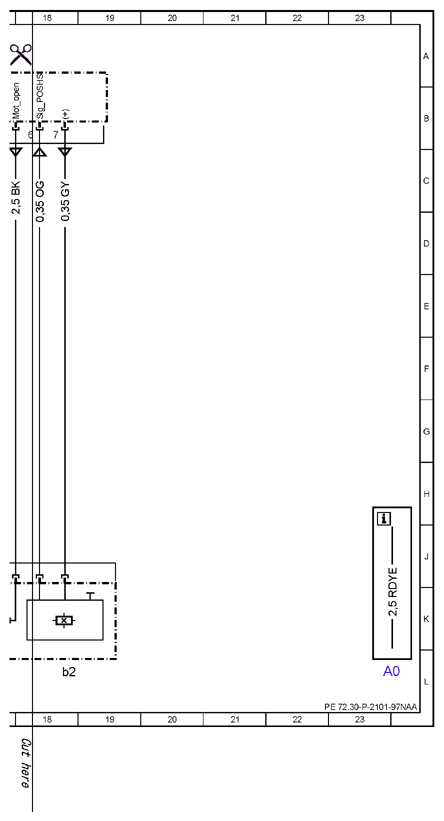

| A0 |
Color code key |
23L |
| B86/1 |
Left EASY-PACK liftgate anti-pinch protection contact bar |
10L |
| B86/1x1 |
Left EASY-PACK liftgate anti-pinch protection contact bar electrical connector |
10H |
| B86/2 |
Right EASY-PACK liftgate anti-pinch protection contact bar |
11L |
| B86/2x1 |
Right EASY-PACK liftgate anti-pinch protection contact bar electrical connector |
11H |
| CAN B |
Interior CAN |
8K |
| F4 |
Rear fuse box |
4L |
| F4f106 |
Fuse 106 |
3L |
| F4f154 |
Fuse 154 |
2L |
| H4/60 |
Tailgate control warning buzzer |
12L |
| M51/3 |
Tailgate control drive unit |
17L |
| M51/3b1 |
Tailgate control Hall sensor |
16L |
| M51/3b2 |
Tailgate control position sensor |
18L |
| M51/3m1 |
Tailgate control electric motor |
17L |

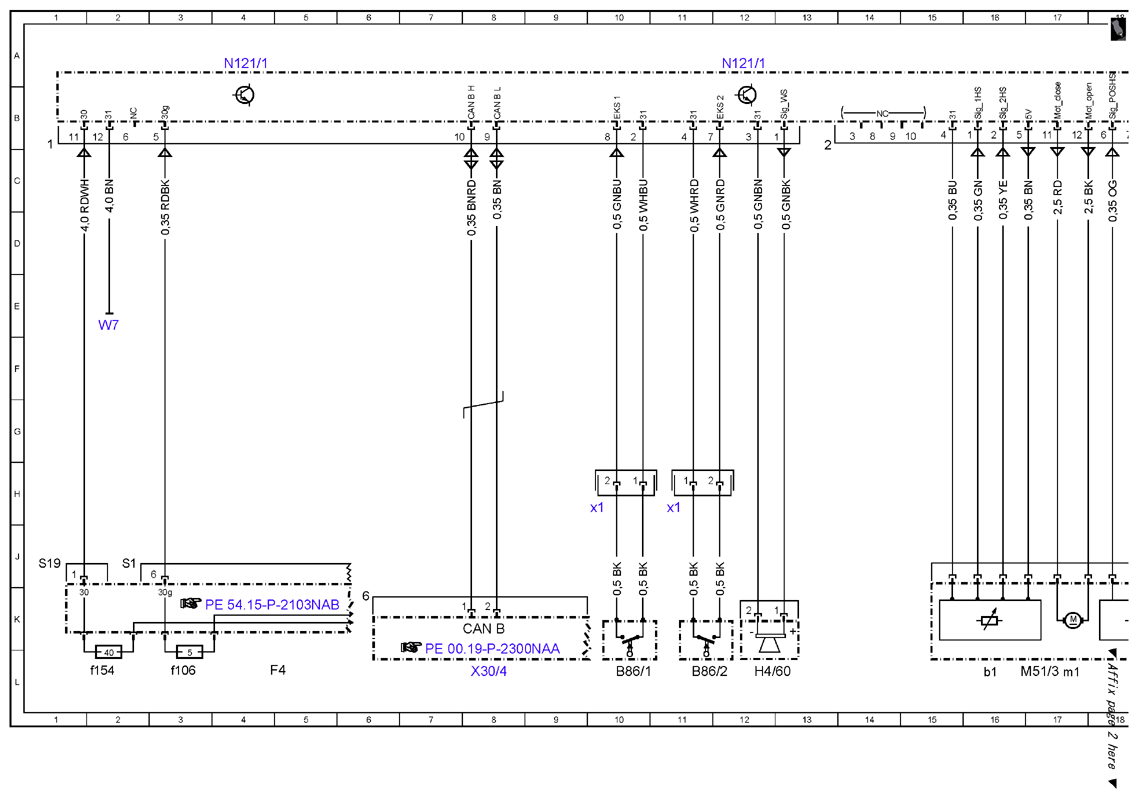

| N121/1 |
Tailgate control unit |
4A |
| N121/1 |
Tailgate control unit |
12A |
| W7 |
Right rear center section ground point |
2E |
| X30/4 |
Right potential distributor electrical connector (CAN) |
8L |
