| A0 |
Color code key |
23L |

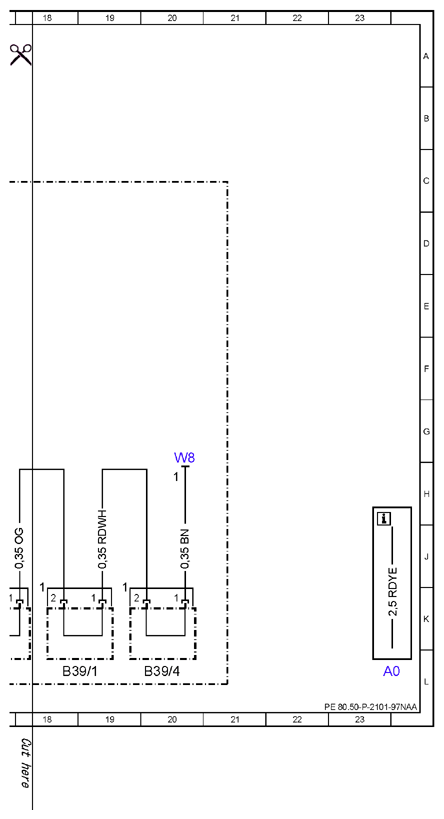

| B39 |
Left rear window glass breakage sensor |
17L |
| B39/1 |
Right rear window glass breakage sensor |
18L |
| B39/4 |
Rear window glass breakage sensor |
20L |
| CAN B |
Interior CAN |
13K |
| Code 882 |
Interior protection (only with ATA [EDW]) |
15C |
| F33 |
Battery compartment prefuse box |
3L |
| F33f49 |
Fuse 49 |
2L |
| F58 |
Engine compartment fuse and relay module |
7L |
| F58f203 |
Fuse 203 |
6L |
| H3/1 |
Alarm siren |
9L |

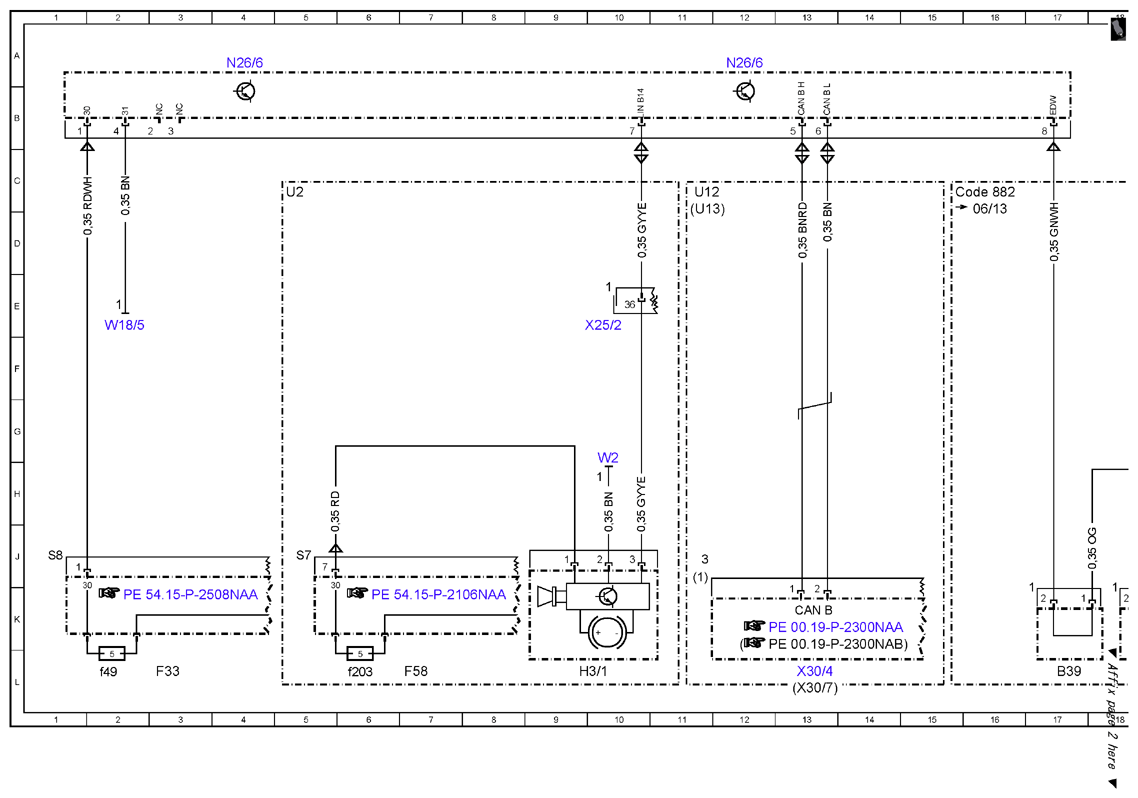

| N26/6 |
ATA [EDW]/towing sensor/interior motion sensor control unit |
4A |
| N26/6 |
ATA [EDW]/towing sensor/interior motion sensor control unit |
12A |
| U12 |
Valid for left-hand drive vehicles |
11C |
| U13 |
Valid for right-hand drive vehicles |
11D |
| U2 |
Valid for all except USA |
5C |
| W18/5 |
Roof ground point |
2E |
| W2 |
Right front ground point at lamp unit |
10H |
| W8 |
Liftgate ground point |
20H |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
10E |
| X30/4 |
Right potential distributor electrical connector (CAN) |
13L |
| X30/7 |
Left potential distributor electrical connector (CAN) |
13L |
