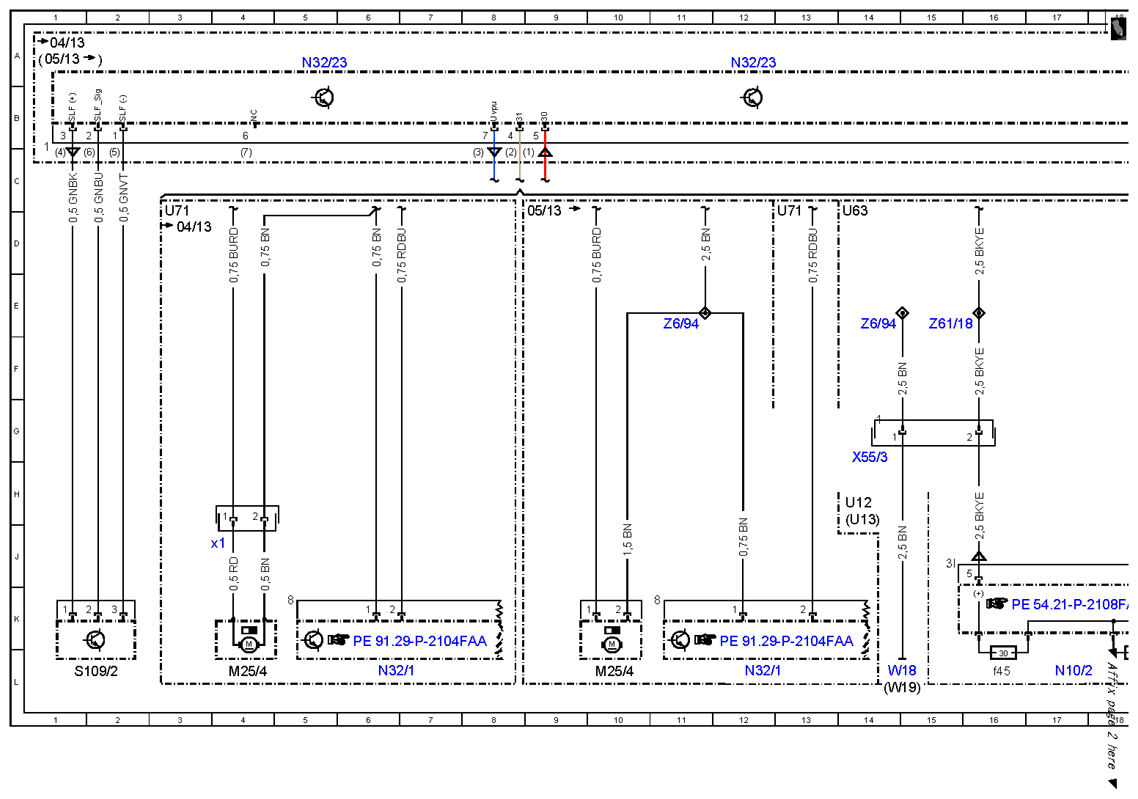

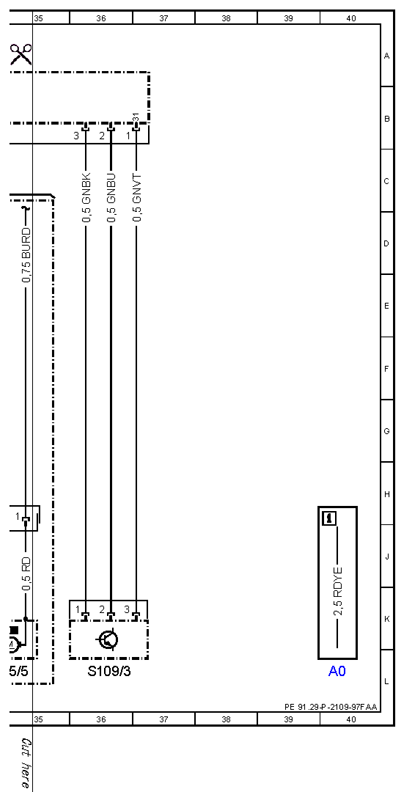

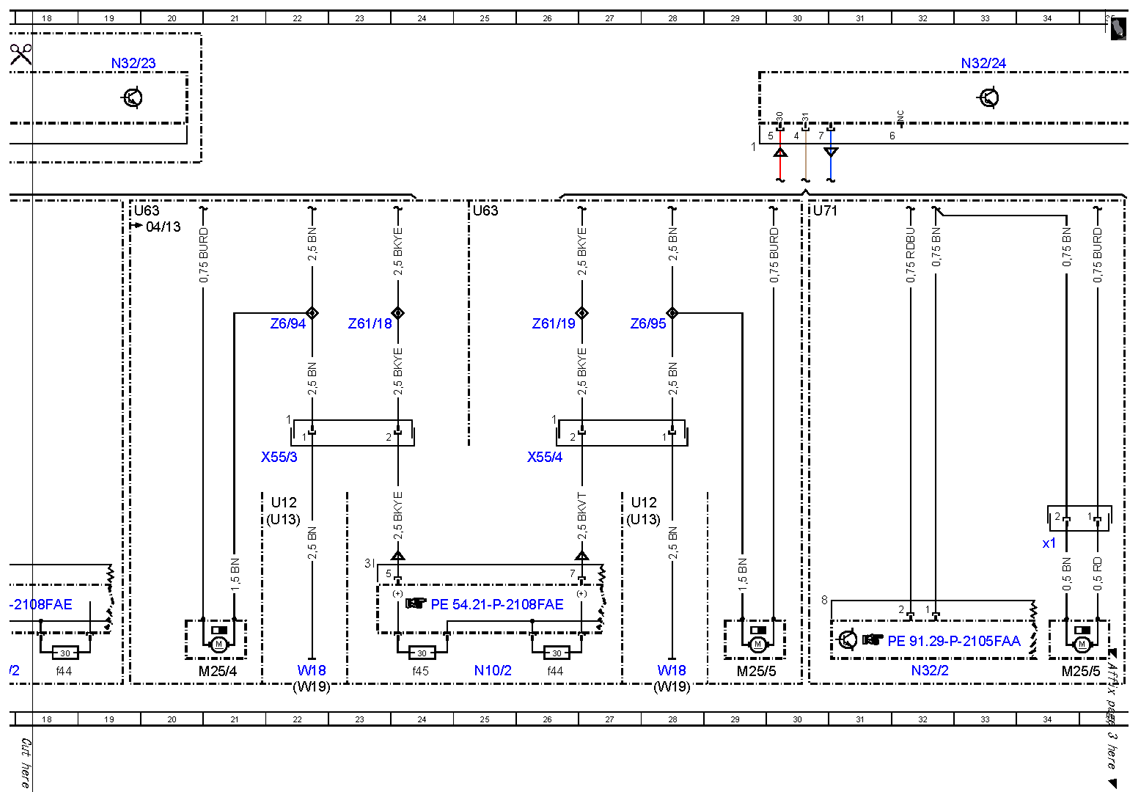

| A0 |
Color code key |
40L |
| M25/4 |
Driver seat lumbar support pneumatic pump |
4L |
| M25/4 |
Driver seat lumbar support pneumatic pump |
21L |
| M25/4 |
Driver seat lumbar support pneumatic pump |
10L |
| M25/4x1 |
Driver seat lumbar support pneumatic pump electrical connector |
4J |
| M25/5 |
Front passenger seat lumbar support pneumatic pump |
29L |
| M25/5 |
Front passenger seat lumbar support pneumatic pump |
34L |
| M25/5x1 |
Front passenger seat lumbar support pneumatic pump electrical connector |
34J |
| N10/2 |
Rear SAM control unit with fuse and relay module |
25L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
17L |
| N10/2f44 |
Fuse 44 |
26L |
| N10/2f44 |
Fuse 44 |
18L |
| N10/2f45 |
Fuse 45 |
24L |
| N10/2f45 |
Fuse 45 |
16L |
| N32/1 |
Driver seat control unit |
6L |
| N32/1 |
Driver seat control unit |
12L |
| N32/2 |
Front passenger seat control unit |
32L |
| N32/23 |
Driver seat lumbar support adjustment control unit |
5A |
| N32/23 |
Driver seat lumbar support adjustment control unit |
12A |
| N32/23 |
Driver seat lumbar support adjustment control unit |
19A |
| N32/24 |
Front passenger seat lumbar support adjustment control unit |
33A |
| S109/2 |
Driver seat lumbar support adjustment switch |
1L |
| S109/3 |
Front passenger seat lumbar support adjustment switch |
36L |
| U12 |
Valid for left-hand drive vehicles |
22H |
| U12 |
Valid for left-hand drive vehicles |
27H |
| U12 |
Valid for left-hand drive vehicles |
14H |
| U13 |
Valid for right-hand drive vehicles |
22H |
| U13 |
Valid for right-hand drive vehicles |
27H |
| U13 |
Valid for right-hand drive vehicles |
14H |
| U63 |
Valid for seat adjustment without memory function |
19D |
| U63 |
Valid for seat adjustment without memory function |
25D |
| U63 |
Valid for seat adjustment without memory function |
14D |
| U71 |
Valid for fully electric seat adjustment with memory function |
3D |
| U71 |
Valid for fully electric seat adjustment with memory function |
30D |
| U71 |
Valid for fully electric seat adjustment with memory function |
13D |
| W18 |
Left front seat crossmember ground point |
28L |
| W18 |
Left front seat crossmember ground point |
22L |
| W18 |
Left front seat crossmember ground point |
14L |
| W19 |
Right front seat crossmember ground point |
28L |
| W19 |
Right front seat crossmember ground point |
22L |
| W19 |
Right front seat crossmember ground point |
14L |
| X55/3 |
Driver seat connector block |
22H |
| X55/3 |
Driver seat connector block |
14H |
| X55/4 |
Front passenger seat connector block |
26H |
| Z6/94 |
Driver seat circuit 31 connector sleeve |
22E |
| Z6/94 |
Driver seat circuit 31 connector sleeve |
11E |
| Z6/94 |
Driver seat circuit 31 connector sleeve |
14E |
| Z6/95 |
Front passenger seat circuit 31 connector sleeve |
28E |
| Z61/18 |
Left seat circuit 15R connector sleeve |
23E |
| Z61/18 |
Left seat circuit 15R connector sleeve |
15E |
| Z61/19 |
Right seat circuit 15R connector sleeve |
26E |
