Pulling off rubber mount with grooved ball bearing - AR41.10-P-0100-07TX

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 172, 204, 207, 212, 218, 219, 231

Fig 1: Identifying Puller, Two-Arm (000 589 88 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Puller Arms (129 589 00 34 00)

Courtesy of MERCEDES-BENZ USA

Position two-armed puller with puller arms (see magnified section).
Pull rubber mount (7b) together with grooved ball bearing off linkage arm of the rear propeller shaft.

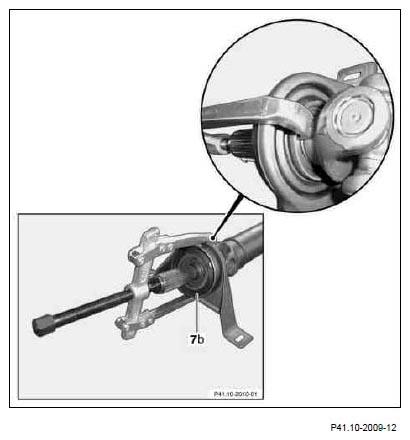

Fig 3: Pulling Rubber Mount Together With Grooved Ball Bearing Off Linkage Arm
Courtesy of MERCEDES-BENZ USA
