Brake system - inspect fluid level - AP42.10-P-4210TX
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 219.3
| Remove/install | |||
| Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes. | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| 1 | Open engine hood and raise to vertical position | AR88.40-P-1000TX | |

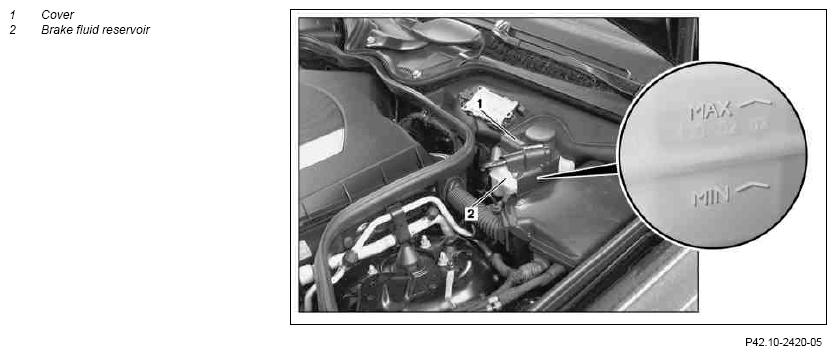

| 2 | Remove cover (1) from brake fluid reservoir (2) | ||
| Checking | |||
| 3 | Check fluid level in brake fluid reservoir (2) | If fluid level is too high, extract brake fluid down to "MAX" marking. If the fluid level is too low, determine cause and rectify subject to a separate invoice. |
|
| *BF42.10-P-1001-01F | |||
| 4 | Close engine hood | AR88.40-P-1000TX |
BRAKE FLUID
| Number | Designation | Model 219 | ||
|---|---|---|---|---|
| BF42.10-P-1001-01F | Brake fluid | Filling capacity | Liters | ≈1.4...2.25 |
| Specifications for Operating Fluids | Specification | |||
| DOT 4. See GENERAL BRAKE FLUID (https://bevo.mercedes-benz.com/index.php?language_id=1) | ||||
| Specification | ||||
| MB 331.0 brake fluid A 000 989 08 07 | ||||
