Brake system - inspect fluid level - AP42.10-P-4210GZ
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
Model 164, 166, 292

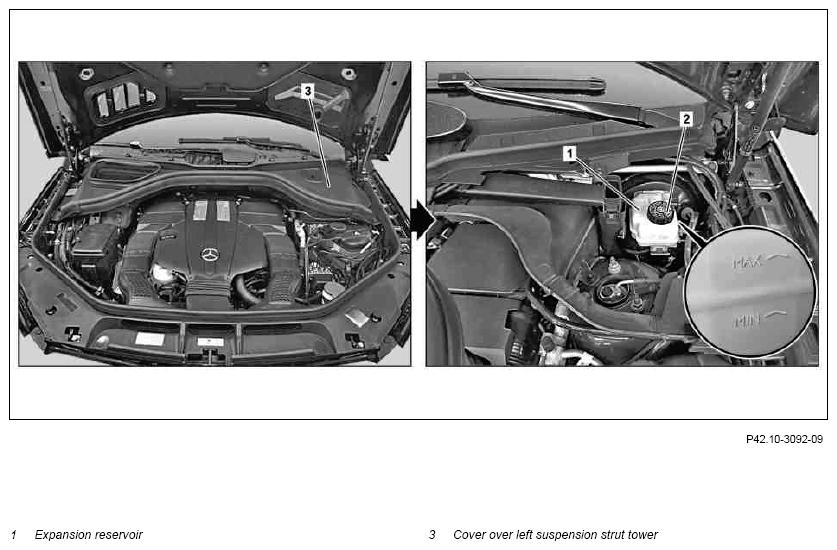

Shown in model 292

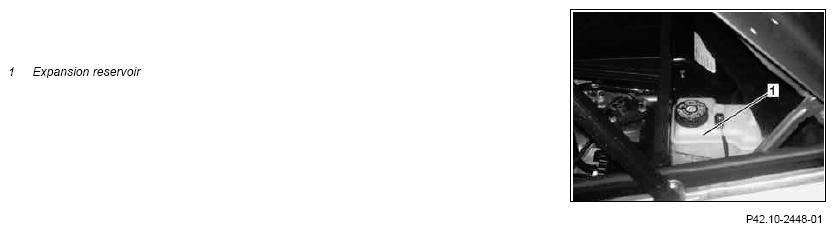

Shown in model 164
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Check | |||
| 1 | Remove cover over left suspension strut tower (3) | Model 166, 292 | |
| 2 | Check fluid level in expansion reservoir (1) | ||
| General brake fluid | DOT 4. See GENERAL BRAKE FLUID (https://bevo.mercedes-benz.com/index.php?language_id=1) | ||
| Brake fluids (DOT 4 plus) | MB 331.0 brake fluid A 000 989 08 07 | ||
If the fluid level is too low: ↓ Rectify problem subject to separate repair order. If the fluid level is too high: ↓ Extract brake fluid until the fluid level is at the "Max." mark. |
|||
| 3 | Install cover over left suspension strut tower (3) | Model 166, 292 |
