Remove/install flywheel/drive plate - AR03.30-P-8001FH
ENGINE 276 in MODEL 204
ENGINE 276, 278 in MODEL 207
| Remove/install | |||
| 1 | Remove automatic transmission with torque converter | ENGINE 276 in MODEL 204 ENGINE 276, 278 in MODEL 207 |
|
| TRANSMISSION 722.9 (except 722.96/997) in MODEL 204, 207 with ENGINE 276 | AR27.10-P-0500CV | ||
| TRANSMISSION 722.96 in MODEL 204.0/9 with ENGINE 276 TRANSMISSION 722.96 in MODEL 207.3 with ENGINE 276 |
AR27.10-P-0500CWX | ||
| 2 | Install retaining lock for crankshaft/starter ring gear | ENGINE 276 in MODEL 204 ENGINE 276, 278 in MODEL 207 |
|
| MODEL 204.05/25 with ENGINE 276 MODEL 207 with ENGINE 276, 278 |
AR03.30-P-5000CV | ||
| ENGINE 276 in MODEL 204.08/98 | AR03.30-P-5000CWX | ||

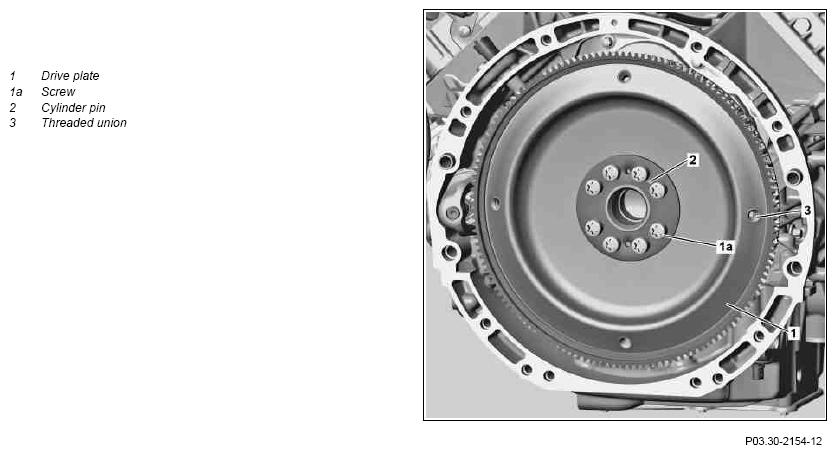

| 3 | Remove screw/bolts (1a) from drive plate (1) | AR03.30-P-8001-02MM | |
Do not use any impact wrench/driver or compressed air tool to screw the screw/bolts (1a) in and out. The thread in the crankshaft flange will be damaged otherwise. |
|||
| *BA03.30-P-1002-01M | |||
| Figure | |||
| Figure | |||
| 4 | Remove drive plate (1) from crankshaft flange | ||
| Check | |||
| 5 | Check threaded union (3) in drive plate (1) | For damaged or loose threaded unions (3): ↓ Install new drive plate (1). |
|
| 6 | Install in the reverse order | ||
| 7 | Perform default initialization and then sensor rotor adaptation using the diagnostic system | Only when replacing the clutch plate (1). | |
| AD00.00-P-2000-04A | |||
|
FLYWHEEL, DRIVE PLATE, VIBRATION DAMPER, STARTER RING GEAR
| Number | Designation | ENGINE 276 | ENGINE 278 | ||
|---|---|---|---|---|---|
| BA03.30-P-1002-01M | Bolt, starter ring gear/drive plate to crankshaft | Stage 1 | Nm | 20 | 20 |
| Stage 2 | Nm | 45 | 45 | ||
| Stage 3 | ∠° | 90 | 90 | ||
