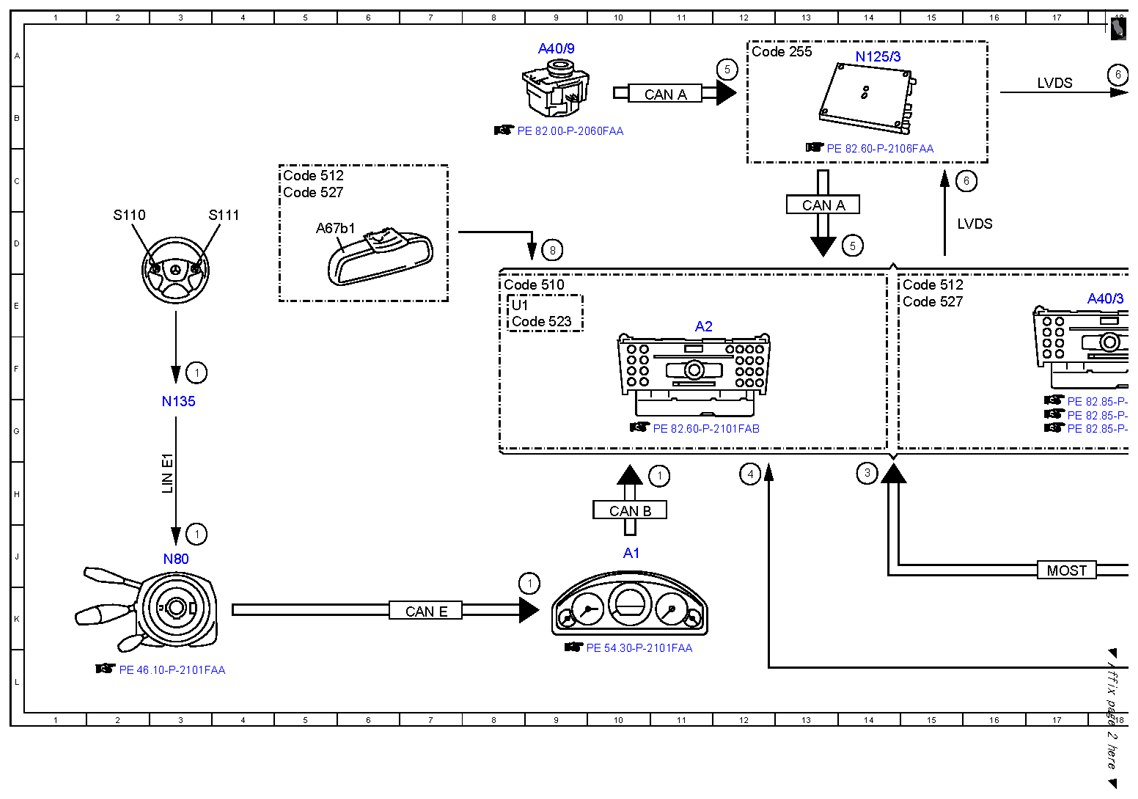

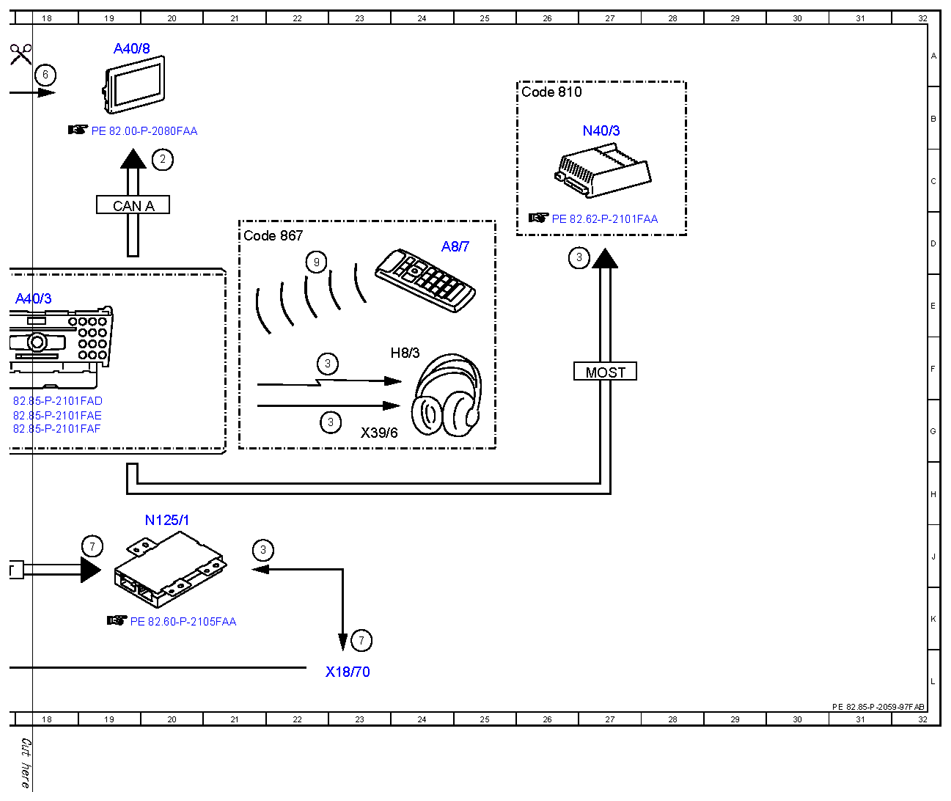

| 1 |
Multifunction steering wheel button group, signal |
3F |
| 1 |
Multifunction steering wheel button group, signal |
3J |
| 1 |
Multifunction steering wheel button group, signal |
9K |
| 1 |
Multifunction steering wheel button group, signal |
11H |
| 2 |
Switch-on request, signal |
20C |
| 3 |
Audio, signal |
14H |
| 3 |
Audio, signal |
21J |
| 3 |
Audio, signal |
26D |
| 3 |
Audio, signal |
22F |
| 3 |
Audio, signal |
23G |
| 4 |
Video, signal |
12H |
| 5 |
Audio/COMAND controller, request |
14D |
| 5 |
Audio/COMAND controller, request |
12A |
| 6 |
Audio/COMAND display, signal |
16C |
| 6 |
Audio/COMAND display, signal |
18A |
| 7 |
Operation, signal |
23K |
| 7 |
Operation, signal |
19J |
| 8 |
Voice input, signal |
9D |
| 9 |
Infrared, signal |
22D |
| A1 |
Instrument cluster |
10J |
| A2 |
Radio |
11E |
| A40/3 |
COMAND control unit |
17E |
| A40/8 |
Audio/COMAND display |
19A |
| A40/9 |
Audio/COMAND control panel |
9A |
| A67b1 |
Hands-free system microphone |
5D |
| A8/7 |
Remote control |
24D |
| CAN A |
Telematics CAN |
19C |
| CAN A |
Telematics CAN |
13C |
| CAN A |
Telematics CAN |
11B |
| CAN B |
Interior CAN |
10H |
| CAN E |
Chassis CAN |
7K |
| Code 255 |
AMG Performance Media |
12A |
| Code 510 |
Audio 20 with CD changer |
8E |
| Code 512 |
COMAND APS with DVD changer |
15E |
| Code 512 |
COMAND APS with DVD changer |
5C |
| Code 523 |
Audio 20 radio |
8E |
| Code 527 |
COMAND APS |
15E |
| Code 527 |
COMAND APS |
5C |
| Code 810 |
Sound system |
26B |
| Code 867 |
SPLITVIEW |
21D |
| H8/3 |
Radio frequency headphones |
24F |
| LIN E1 |
Steering LIN |
3H |
| LVDS |
Low voltage differential signal |
16D |
| LVDS |
Low voltage differential signal |
17B |
| MOST |
Media Oriented System Transport |
17J |
| MOST |
Media Oriented System Transport |
27F |
| N125/1 |
Media interface control unit |
20J |
| N125/3 |
AMG Performance Media control unit |
14A |
| N135 |
Steering wheel electronics |
3G |
| N40/3 |
Sound system amplifier control unit |
27B |
| N80 |
Steering column module control unit |
3J |
| S110 |
Left multifunction steering wheel button group |
2D |
| S111 |
Right multifunction steering wheel button group |
3D |
| U1 |
Valid for USA |
8E |
| X18/70 |
Media interface electrical connector |
23L |
| X39/6 |
Headphones electrical connector (cabled) |
23G |
