| 1 |
Circuit 15, status |
8H |
| 10 |
Wheel rotation direction, signal |
8E |
| 10 |
Wheel rotation direction, signal |
19E |
| 11 |
Steering angle, signal |
9E |
| 11 |
Steering angle, signal |
18G |
| 12 |
Voice output, signal |
4G |
| 12 |
Voice output, signal |
6H |
| 13 |
Instrument cluster, message |
12J |
| 14 |
Audio/COMAND controller, request |
5E |
| 2 |
Switch-on request, signal |
7C |
| 3 |
Audio/COMAND display, signal |
6C |
| 4 |
Multifunction steering wheel button group, signal |
8G |
| 4 |
Multifunction steering wheel button group, signal |
13K |
| 4 |
Multifunction steering wheel button group, signal |
19K |
| 5 |
Voice input, signal |
5F |
| 6 |
Vehicle interior noise level, signal |
4K |
| 7 |
Sound system amplifier, actuation |
6J |
| 8 |
GPS, signal |
8D |
| 8 |
GPS, signal |
11B |
| 8 |
GPS, signal |
14B |
| 9 |
Wheel speed, signal |
8E |
| 9 |
Wheel speed, signal |
19E |
| 9 |
Wheel speed, signal |
23D |
| A1 |
Instrument cluster |
12J |
| A2/5 |
Global positioning system antenna splitter |
13B |
| A28/11 |
Multifunction antenna |
15A |

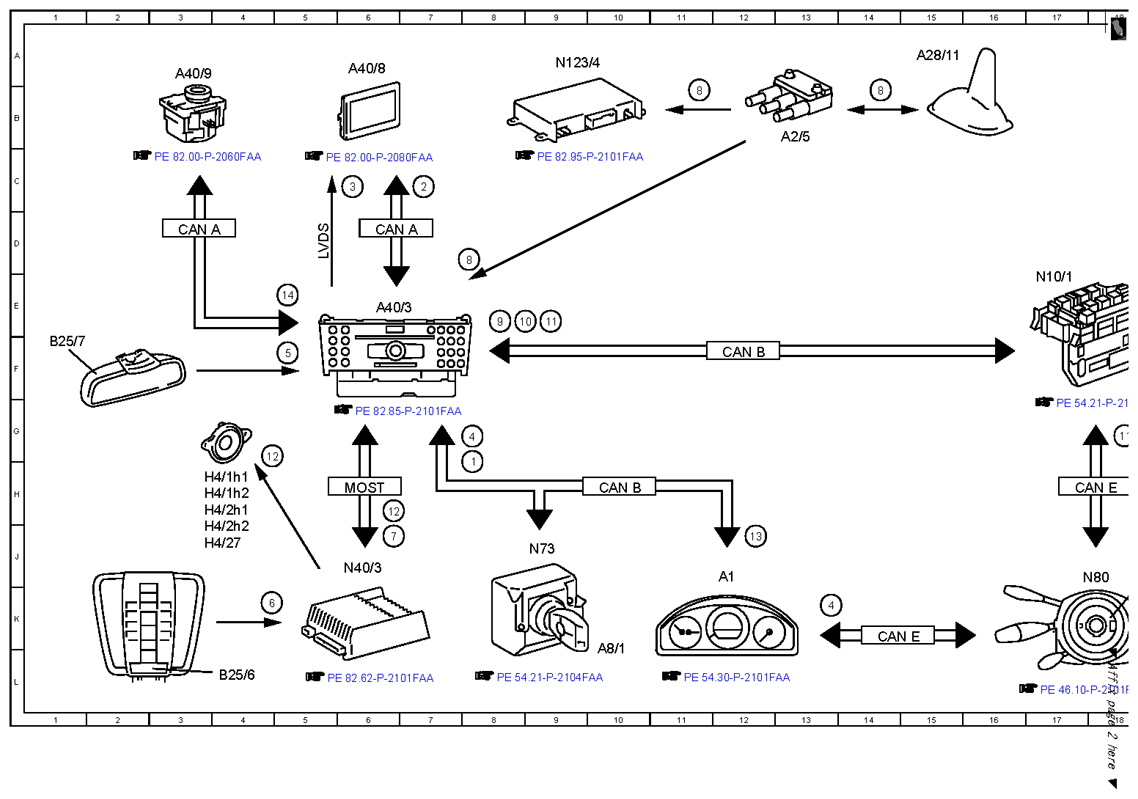

| A40/3 |
COMAND control unit |
6E |
| A40/8 |
Audio/COMAND display |
6A |
| A40/9 |
Audio/COMAND control panel |
3A |
| A8/1 |
Transmitter key |
10L |
| B25/6 |
Sound system microphone |
4L |
| B25/7 |
Voice control system microphone |
1F |
| CAN A |
Telematics CAN |
3D |
| CAN A |
Telematics CAN |
6D |
| CAN B |
Interior CAN |
10H |
| CAN B |
Interior CAN |
12F |
| CAN E |
Chassis CAN |
18H |
| CAN E |
Chassis CAN |
20F |
| CAN E |
Chassis CAN |
14K |
| H4/1h1 |
Left front door tweeter |
3H |
| H4/1h2 |
Left front door bass speaker |
3H |
| H4/27 |
Center instrument panel speaker |
3J |
| H4/2h1 |
Right front door tweeter |
3H |
| H4/2h2 |
Right front door bass speaker |
3J |

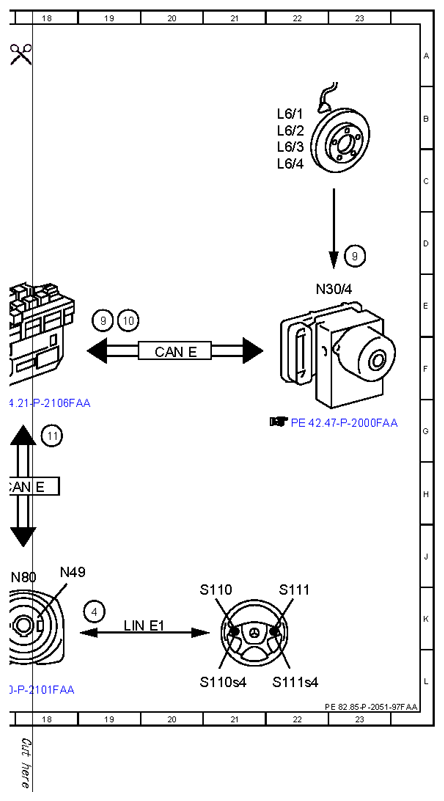

| L6/1 |
Left front axle rpm sensor |
22B |
| L6/2 |
Right front axle rpm sensor |
22B |
| L6/3 |
Left rear axle rpm sensor |
22C |
| L6/4 |
Right rear axle rpm sensor |
22C |
| LIN E1 |
Steering LIN |
19K |
| MOST |
Media Oriented System Transport |
6H |
| N10/1 |
Front SAM control unit with fuse and relay module |
17E |
| N123/4 |
Emergency call system control unit |
9A |
| N30/4 |
Electronic Stability Program control unit |
22E |
| N40/3 |
Sound system amplifier control unit |
6J |
| N49 |
Steering angle sensor |
18J |
| N73 |
Electronic ignition switch control unit |
9J |
| N80 |
Steering column module control unit |
17J |
| S110 |
Left multifunction steering wheel button group |
20K |
| S110s4 |
"Back" and voice control system OFF button |
20L |
| S111 |
Right multifunction steering wheel button group |
22K |
| S111s4 |
Voice control system ON button |
22L |
