| 1 |
Telephone, signal |
23K |
| 1 |
Telephone, signal |
14J |
| 1 |
Telephone, signal |
19K |
| 1 |
Telephone, signal |
20H |
| 1 |
Telephone, signal |
29G |
| 1 |
Telephone, signal |
25F |
| 1 |
Telephone, signal |
32G |
| 1 |
Telephone, signal |
29D |
| 2 |
Audio/COMAND controller, request |
10D |
| 3 |
Audio/COMAND display, signal |
14C |
| 3 |
Audio/COMAND display, signal |
17A |
| 4 |
Sound system amplifier, actuation |
10H |
| 5 |
Multifunction steering wheel button group, signal |
16D |
| 5 |
Multifunction steering wheel button group, signal |
34F |
| 5 |
Multifunction steering wheel button group, signal |
34D |
| 5 |
Multifunction steering wheel button group, signal |
28B |
| 6 |
Instrument cluster, message |
25B |
| 7 |
Voice input, signal |
7D |
| 8 |
Switch-on request, signal |
23G |
| 8 |
Switch-on request, signal |
26L |
| 9 |
Infrared, signal |
3C |

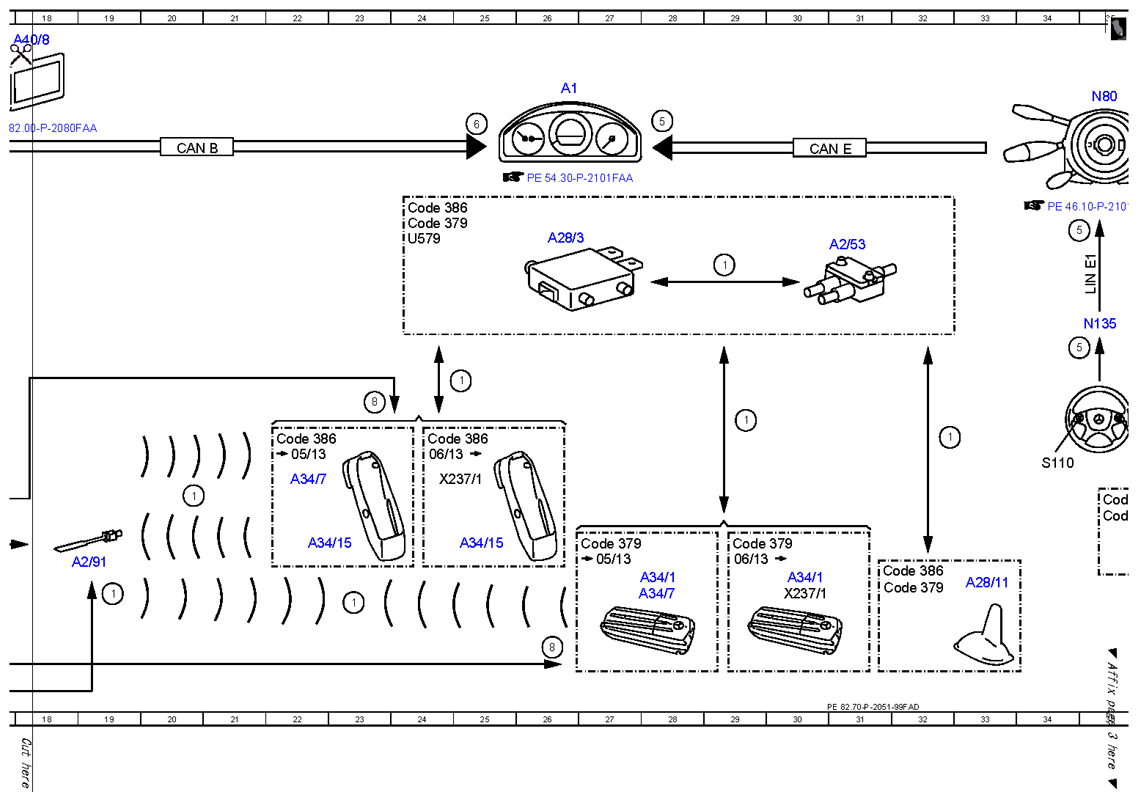

| A1 |
Instrument cluster |
26B |

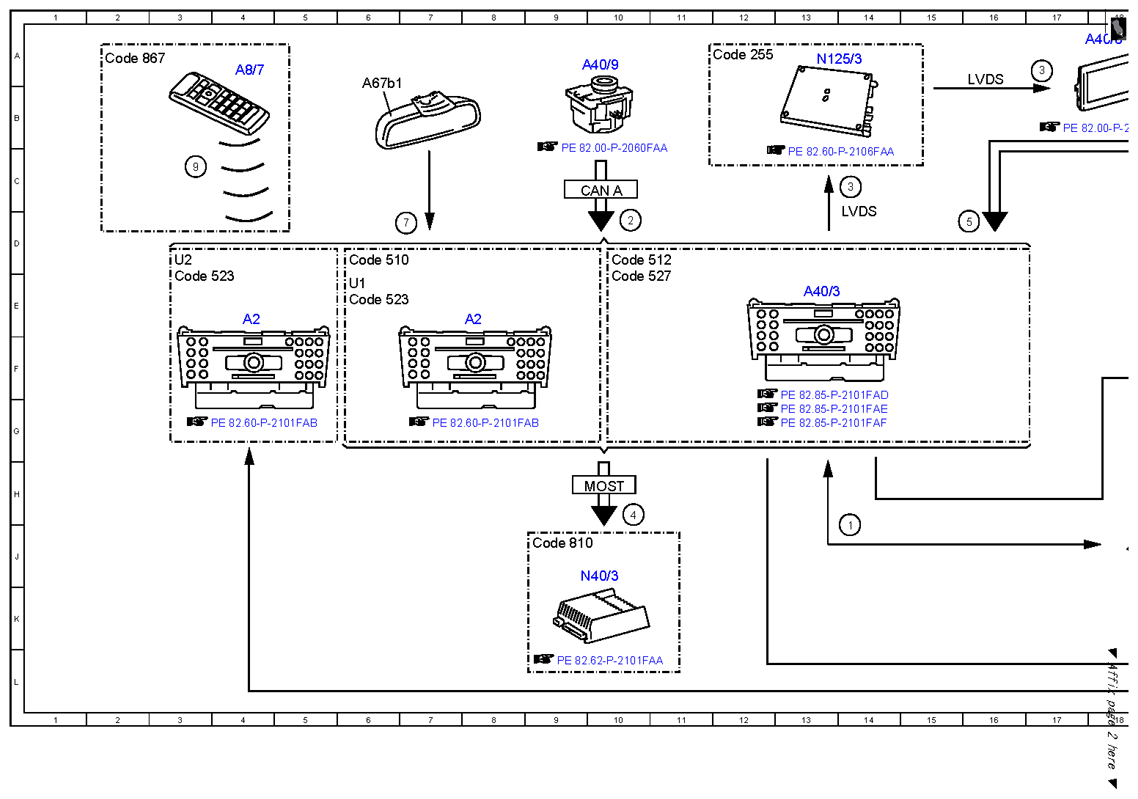

| A2 |
Radio |
4E |
| A2 |
Radio |
8E |
| A2/53 |
Mobile phone and stationary heater radio remote control antenna splitter |
31D |
| A2/91 |
Bluetooth antenna |
18J |
| A28/11 |
Multifunction antenna |
33K |
| A28/3 |
Cellular telephone system antenna amplifier/compensator |
26D |
| A34/1 |
Telephone module with Bluetooth® (SAP profile) |
28J |
| A34/1 |
Telephone module with Bluetooth® (SAP profile) |
30J |
| A34/15 |
Mobile phone holder |
22J |
| A34/15 |
Mobile phone holder |
25J |
| A34/7 |
Bluetooth module |
22H |
| A34/7 |
Bluetooth module |
28K |
| A40/3 |
COMAND control unit |
13E |
| A40/8 |
Audio/COMAND display |
17A |
| A40/9 |
Audio/COMAND control panel |
9A |
| A67b1 |
Hands-free system microphone |
6B |
| A8/7 |
Remote control |
4A |
| CAN A |
Telematics CAN |
10C |
| CAN B |
Interior CAN |
20C |
| CAN E |
Chassis CAN |
30C |
| Code 255 |
AMG Performance Media |
12A |
| Code 379 |
Telephone module with Bluetooth SAP |
24D |
| Code 379 |
Telephone module with Bluetooth SAP |
31K |
| Code 379 |
Telephone module with Bluetooth SAP |
29J |
| Code 379 |
Telephone module with Bluetooth SAP |
27J |
| Code 386 |
Mobile phone |
24D |
| Code 386 |
Mobile phone |
22G |
| Code 386 |
Mobile phone |
31J |
| Code 386 |
Mobile phone |
24G |
| Code 510 |
Audio 20 with CD changer |
6D |
| Code 512 |
COMAND APS with DVD changer |
10D |
| Code 512 |
COMAND APS with DVD changer |
35H |
| Code 523 |
Audio 20 radio |
3E |
| Code 523 |
Audio 20 radio |
6E |
| Code 527 |
COMAND APS |
10E |
| Code 527 |
COMAND APS |
35H |
| Code 810 |
Sound system |
9J |
| Code 867 |
SPLITVIEW |
2A |
| LIN E1 |
Steering LIN |
35E |
| LVDS |
Low voltage differential signal |
14D |
| LVDS |
Low voltage differential signal |
16A |
| MOST |
Media Oriented System Transport |
10H |
| N125/3 |
AMG Performance Media control unit |
13A |
| N135 |
Steering wheel electronics |
35E |
| N40/3 |
Sound system amplifier control unit |
10J |
| N80 |
Steering column module control unit |
35B |
| S110 |
Left multifunction steering wheel button group |
34H |

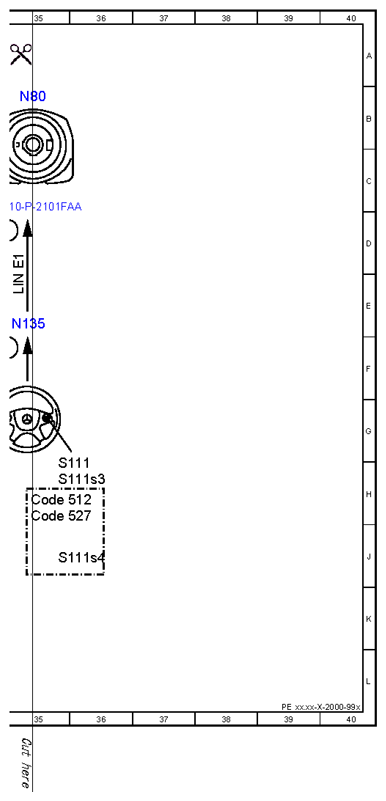

| S111 |
Right multifunction steering wheel button group |
35H |
| S111s3 |
Accept/terminate phone call button |
35H |
| S111s4 |
Voice control system ON button |
35J |
| U1 |
Valid for USA |
6E |
| U2 |
Valid for all except USA |
3D |
| U579 |
Valid for stationary heater |
24D |
| X237/1 |
Mobile phone contact plate |
24H |
| X237/1 |
Mobile phone contact plate |
30K |
