| 1 |
Multifunction steering wheel button group, signal |
9H |
| 1 |
Multifunction steering wheel button group, signal |
7K |
| 1 |
Multifunction steering wheel button group, signal |
2J |
| 1 |
Multifunction steering wheel button group, signal |
2F |
| 10 |
Audio, signal |
21E |
| 10 |
Audio, signal |
18F |
| 10 |
Audio, signal |
18G |
| 11 |
Infrared, signal |
17D |
| 2 |
Switch-on request, signal |
15C |
| 2 |
Switch-on request, signal |
21D |
| 2 |
Switch-on request, signal |
23L |
| 3 |
Audio/COMAND controller, request |
8E |
| 3 |
Audio/COMAND controller, request |
7B |
| 4 |
Voice input, signal |
16H |
| 5 |
Audio/COMAND display, signal |
11D |
| 6 |
SDAR, communication |
11H |
| 6 |
SDAR, communication |
22L |
| 8 |
RTTD signal |
26K |
| 9 |
SDAR antenna, signal |
27K |

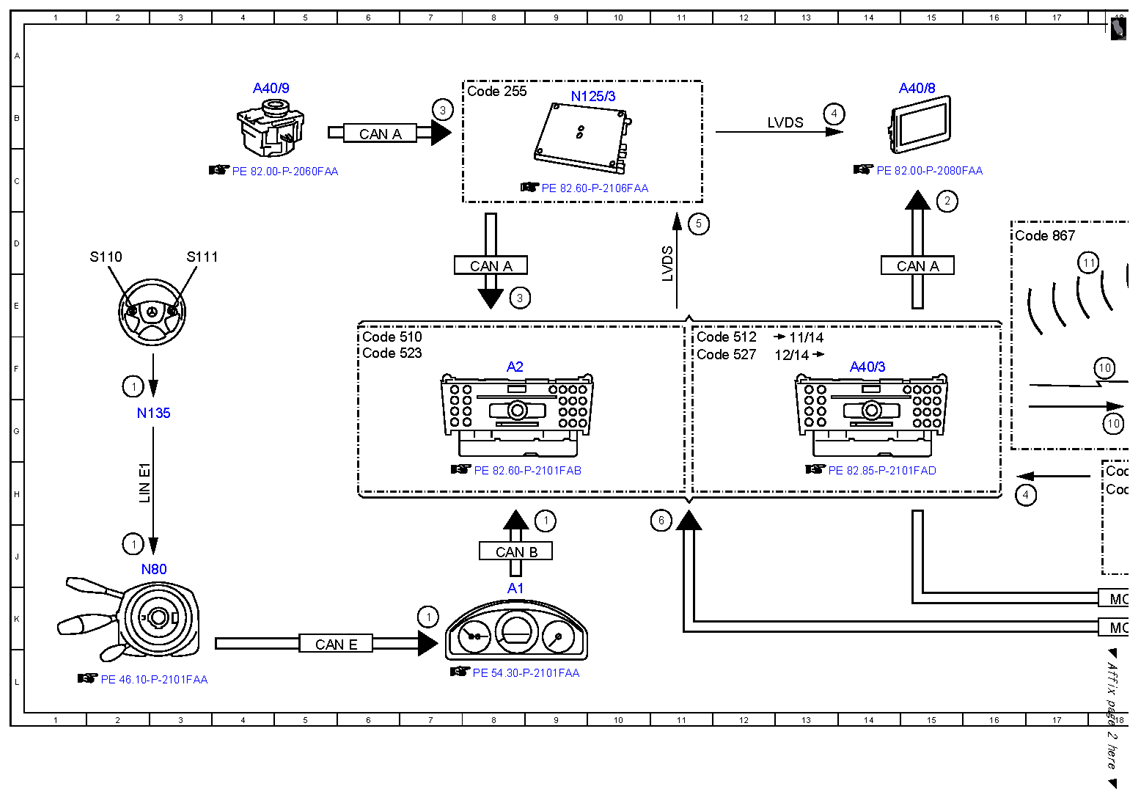

| A1 |
Instrument cluster |
8K |
| A2 |
Radio |
8F |
| A28/11 |
Multifunction antenna |
28J |
| A40/3 |
COMAND control unit |
14F |
| A40/8 |
Audio/COMAND display |
14B |
| A40/9 |
Audio/COMAND control panel |
4B |
| A67b1 |
Hands-free system microphone |
19H |
| A8/7 |
Remote control |
20D |
| CAN A |
Telematics CAN |
15D |
| CAN A |
Telematics CAN |
8D |
| CAN A |
Telematics CAN |
6B |
| CAN B |
Interior CAN |
8J |
| CAN E |
Chassis CAN |
5K |
| Code 255 |
AMG Performance Media |
8B |
| Code 510 |
Audio 20 with CD changer |
6F |
| Code 512 |
COMAND APS with DVD changer |
11F |
| Code 512 |
COMAND APS with DVD changer |
18H |
| Code 523 |
Audio 20 radio |
6F |
| Code 527 |
COMAND APS |
11F |
| Code 527 |
COMAND APS |
18H |

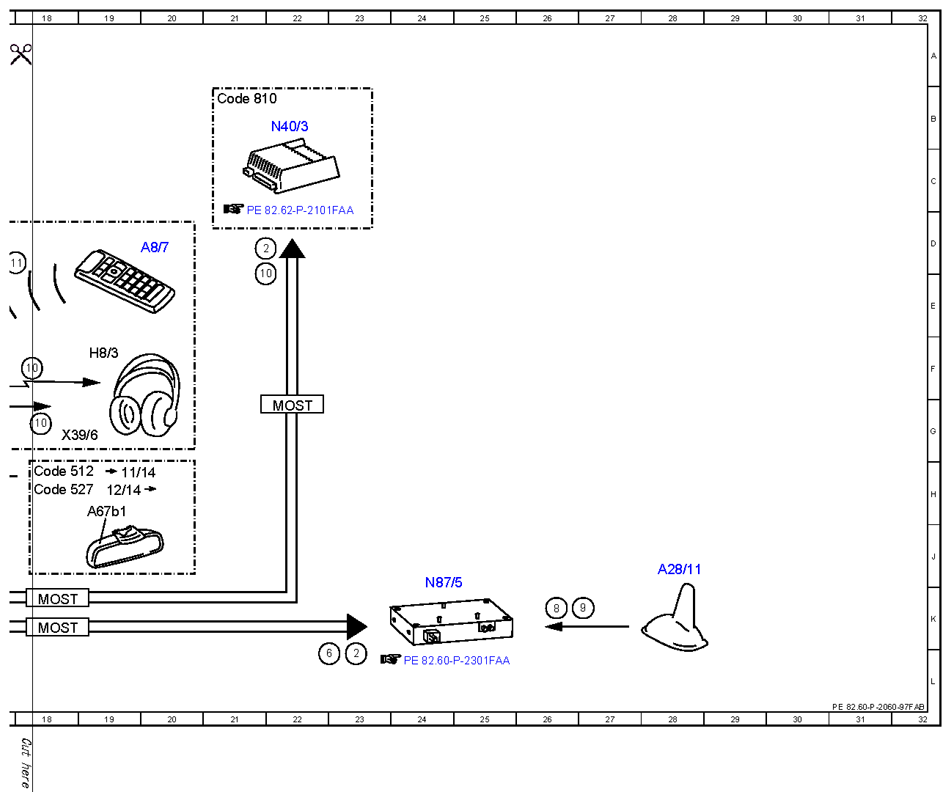

| Code 810 |
Sound system |
21B |
| Code 867 |
SPLITVIEW |
16D |
| H8/3 |
Radio frequency headphones |
19F |
| LIN E1 |
Steering LIN |
2H |
| LVDS |
Low voltage differential signal |
11D |
| LVDS |
Low voltage differential signal |
13B |
| MOST |
Media Oriented System Transport |
18K |
| MOST |
Media Oriented System Transport |
22G |
| MOST |
Media Oriented System Transport |
18K |
| N125/3 |
AMG Performance Media control unit |
9B |
| N135 |
Steering wheel electronics |
2G |
| N40/3 |
Sound system amplifier control unit |
22B |
| N80 |
Steering column module control unit |
2J |
| N87/5 |
Satellite digital audio radio (SDAR) control unit |
24J |
| S110 |
Left multifunction steering wheel button group |
2D |
| S111 |
Right multifunction steering wheel button group |
3D |
| X39/6 |
Headphones electrical connector (cabled) |
18G |
