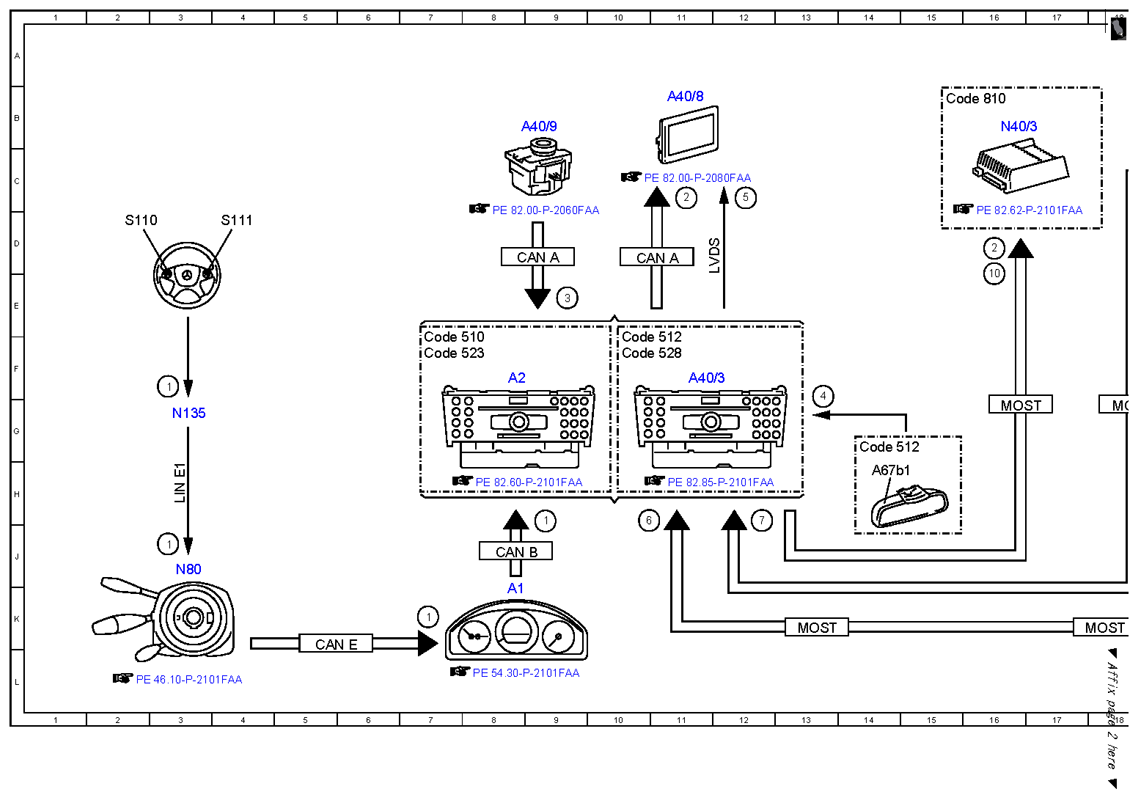

| 1 |
Multifunction steering wheel button group, signal |
9H |
| 1 |
Multifunction steering wheel button group, signal |
7K |
| 1 |
Multifunction steering wheel button group, signal |
3J |
| 1 |
Multifunction steering wheel button group, signal |
3F |
| 10 |
Audio, signal |
16E |
| 2 |
Switch-on request, signal |
11C |
| 2 |
Switch-on request, signal |
20C |
| 2 |
Switch-on request, signal |
16D |
| 2 |
Switch-on request, signal |
20G |
| 3 |
Audio/COMAND controller, request |
9E |
| 4 |
Voice input, signal |
13G |
| 5 |
Audio/COMAND display, signal |
12C |

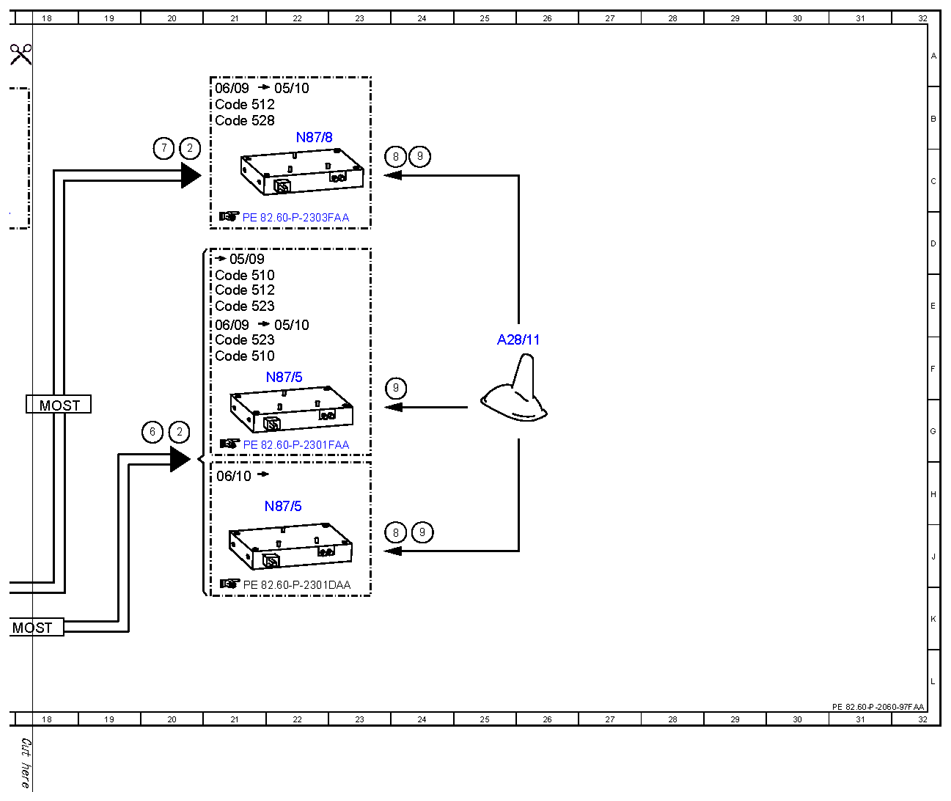

| 6 |
SDAR, communication |
10H |
| 6 |
SDAR, communication |
20G |
| 7 |
Satellite digital audio radio/hard drive combination tuner, communication |
12H |
| 7 |
Satellite digital audio radio/hard drive combination tuner, communication |
20C |
| 8 |
RTTD signal |
24C |
| 8 |
RTTD signal |
24J |
| 9 |
SDAR antenna, signal |
24F |
| 9 |
SDAR antenna, signal |
24C |
| 9 |
SDAR antenna, signal |
24J |
| A1 |
Instrument cluster |
8K |
| A2 |
Radio |
8F |
| A28/11 |
Multifunction antenna |
25F |
| A40/3 |
COMAND control unit |
11F |
| A40/8 |
Audio/COMAND display |
11B |
| A40/9 |
Audio/COMAND control panel |
8B |
| A67b1 |
Hands-free system microphone |
14H |
| CAN A |
Telematics CAN |
10D |
| CAN A |
Telematics CAN |
9D |
| CAN B |
Interior CAN |
8J |
| CAN E |
Chassis CAN |
5K |
| Code 510 |
Audio 20 with CD changer |
7F |
| Code 510 |
Audio 20 with CD changer |
21E |
| Code 510 |
Audio 20 with CD changer |
21F |
| Code 512 |
COMAND APS with DVD changer |
10F |
| Code 512 |
COMAND APS with DVD changer |
21B |
| Code 512 |
COMAND APS with DVD changer |
21E |
| Code 512 |
COMAND APS with DVD changer |
14G |
| Code 523 |
Audio 20 radio |
21F |
| Code 523 |
Audio 20 radio |
21E |
| Code 523 |
Audio 20 radio |
7F |
| Code 528 |
COMAND with DVD changer |
10F |
| Code 528 |
COMAND with DVD changer |
21B |
| Code 810 |
Sound system |
15B |
| LIN E1 |
Steering LIN |
3H |
| LVDS |
Low voltage differential signal |
12D |
| MOST |
Media Oriented System Transport |
18G |
| MOST |
Media Oriented System Transport |
13K |
| MOST |
Media Oriented System Transport |
16G |
| MOST |
Media Oriented System Transport |
18K |
| N135 |
Steering wheel electronics |
3G |
| N40/3 |
Sound system amplifier control unit |
16B |
| N80 |
Steering column module control unit |
3J |
| N87/5 |
Satellite digital audio radio (SDAR) control unit |
22F |
| N87/5 |
Satellite digital audio radio (SDAR) control unit |
22H |
| N87/8 |
SDAR control unit/high definition tuner |
22B |
| S110 |
Left multifunction steering wheel button group |
2D |
| S111 |
Right multifunction steering wheel button group |
4D |
