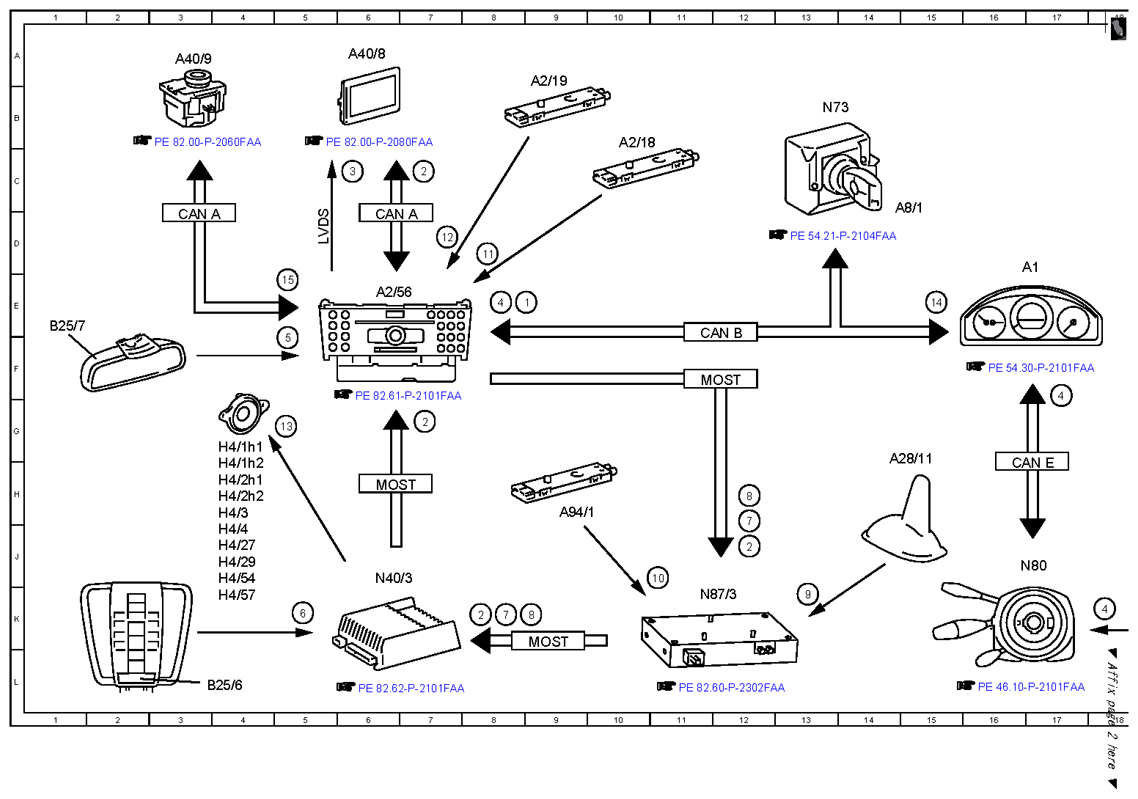

| 1 |
Circuit 15, status |
8E |
| 10 |
Band III antenna, signal |
11J |
| 11 |
AM/FM antenna, signal |
8D |
| 12 |
FM antenna, signal |
7D |
| 13 |
Speaker, actuation |
5G |
| 14 |
Instrument cluster, message |
15E |
| 15 |
Audio/COMAND controller, request |
5E |
| 2 |
Switch-on request, signal |
8K |
| 2 |
Switch-on request, signal |
12J |
| 2 |
Switch-on request, signal |
7C |
| 2 |
Switch-on request, signal |
7G |
| 3 |
Audio/COMAND display, signal |
6C |
| 4 |
Multifunction steering wheel button group, signal |
8E |
| 4 |
Multifunction steering wheel button group, signal |
18K |
| 4 |
Multifunction steering wheel button group, signal |
17G |
| 5 |
Voice input, signal |
5F |
| 6 |
Vehicle interior noise level, signal |
5K |
| 7 |
DAB, communication |
8K |
| 7 |
DAB, communication |
12J |
| 8 |
Sound system amplifier, actuation |
9K |
| 8 |
Sound system amplifier, actuation |
12H |
| 9 |
L-band antenna, signal |
13K |
| A1 |
Instrument cluster |
16D |
| A2/18 |
FM, AM and CL [ZV] antenna amplifier |
10B |
| A2/19 |
Rear window antenna FM antenna amplifier |
9A |
| A2/56 |
Radio with auto pilot system |
6E |
| A28/11 |
Multifunction antenna |
14H |
| A40/8 |
Audio/COMAND display |
6A |
| A40/9 |
Audio/COMAND control panel |
3A |
| A8/1 |
Transmitter key |
15D |
| A94/1 |
TV 1 and DAB band III antenna |
9H |
| B25/6 |
Sound system microphone |
3L |
| B25/7 |
Voice control system microphone |
1E |
| CAN A |
Telematics CAN |
3D |
| CAN A |
Telematics CAN |
6D |
| CAN B |
Interior CAN |
11E |
| CAN E |
Chassis CAN |
17G |
| H4/1h1 |
Left front door tweeter |
4G |
| H4/1h2 |
Left front door bass speaker |
4H |
| H4/27 |
Center instrument panel speaker |
4J |
| H4/29 |
Bass speaker |
4J |
| H4/2h1 |
Right front door tweeter |
4H |
| H4/2h2 |
Right front door bass speaker |
4H |
| H4/3 |
Left rear door speaker |
4H |
| H4/4 |
Right rear door speaker |
4J |
| H4/54 |
Left rear surround speaker |
4J |
| H4/57 |
Right rear surround speaker |
4K |

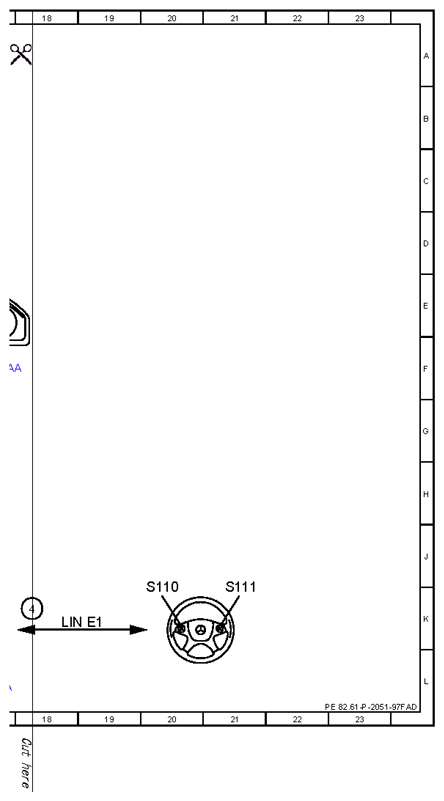

| LIN E1 |
Steering LIN |
18K |
| MOST |
Media Oriented System Transport |
6H |
| MOST |
Media Oriented System Transport |
9K |
| MOST |
Media Oriented System Transport |
12F |
| N40/3 |
Sound system amplifier control unit |
6J |
| N73 |
Electronic ignition switch control unit |
13B |
| N80 |
Steering column module control unit |
16J |
| N87/3 |
Digital Audio Broadcasting control unit |
11K |
| S110 |
Left multifunction steering wheel button group |
20K |
| S111 |
Right multifunction steering wheel button group |
21K |
