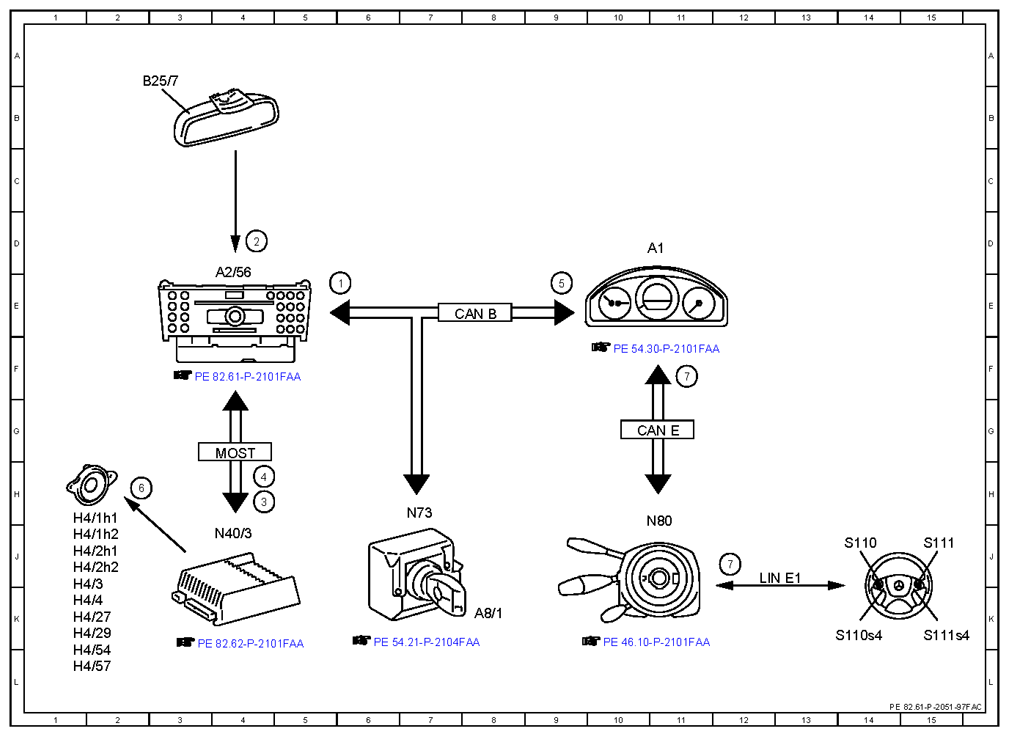

| 1 |
Circuit 15, status |
6E |
| 2 |
Voice input, signal |
4D |
| 3 |
Sound system amplifier, actuation |
4H |
| 4 |
Audio applications, signal |
4H |
| 5 |
Instrument cluster, message |
9E |
| 6 |
Speaker, actuation |
2H |
| 7 |
Multifunction steering wheel button group, signal |
12J |
| 7 |
Multifunction steering wheel button group, signal |
11F |
| A1 |
Instrument cluster |
10D |
| A2/56 |
Radio with auto pilot system |
4E |
| A8/1 |
Transmitter key |
8K |
| B25/7 |
Voice control system microphone |
3A |
| CAN B |
Interior CAN |
8E |
| CAN E |
Chassis CAN |
10G |
| H4/1h1 |
Left front door tweeter |
1H |
| H4/1h2 |
Left front door bass speaker |
1J |
| H4/27 |
Center instrument panel speaker |
1K |
| H4/29 |
Bass speaker |
1K |
| H4/2h1 |
Right front door tweeter |
1J |
| H4/2h2 |
Right front door bass speaker |
1J |
| H4/3 |
Left rear door speaker |
1K |
| H4/4 |
Right rear door speaker |
1K |
| H4/54 |
Left rear surround speaker |
1L |
| H4/57 |
Right rear surround speaker |
1L |
| LIN E1 |
Steering LIN |
12J |
| MOST |
Media Oriented System Transport |
4G |
| N40/3 |
Sound system amplifier control unit |
4J |
| N73 |
Electronic ignition switch control unit |
7H |
| N80 |
Steering column module control unit |
10J |
| S110 |
Left multifunction steering wheel button group |
14J |
| S110s4 |
"Back" and voice control system OFF button |
13K |
| S111 |
Right multifunction steering wheel button group |
15J |
| S111s4 |
Voice control system ON button |
15K |
