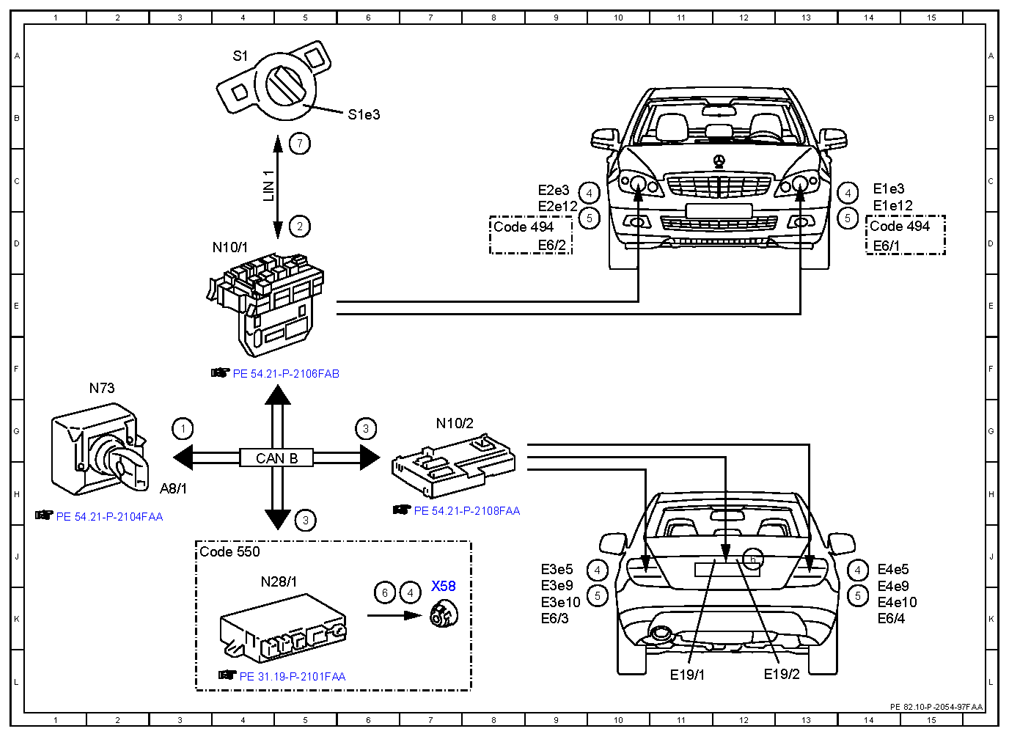

| 1 |
Circuit 15, status |
3G |
| 2 |
Exterior lights switch, status |
5D |
| 3 |
Standing and parking lights, request |
6G |
| 3 |
Standing and parking lights, request |
5H |
| 4 |
Standing and parking lights, actuation |
7K |
| 4 |
Standing and parking lights, actuation |
10J |
| 4 |
Standing and parking lights, actuation |
14J |
| 4 |
Standing and parking lights, actuation |
10C |
| 4 |
Standing and parking lights, actuation |
14C |
| 5 |
Side-marker lamp, actuation |
10K |
| 5 |
Side-marker lamp, actuation |
14K |
| 5 |
Side-marker lamp, actuation |
10D |
| 5 |
Side-marker lamp, actuation |
14D |
| 6 |
License plate lamp, actuation |
6K |
| 6 |
License plate lamp, actuation |
12J |
| 7 |
Standing lights indicator lamp, actuation |
5B |
| A8/1 |
Transmitter key |
3H |
| CAN B |
Interior CAN |
|
| Code 494 |
USA version |
|
| Code 494 |
USA version |
|
| Code 550 |
Trailer hitch |
|
| E19/1 |
Left license plate lamp |
11L |
| E19/2 |
Right license plate lamp |
12L |
| E1e12 |
Left front standing light 2 |
14C |
| E1e3 |
Left front standing and parking lamp |
14C |
| E2e12 |
Right front standing light 2 |
9C |
| E2e3 |
Right front standing and parking lamp |
9C |
| E3e10 |
Inner left stop lamp and taillamp |
9K |
| E3e5 |
Left rear fog lamp |
9J |
| E3e9 |
Left stop lamp and taillamp and parking lamp |
9K |
| E4e10 |
Inner right brake light and taillight |
14K |
| E4e5 |
Right rear fog lamp |
14J |
| E4e9 |
Right stop lamp and taillamp and parking lamp |
14K |
| E6/1 |
Left front side-marker lamp |
14D |
| E6/2 |
Right front side-marker lamp |
9D |
| E6/3 |
Left rear side-marker lamp |
9K |
| E6/4 |
Right rear side-marker lamp |
14K |
| LIN 1 |
Instrument panel LIN |
|
| N10/1 |
Front SAM control unit with fuse and relay module |
4D |
| N10/2 |
Rear SAM control unit with fuse and relay module |
7G |
| N28/1 |
Trailer recognition control unit |
4J |
| N73 |
Electronic ignition switch control unit |
2F |
| S1 |
Exterior lights switch |
4A |
| S1e3 |
Standing lamps indicator lamp |
6B |
| X58 |
Trailer socket |
7K |
