| 1 |
Low beams, request |
4D |
| 1 |
Low beams, request |
8D |
| 1 |
Low beams, request |
11D |
| 1 |
Low beams, request |
22D |
| 10 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
5G |
| 10 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
13K |
| 10 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
2E |
| 10 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
6D |
| 11 |
Synchronization, signal |
6C |
| 12 |
Active curve illumination actuator motor, actuation |
14B |
| 12 |
Active curve illumination actuator motor, actuation |
19B |
| 13 |
Headlamp range adjustment actuator motor, actuation |
14B |
| 13 |
Headlamp range adjustment actuator motor, actuation |
19B |
| 2 |
Engine running, signal |
2D |
| 2 |
Engine running, signal |
5F |
| 2 |
Engine running, signal |
7D |
| 3 |
Drivetrain operational, signal |
2D |
| 3 |
Drivetrain operational, signal |
5F |
| 3 |
Drivetrain operational, signal |
6D |
| 4 |
Enable, signal |
10C |
| 4 |
Enable, signal |
22B |
| 5 |
Xenon bulb with integrated ignition module, actuation |
14D |
| 5 |
Xenon bulb with integrated ignition module, actuation |
19D |
| 6 |
Steering angle sensor, signal |
2H |
| 6 |
Steering angle sensor, signal |
1J |
| 6 |
Steering angle sensor, signal |
2D |
| 6 |
Steering angle sensor, signal |
6D |
| 7 |
Intelligent Light System, status |
4H |
| 7 |
Intelligent Light System, status |
2D |
| 7 |
Intelligent Light System, status |
7D |
| 8 |
Wheel speed, signal |
5G |
| 8 |
Wheel speed, signal |
2E |
| 8 |
Wheel speed, signal |
8K |
| 8 |
Wheel speed, signal |
6D |
| 9 |
Vehicle speed, signal |
2E |
| 9 |
Vehicle speed, signal |
4H |
| 9 |
Vehicle speed, signal |
6D |
| A1 |
Instrument cluster |
7J |
| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
15J |
| CAN E |
Chassis CAN |
12F |
| CAN E |
Chassis CAN |
6F |
| CAN E |
Chassis CAN |
5K |
| CAN E |
Chassis CAN |
3J |
| CAN E |
Chassis CAN |
6G |
| CAN E |
Chassis CAN |
10G |
| CAN E |
Chassis CAN |
19F |
| CAN E |
Chassis CAN |
9K |
| CAN G |
Front end CAN |
5C |
| CAN G |
Front end CAN |
2E |
| CAN G |
Front end CAN |
5D |
| CAN H |
Vehicle dynamics CAN |
13K |

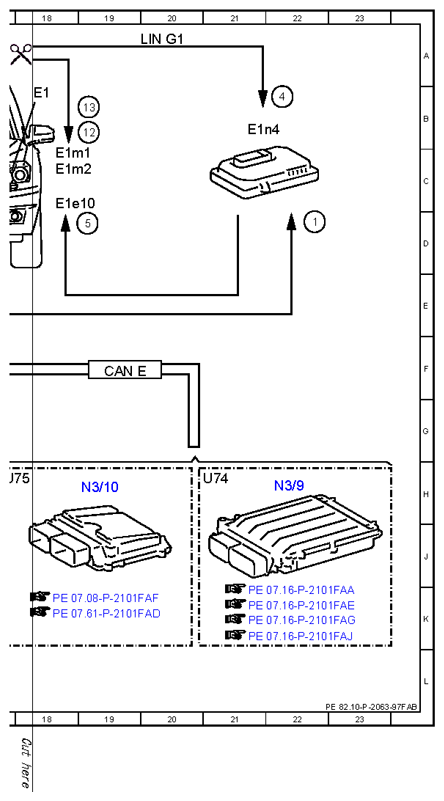

| E1 |
Left front lamp unit |
18B |
| E1e10 |
Left xenon bulb with integrated ignition module |
18C |
| E1m1 |
Left headlamp range adjustment actuator motor |
18C |
| E1m2 |
Left active curve illumination actuator motor |
18C |
| E1n1 |
Left xenon lamp control unit |
3B |
| E1n4 |
Left xenon light power supply module |
21B |
| E2 |
Right front lamp unit |
14B |
| E2e10 |
Right xenon bulb with integrated ignition module |
14C |
| E2m1 |
Right headlamp range adjustment actuator motor |
14C |
| E2m2 |
Right active curve illumination actuator motor |
14C |
| E2n1 |
Right xenon light control unit |
7B |
| E2n4 |
Right xenon light power supply module |
11B |
| LIN G1 |
Left headlamp LIN |
12A |
| LIN G1 |
Left headlamp LIN |
5A |
| LIN G1 |
Left headlamp LIN |
20A |
| LIN G2 |
Right headlamp LIN |
9C |
| N10/1 |
Front SAM control unit with fuse and relay module |
3F |
| N3/10 |
ME-SFI [ME] control unit |
19H |
| N3/9 |
CDI control unit |
22H |
| N30/4 |
Electronic Stability Program control unit |
11J |
| N49 |
Steering angle sensor |
1H |
| N80 |
Steering column module control unit |
3J |
| U74 |
Valid for diesel engines |
20H |
| U75 |
Valid for gasoline engines |
17H |
