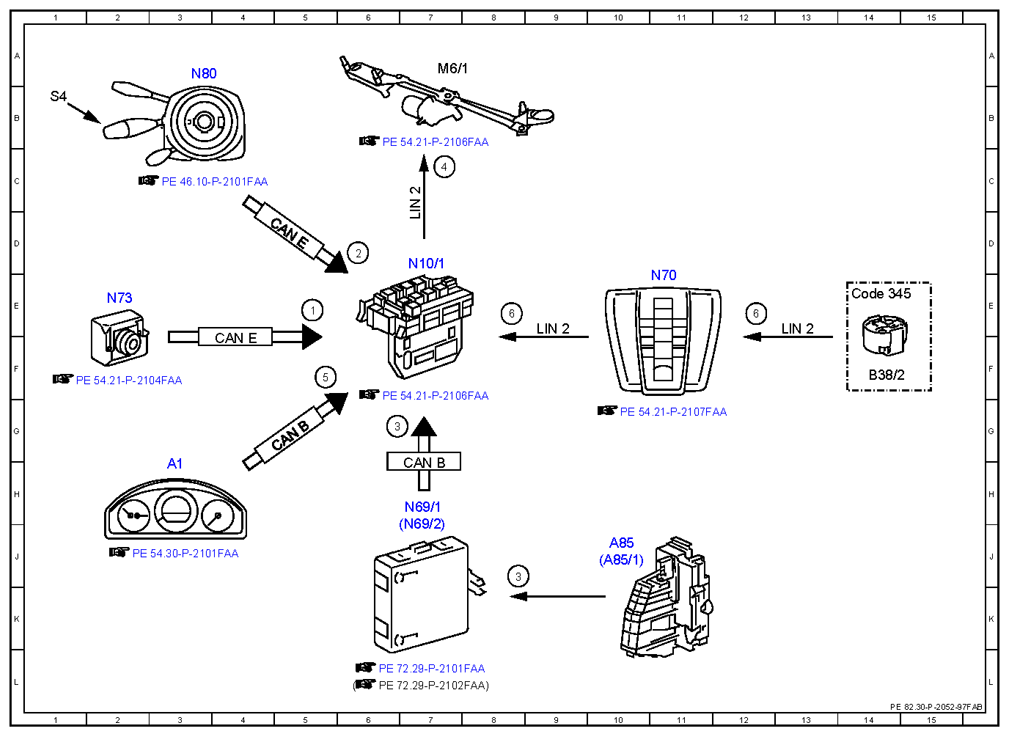

| 1 |
Circuit 15, status |
|
| 2 |
Combination switch, status |
|
| 3 |
Door rotary tumbler switch, status |
|
| 3 |
Door rotary tumbler switch, status |
|
| 4 |
Wiper motor, actuation |
|
| 5 |
Vehicle speed, signal |
|
| 6 |
Rain/light sensor, status |
|
| 6 |
Rain/light sensor, status |
|
| A1 |
Instrument cluster |
3H |
| A85 |
Left front door lock |
10J |
| A85/1 |
Right front door lock |
10J |
| B38/2 |
Rain/light sensor |
14F |
| CAN B |
Interior CAN |
5G |
| CAN B |
Interior CAN |
7H |
| CAN E |
Chassis CAN |
4F |
| CAN E |
Chassis CAN |
5D |
| Code 345 |
Rain sensor |
14E |
| LIN 2 |
Wiper/inside rearview mirror LIN |
7C |
| LIN 2 |
Wiper/inside rearview mirror LIN |
13E |
| LIN 2 |
Wiper/inside rearview mirror LIN |
9E |
| M6/1 |
Wiper motor |
7A |
| N10/1 |
Front SAM control unit with fuse and relay module |
7D |
| N69/1 |
Left front door control unit |
7H |
| N69/2 |
Right front door control unit |
7J |
| N70 |
Overhead control panel control unit |
11E |
| N73 |
Electronic ignition switch control unit |
2E |
| N80 |
Steering column module control unit |
3A |
| S4 |
Combination switch |
1B |
