Electrical Function Schematic For Washer Nozzle Heater - PE82.35-P-2050-97FAB

Code: Designation: Position:
1 Circuit 15, status
2 Engine running, signal
3 Drivetrain operational, signal
4 Outside temperature, signal
4 Outside temperature, signal
5 Displayed outside temperature, signal
6 Spray nozzle heater, actuation
7 Spray nozzle hose heater, actuation
A1 Instrument cluster 3A
B14 Outside temperature sensor 7B
CAN B Interior CAN 4F
CAN B Interior CAN 5D
CAN E Chassis CAN 9F
N10/1 Front SAM control unit with fuse and relay module 7E
N3/10 ME-SFI [ME] control unit 13F
N3/9 CDI control unit 13C
N73 Electronic ignition switch control unit 2E
R2/1 Spray nozzle heater 6J
R2/11 Spray nozzle hose heater 7J
U74 Valid for diesel engines 11C
U75 Valid for gasoline engines 11F

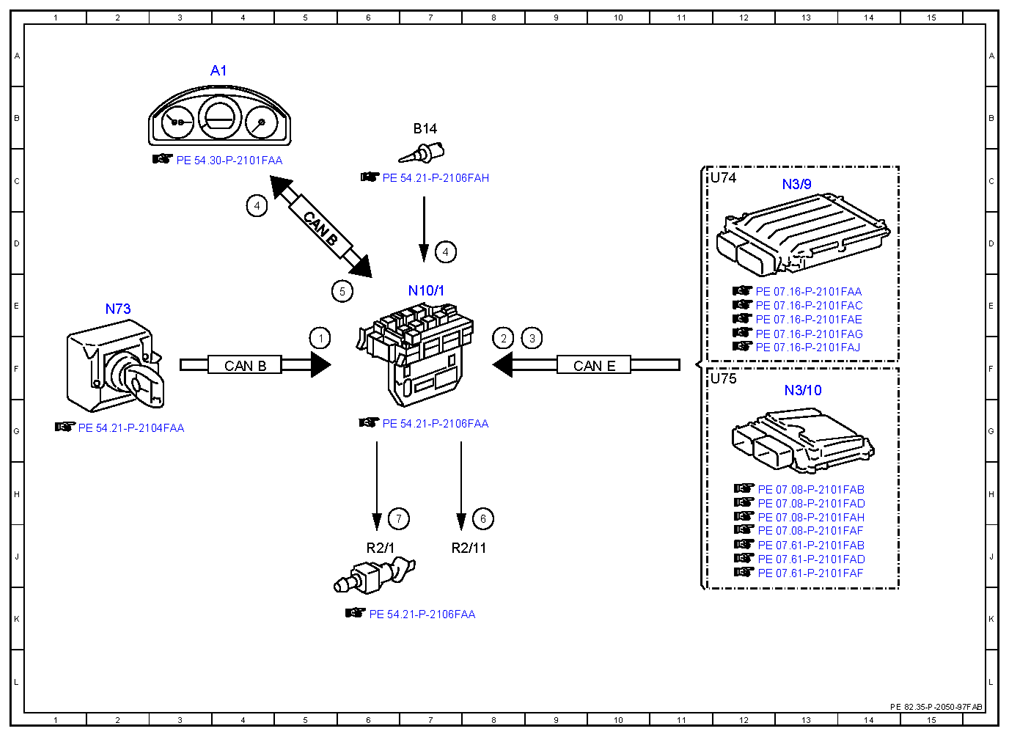

Fig 1: Washer Nozzle Heater Electrical Function Schematic
G10080777
