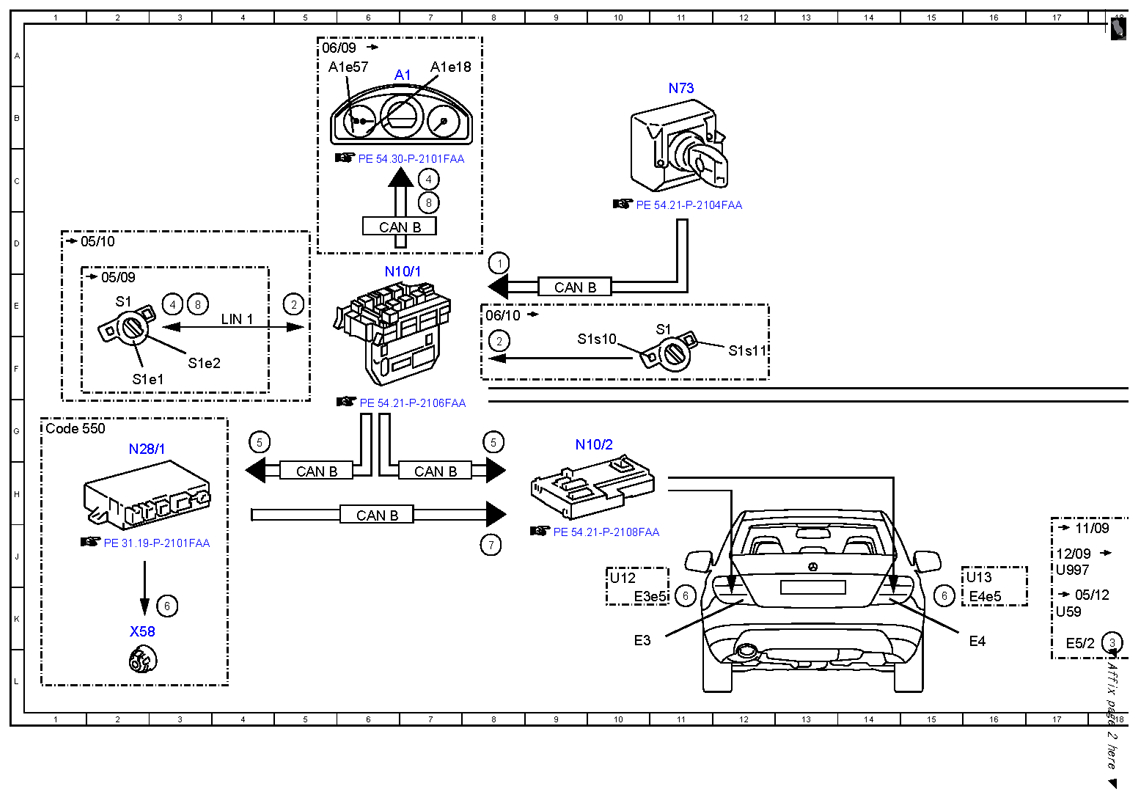

| 1 |
Circuit 15, status |
8D |
| 2 |
Exterior lights switch, status |
5E |
| 2 |
Exterior lights switch, status |
8F |
| 3 |
Front fog lamps, actuation |
18K |
| 3 |
Front fog lamps, actuation |
23K |
| 4 |
Front fog lamps indicator lamp, actuation |
3E |
| 4 |
Front fog lamps indicator lamp, actuation |
7C |
| 5 |
Rear fog light, request |
4G |
| 5 |
Rear fog light, request |
8G |
| 6 |
Rear fog light, actuation |
3K |
| 6 |
Rear fog light, actuation |
11K |
| 6 |
Rear fog light, actuation |
15K |
| 7 |
Trailer operation detected, signal |
8J |
| 8 |
Rear fog light indicator light, actuation |
3E |
| 8 |
Rear fog light indicator light, actuation |
7C |
| A1 |
Instrument cluster |
6A |
| A1e18 |
Rear fog lamp indicator lamp |
7A |
| A1e57 |
Front fog lamps indicator lamp |
5A |
| CAN B |
Interior CAN |
6H |
| CAN B |
Interior CAN |
9E |
| CAN B |
Interior CAN |
6D |
| CAN B |
Interior CAN |
5H |
| CAN B |
Interior CAN |
7H |
| Code 550 |
Trailer hitch |
1G |
| E3 |
Left rear lamp unit |
10K |
| E3e5 |
Left rear fog lamp |
10K |
| E4 |
Right rear lamp unit |
16K |
| E4e5 |
Right rear fog lamp |
16K |
| E5/1 |

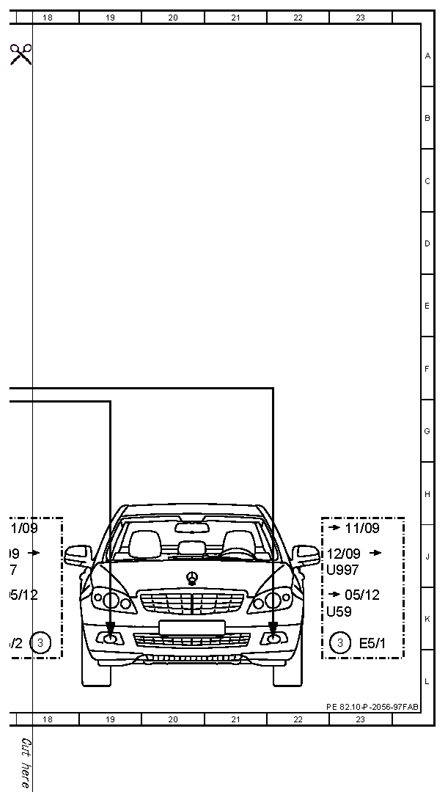

Left fog lamp |
23K |
| E5/2 |
Right fog lamp |
17K |
| LIN 1 |
Instrument panel LIN |
4E |
| N10/1 |
Front SAM control unit with fuse and relay module |
6E |
| N10/2 |
Rear SAM control unit with fuse and relay module |
9G |
| N28/1 |
Trailer recognition control unit |
2G |
| N73 |
Electronic ignition switch control unit |
11B |
| S1 |
Exterior lights switch |
2E |
| S1 |
Exterior lights switch |
11E |
| S1e1 |
Front fog lamps indicator lamp |
2F |
| S1e2 |
Rear fog lamp indicator lamp |
3F |
| S1s10 |
Rear fog light button |
9F |
| S1s11 |
Front fog lamp button |
12F |
| U12 |
Valid for left-hand drive vehicles |
10J |
| U13 |
Valid for right-hand drive vehicles |
16J |
| U59 |
Valid for model 204.9 |
17K |
| U59 |
Valid for model 204.9 |
22K |
| U997 |
Not valid for Intelligent Light System |
17J |
| U997 |
Not valid for Intelligent Light System |
22J |
| X58 |
Trailer socket |
2K |
