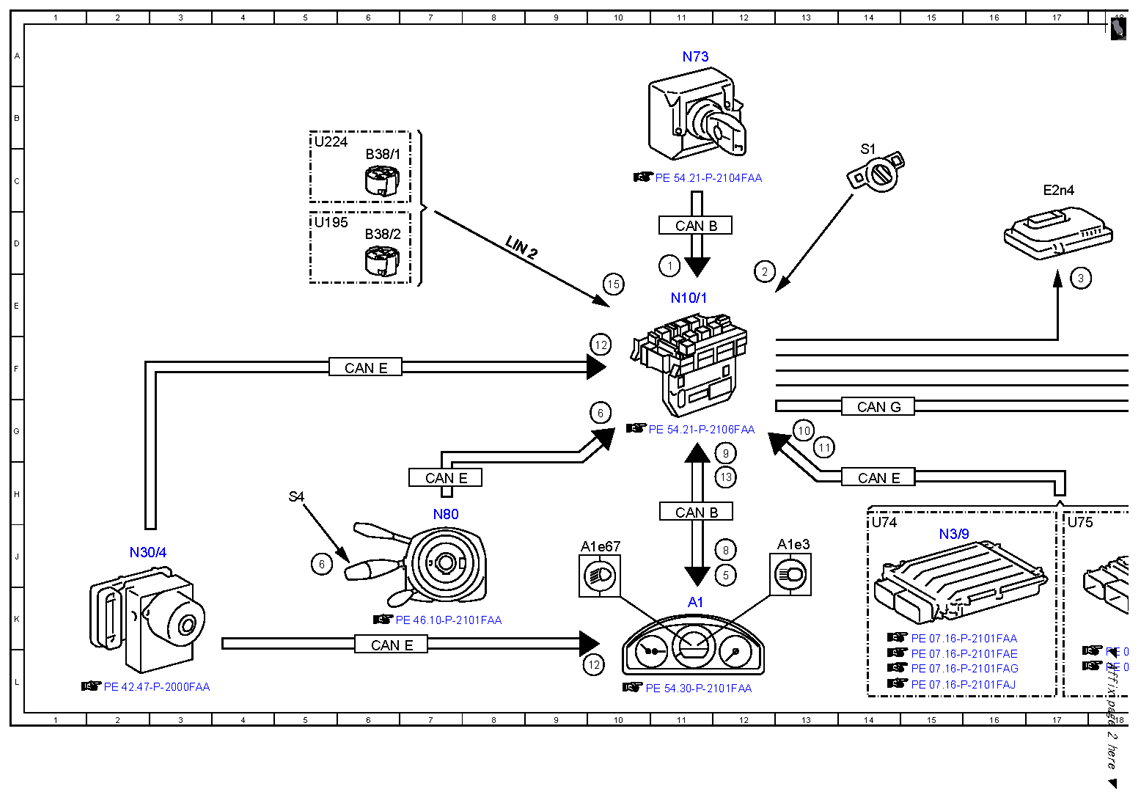

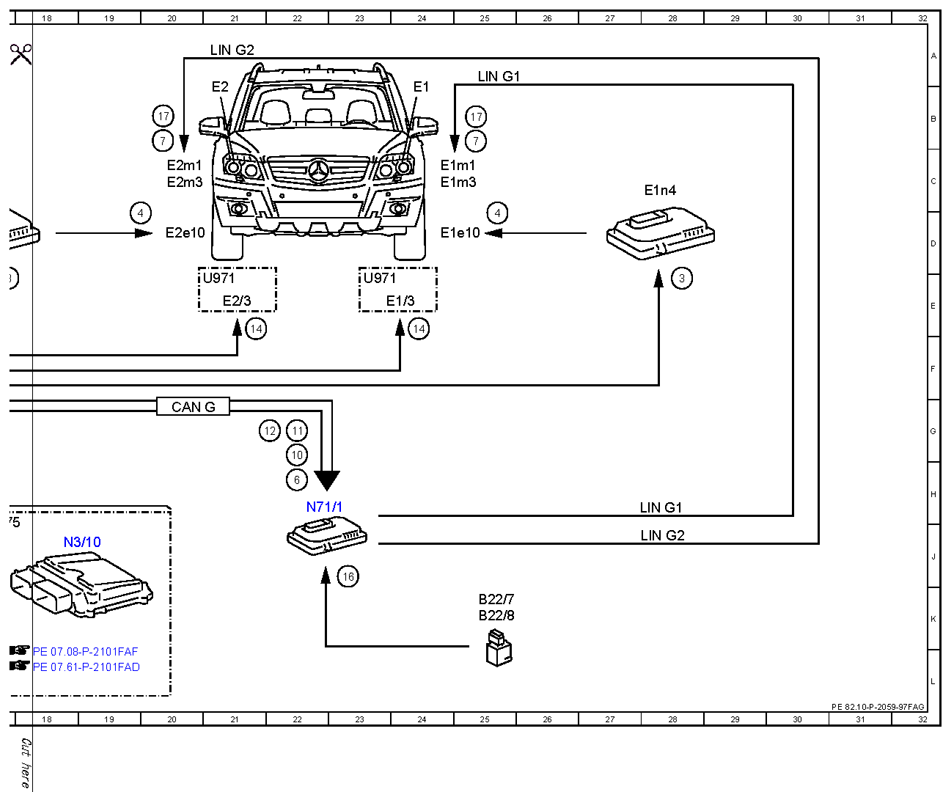

| 1 |
Circuit 15, status |
11D |
| 10 |
Engine running, signal |
13G |
| 10 |
Engine running, signal |
22G |
| 11 |
Drivetrain operational, signal |
13G |
| 11 |
Drivetrain operational, signal |
22G |
| 12 |
Wheel speed, signal |
10F |
| 12 |
Wheel speed, signal |
10L |
| 12 |
Wheel speed, signal |
22G |
| 13 |
Vehicle speed, signal |
12H |
| 14 |
Daytime running lights, actuation |
21E |
| 14 |
Daytime running lights, actuation |
24E |
| 15 |
Light sensor, status |
10E |
| 16 |
Level sensor, signal |
23J |
| 17 |
Headlamp range adjustment actuator motor, actuation |
25B |
| 17 |
Headlamp range adjustment actuator motor, actuation |
20B |
| 2 |
Exterior lights switch, status |
|
| 3 |
Low beams, actuation |
17E |
| 3 |
Low beams, actuation |
28E |
| 4 |
Xenon bulb with integrated ignition module, actuation |
19D |
| 4 |
Xenon bulb with integrated ignition module, actuation |
25D |
| 5 |
Low beams indicator lamp, actuation |
12J |
| 6 |
Combination switch, status |
5J |
| 6 |
Combination switch, status |
10G |
| 6 |
Combination switch, status |
22H |
| 7 |
Light distribution actuator motor, actuation |
20B |
| 7 |
Light distribution actuator motor, actuation |
25B |
| 8 |
High beam indicator lamp, actuation |
12J |
| 9 |
Daytime running lights, request |
12G |
| A1 |
Instrument cluster |
11K |
| A1e3 |
High beam indicator lamp |
13J |
| A1e67 |
Low beam indicator lamp |
9J |
| B22/7 |
Left rear level sensor |
25K |
| B22/8 |
Left front level sensor |
25K |
| B38/1 |
Light sensor |
6C |
| B38/2 |
Rain/light sensor |
6D |
| CAN B |
Interior CAN |
11H |
| CAN B |
Interior CAN |
11D |
| CAN E |
Chassis CAN |
6F |
| CAN E |
Chassis CAN |
7H |
| CAN E |
Chassis CAN |
14H |
| CAN E |
Chassis CAN |
6L |
| CAN G |
Front end CAN |
14G |
| CAN G |
Front end CAN |
20G |
| E1 |
Left front lamp unit |
24B |
| E1/3 |
Left daytime running lamps headlamp |
23E |
| E1e10 |
Left xenon bulb with integrated ignition module |
24D |
| E1m1 |
Left headlamp range adjustment actuator motor |
24C |
| E1m3 |
Left light distribution actuator motor |
24C |
| E1n4 |
Left xenon light power supply module |
28C |
| E2 |
Right front lamp unit |
21B |
| E2/3 |
Right daytime running lamps headlamp |
21E |
| E2e10 |
Right xenon bulb with integrated ignition module |
20D |
| E2m1 |
Right headlamp range adjustment actuator motor |
20C |
| E2m3 |
Right light distribution actuator motor |
20C |
| E2n4 |
Right xenon light power supply module |
17C |
| LIN 2 |
Wiper/inside rearview mirror LIN |
8D |
| LIN G1 |
Left headlamp LIN |
28H |
| LIN G1 |
Left headlamp LIN |
25A |
| LIN G2 |
Right headlamp LIN |
28J |
| LIN G2 |
Right headlamp LIN |
21A |
| N10/1 |
Front SAM control unit with fuse and relay module |
11E |
| N3/10 |
ME-SFI [ME] control unit |
18J |
| N3/9 |
CDI control unit |
15J |
| N30/4 |
Electronic Stability Program control unit |
2J |
| N71/1 |
Headlamp control unit |
22H |
| N73 |
Electronic ignition switch control unit |
11A |
| N80 |
Steering column module control unit |
7H |
| S1 |
Exterior lights switch |
14C |
| S4 |
Combination switch |
5H |
| U195 |
Valid for rain/light sensor |
5D |
| U224 |
Valid without rain sensor |
5B |
| U74 |
Valid for diesel engines |
14J |
| U75 |
Valid for gasoline engines |
17J |
| U971 |
Valid for daytime running lamps |
20E |
| U971 |
Valid for daytime running lamps |
23E |
