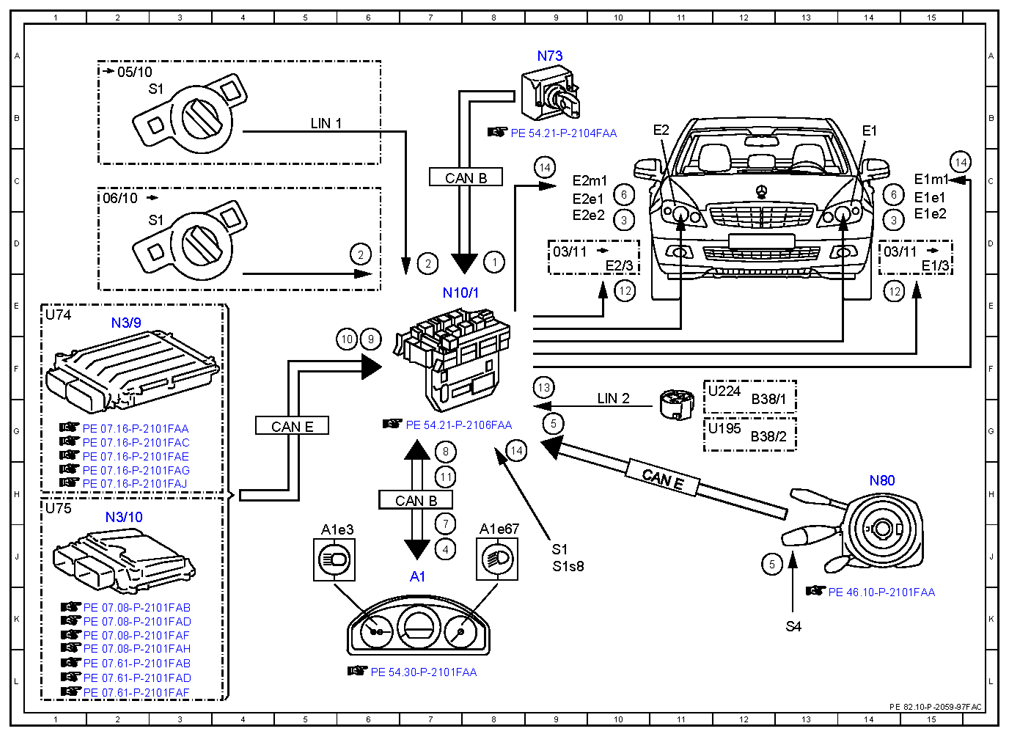

| 1 |
Circuit 15, status |
8D |
| 10 |
Drivetrain operational, signal |
6F |
| 11 |
Vehicle speed, signal |
7H |
| 12 |
Daytime running lights, actuation |
14E |
| 12 |
Daytime running lights, actuation |
10E |
| 13 |
Light sensor, status |
9F |
| 14 |
Headlamp range adjustment actuator motor, actuation |
9C |
| 14 |
Headlamp range adjustment actuator motor, actuation |
15C |
| 14 |
Headlamp range adjustment actuator motor, actuation |
8G |
| 2 |
Exterior lights switch, status |
6D |
| 2 |
Exterior lights switch, status |
7D |
| 3 |
Low beams, actuation |
10D |
| 3 |
Low beams, actuation |
14D |
| 4 |
Low beams indicator lamp, actuation |
7J |
| 5 |
Combination switch, status |
12J |
| 5 |
Combination switch, status |
9G |
| 6 |
High beams, actuation |
10C |
| 6 |
High beams, actuation |
14C |
| 7 |
High beam indicator lamp, actuation |
7J |
| 8 |
Daytime running lights, request |
7G |
| 9 |
Engine running, signal |
6F |
| A1 |
Instrument cluster |
7J |
| A1e3 |
High beam indicator lamp |
5J |
| A1e67 |
Low beam indicator lamp |
8J |
| B38/1 |
Light sensor |
12G |
| B38/2 |
Rain/light sensor |
12G |
| CAN B |
Interior CAN |
7H |
| CAN B |
Interior CAN |
7C |
| CAN E |
Chassis CAN |
11H |
| CAN E |
Chassis CAN |
5G |
| E1 |
Left front lamp unit |
14B |
| E1/3 |
Left daytime running lamps headlamp |
15D |
| E1e1 |
Left high beam |
15C |
| E1e2 |
Left low beam |
15D |
| E1m1 |
Left headlamp range adjustment actuator motor |
15C |
| E2 |
Right front lamp unit |
11B |
| E2/3 |
Right daytime running lamps headlamp |
10D |
| E2e1 |
Right high beam |
9C |
| E2e2 |
Right low beam |
9D |
| E2m1 |
Right headlamp range adjustment actuator motor |
9C |
| LIN 1 |
Instrument panel LIN |
5B |
| LIN 2 |
Wiper/inside rearview mirror LIN |
10G |
| N10/1 |
Front SAM control unit with fuse and relay module |
7E |
| N3/10 |
ME-SFI [ME] control unit |
2H |
| N3/9 |
CDI control unit |
2E |
| N73 |
Electronic ignition switch control unit |
9A |
| N80 |
Steering column module control unit |
14H |
| S1 |
Exterior lights switch |
2B |
| S1 |
Exterior lights switch |
2D |
| S1 |
Exterior lights switch |
9J |
| S1s8 |
Headlamp range controller |
9J |
| S4 |
Combination switch |
13K |
| U195 |
Valid for rain/light sensor |
11G |
| U224 |
Valid without rain sensor |
11F |
| U74 |
Valid for diesel engines |
1E |
| U75 |
Valid for gasoline engines |
1H |
