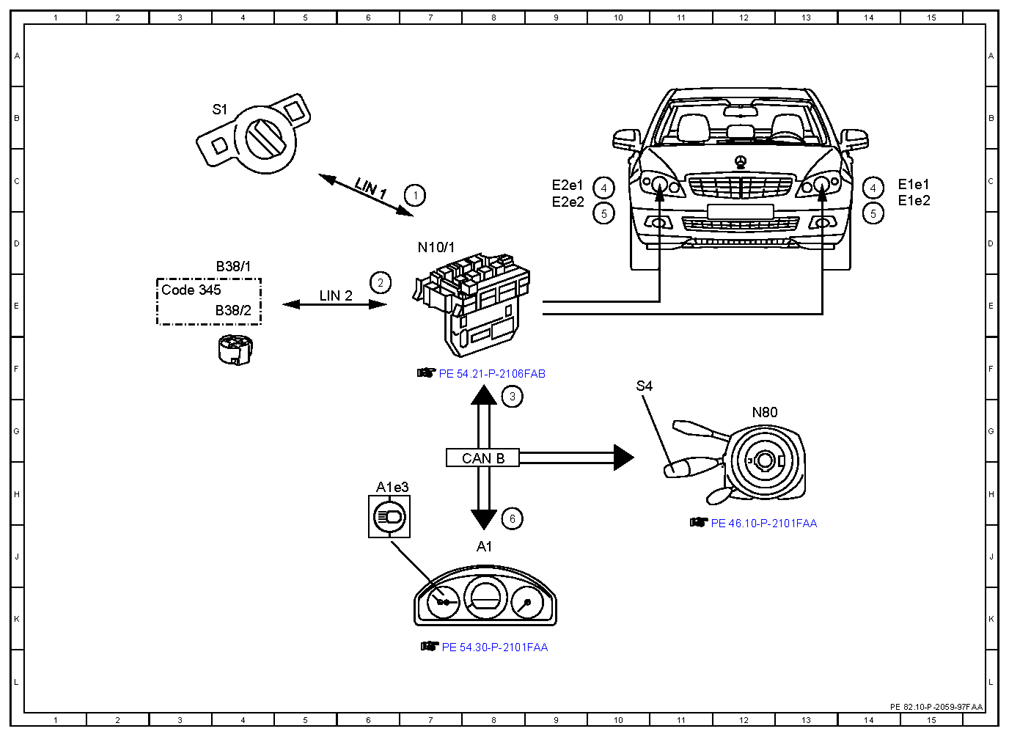

| 1 |
Exterior lights switch, status |
7C |
| 2 |
Ambient brightness, signal |
6E |
| 3 |
Combination switch, status |
8G |
| 4 |
High beams, actuation |
10C |
| 4 |
High beams, actuation |
14C |
| 5 |
Low beams, actuation |
10D |
| 5 |
Low beams, actuation |
14D |
| 6 |
High beam indicator lamp, actuation |
8H |
| A1 |
Instrument cluster |
8J |
| A1e3 |
High beam indicator lamp |
6H |
| B38/1 |
Light sensor |
4D |
| B38/2 |
Rain/light sensor |
4E |
| CAN B |
Interior CAN |
|
| Code 345 |
Rain sensor |
|
| E1e1 |
Left high beam |
14C |
| E1e2 |
Left low beam |
14C |
| E2e1 |
Right high beam |
9C |
| E2e2 |
Right low beam |
9C |
| LIN 1 |
Instrument panel LIN |
|
| LIN 2 |
Wiper/inside rearview mirror LIN |
|
| N10/1 |
Front SAM control unit with fuse and relay module |
7D |
| N80 |
Steering column module control unit |
12G |
| S1 |
Exterior lights switch |
3B |
| S4 |
Combination switch |
10F |
