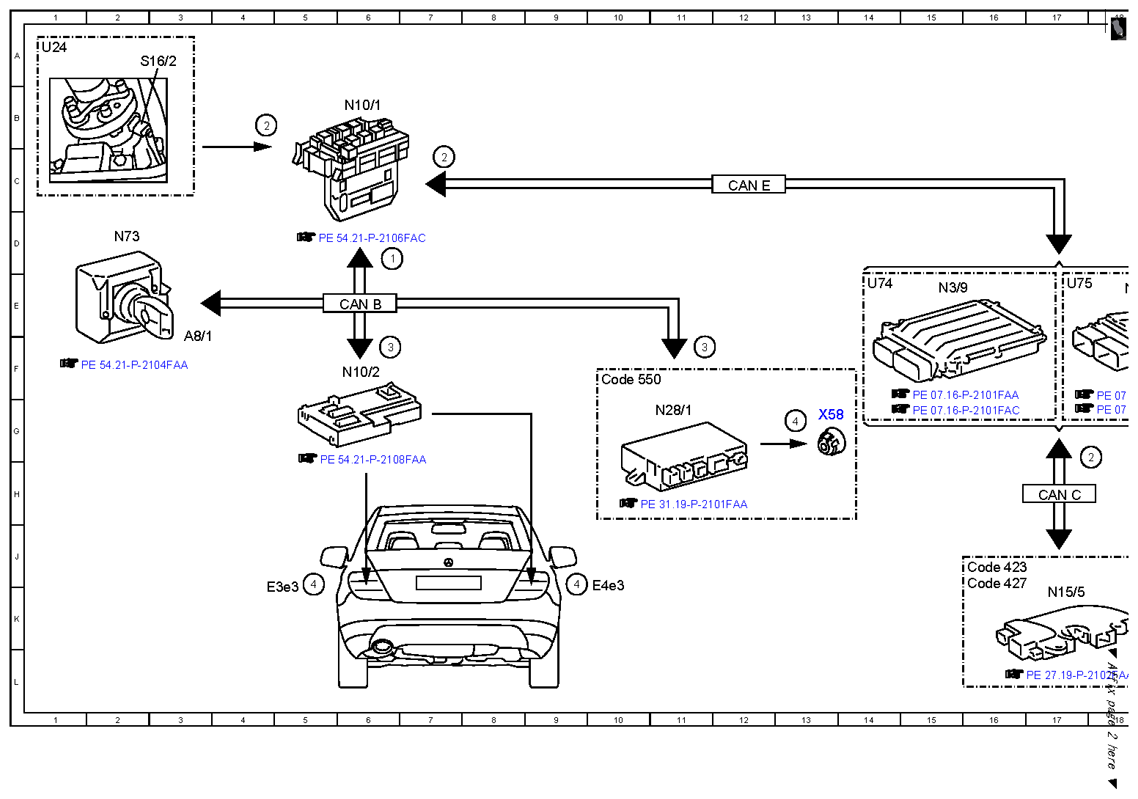

| 1 |
Circuit 15, status |
6D |
| 2 |
Reverse gear, status |
4B |
| 2 |
Reverse gear, status |
7C |
| 2 |
Reverse gear, status |
18G |
| 3 |
Backup lamp, request |
6F |
| 3 |
Backup lamp, request |
11F |
| 4 |
Backup lamp, actuation |
5K |
| 4 |
Backup lamp, actuation |
9K |
| 4 |
Backup lamp, actuation |
13G |
| A8/1 |
Transmitter key |
3F |
| CAN B |
Interior CAN |
|
| CAN C |
Drive train CAN |
|
| CAN E |
Chassis CAN |
|
| Code 423 |
5-speed automatic transmission |
|
| Code 427 |
7-speed automatic transmission |
|
| Code 550 |
Trailer hitch |
|
| E3e3 |
Left backup lamp |
4K |
| E4e3 |
Right backup lamp |
10K |
| N10/1 |
Front SAM control unit with fuse and relay module |
6B |
| N10/2 |
Rear SAM control unit with fuse and relay module |
6F |
| N15/5 |
Electronic selector lever module control unit |
17K |
| N28/1 |
Trailer recognition control unit |
11G |

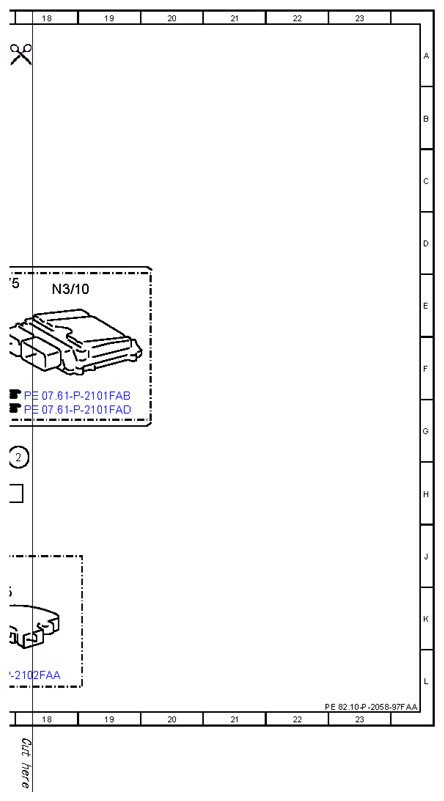

| N3/10 |
ME-SFI [ME] control unit |
18E |
| N3/9 |
CDI control unit |
15E |
| N73 |
Electronic ignition switch control unit |
2D |
| S16/2 |
Backup lamp switch |
3A |
| U24 |
Valid for manual transmission |
1A |
| U74 |
Valid for diesel engines |
14E |
| U75 |
Valid for gasoline engines |
17E |
| X58 |
Trailer socket |
13G |
