SDAR Tuner/High Definition Tuner Control Unit, Component Description - GF82.85-P-3122CE
MODEL 204.0/9 with CODE (536) SIRIUS satellite radio with CODE (512) COMAND APS with DVD changer with CODE (528) COMAND with DVD changer as of model year 2010 up to model year 2011/YoM 09,/YoM 10
Shown on model 204.0

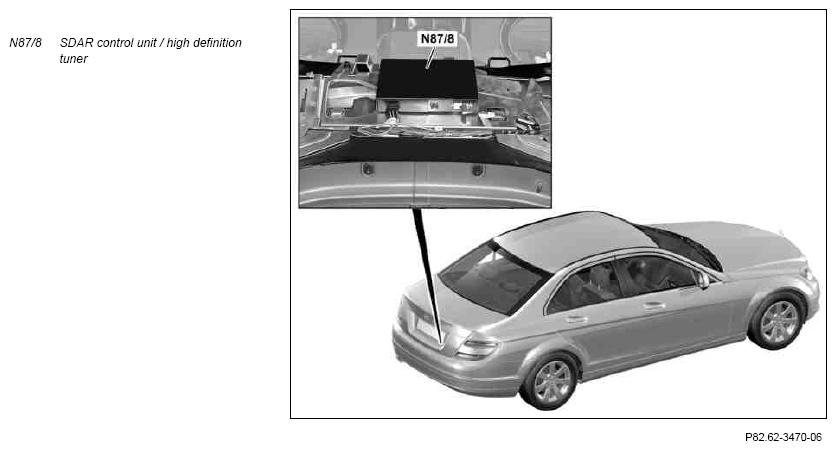

Location
The SDAR/high definition tuner control unit is located in the trunk on the equipment bridge in front of the spare wheel well.
Task
The SDAR/High definition tuner control unit has the following tasks:
- Receive signals
- Amplifying and decoding signals
- Transmit signals
Receive signals
Signals are read in via the following connections:
- Direct lines
- Media Oriented System Transport (MOST)
Direct lines
The following signals are read in via direct lines:
- Wake-up
- Satellite signals and terrestrial signals from the multifunction antenna (A28/11)
MOST
The following signals are read in via MOST:
- Control signals from COMAND controller unit (A40/3)
Amplifying and decoding signals
The SDAR/high definition tuner control unit decodes and amplifies the satellite signals (Time Division Multiplex (TDM)) and the terrestrial signals (Coded Orthogonal Frequency Division Multiplex (COFDM)) in pulse code modulation pulse code modulation signals.
Transmit signals
The SDAR/high definition tuner control unit sends the following signals via MOST:
- Demodulated and decoded digital S-band satellite and S-band terrestrial signals as digital traffic data signals
- SDAR/high definition tuner control unit status, program-specific supplemental information (e.g. artist, track name and composer) as well as music categories ("ROCK", "NEWS" and similar)
- Decoded audio signals
| Technical data Designation |
Unit | Values | Tolerance range | Remarks |
|---|---|---|---|---|
| SDAR control unit/high definition tuner | ||||
| Power supply | VV | 13 | Battery voltage (U B ) | |
| Voltage limits | VV | 9, 3 | Minimum (UBmin ) | |
| 16 | Maximum (UBmax ) | |||
| Power consumption | A | 1 | Action (IAction ) | |
| A | 1.2 | Maximum (Imax ) | ||
| Reverse polarity protection | VV | -16 | Continuously | |
| Additional specific parameters | No data | |||
| Special features | No data | |||
| Flash capability/coding capability | YES/NO |
| Wiring diagram for high definition tuner control unit | PE82.60-P-2303-97FAA |
