Remove/install left front or right rpm sensor - AR42.30-P-0712CW
MODEL 172, 204
Shown on model 204
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition | ||
| 2 | Remove left or right wheel and tire assembly | ||
| MODEL 172 | AP40.10-P-4050V | ||
| MODEL 204 | AP40.10-P-4050CW | ||

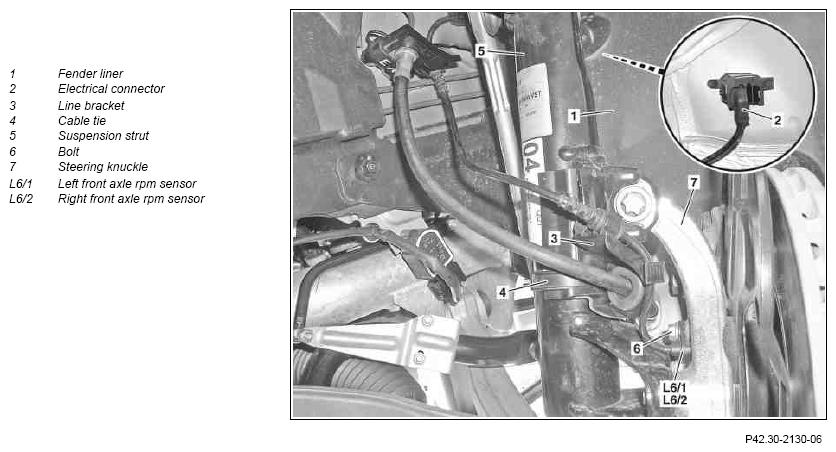

| 3.1 | Detach fender liner (1) on rear area of fender far enough to gain access to the electrical connection (2) | MODEL 172 | |
| AR88.10-P-1300W | |||
| 3.2 | Remove rear section from fender liner (1) in fender | MODEL 204 | |
| 4 | Disconnect electrical connector (2) | MODEL 172 | AR33.10-P-0100-06V |
| MODEL 204 | AR33.10-P-0100-06CW | ||
| 5 | Unclip electrical line of left front axle rpm sensor (L6/1) or right front axle rpm sensor (L6/2) from line bracket (3) | ||
| 6 | Remove cable tie (4) from suspension strut (5) | MODEL 204 (except 204.9) with ENGINE 271, 272, 274, 276, 642, 651 |
|
| Fig 2 | |||
| 7 | Remove bolt (6) and pull left front axle rpm sensor (L6/1) or right front axle rpm sensor (L6/2) out of steering knuckle (7) | MODEL 172, 204 (except 204.9) Replace seal on left front axle rpm sensor (L6/1) or right front axle rpm sensor (L6/2). Otherwise, water can enter and damage the wheel bearing. |
|
| 8 | Install in the reverse order | ||
| 9 | Connect diagnostic system and read out fault memory | ||
| AD00.00-P-2000-04A |
