Brake system - inspect fluid level - AP42.10-P-4210CW

MODEL 204

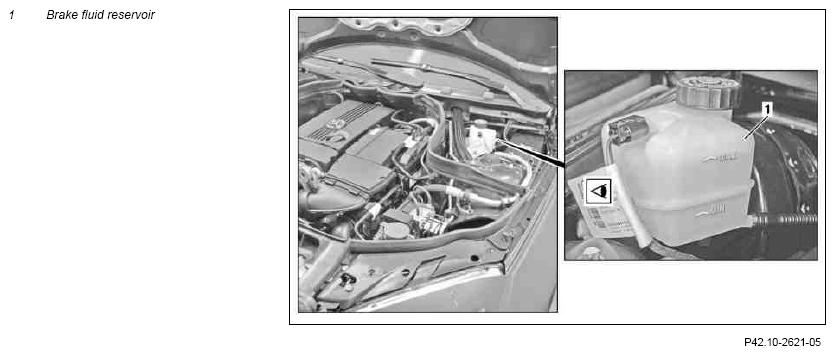

Fig 1: Identifying Brake Fluid Reservoir

Courtesy of MERCEDES-BENZ USA

	Checking
	Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Risk of poisoning  caused by swallowing brake fluid. Risk of injury  caused by brake fluid coming into contact with skin and eyes.	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
1	Check fluid level in brake fluid reservoir (1)	Vehicles with manual transmission use the same brake fluid reservoir (1) for the clutch operating system and the brake system. The fluid level must be between the "MIN" and "MAX" markings on the brake fluid reservoir (1). If fluid level is too high, extract brake fluid down to "MAX" marking. If the fluid level is too low, determine cause and rectify subject to a separate invoice.
			*BF42.10-P-1001-01J

BRAKE FLUID

Number	Designation			Model 204
BF42.10-P-1001-01J	Brake fluid	Filling capacity	Liters	≈0, 5
		Specifications for Operating Fluids	Specification	DOT 4. See GENERAL BRAKE FLUID (https://bevo.mercedes-benz.com/index.php?language_id=1)
			Specification	DOT 4. See GENERAL BRAKE FLUID (https://bevo.mercedes-benz.com/index.php?language_id=1)
