Adaptive Brake (ABR) location of components - GF42.47-P-0001-02CE
Implementation dates and validities for Electronic Stability Program control unit (N30/4) (ESP) (Basis variant, without code (233) DISTRONIC PLUS) and except model 204.077/277/377) or Electronic Stability Program control unit (Premium variant, with code (233) DISTRONIC PLUS) or model 204.077/277/377)
- Model 204.0/2 as of 1.3.2011
- Model 204.3 as of 1.6.2011
Up to the 28.2.2011 or 31.5.2011 and as of 1.6.2011 (model 204.9) only the Basis variant (without code (233) DISTRONIC PLUS) of the ESP control unit shall be used.

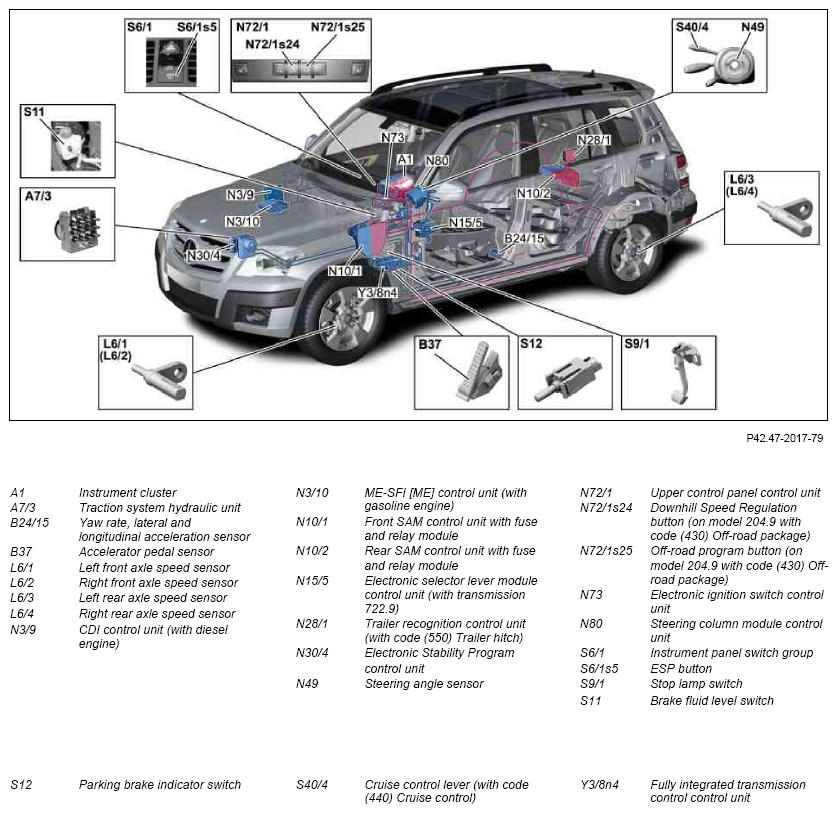

Shown on model 204.9 up to 31.5.10

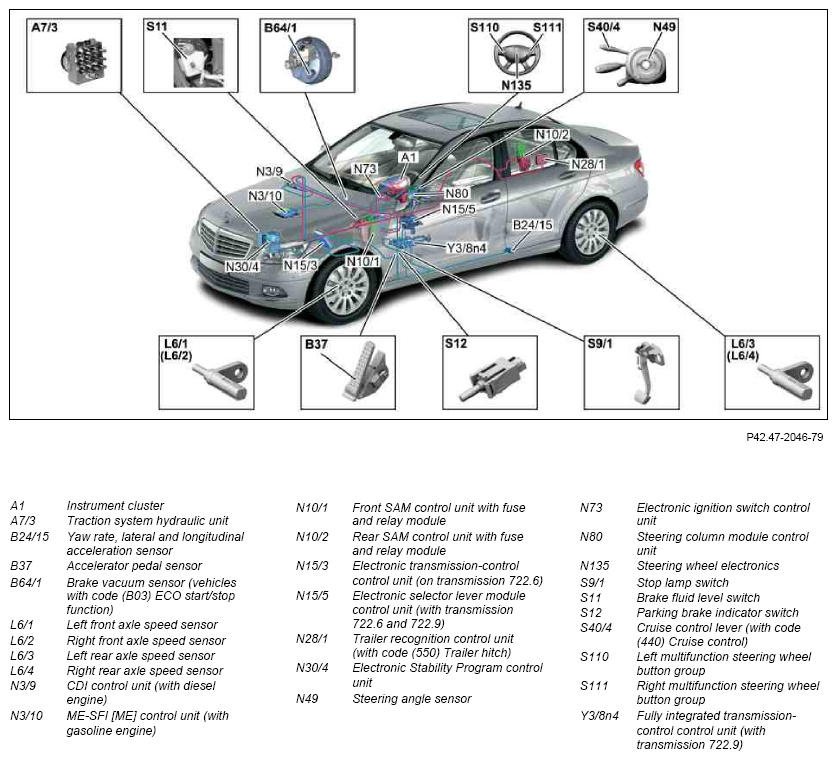

Shown on model 204.0 as of 1.6.10 up to 28.2.2011
