Remove/install stabilizer bar on rear axle - AR32.20-P-0315CWG
MODEL 204.9
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| While working on the rear axle care must be taken to ensure that the surface of all aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the parts will be affected | |||
| 1 | Remove rear wheel | ||
| Remove/install wheels | AP40.10-P-4050CW | ||

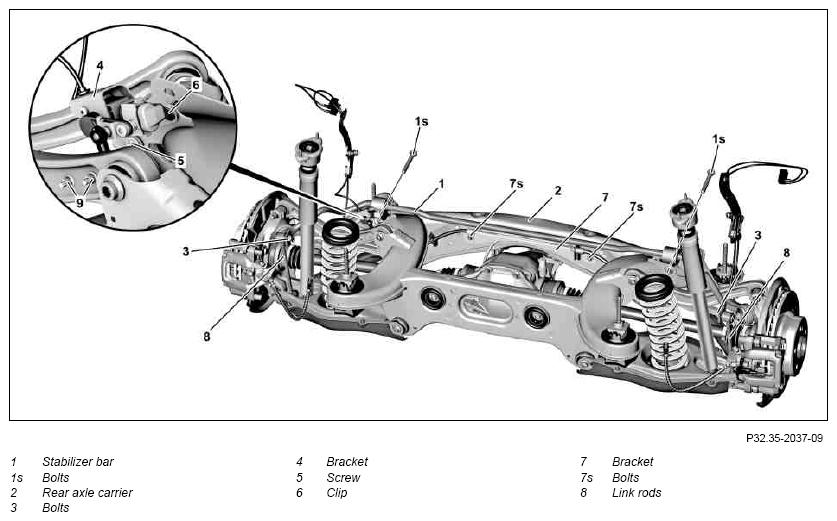

| 2 | Remove bracket (7) of brake cable of parking brake on rear axle carrier (2) and push downwards | *BA42.20-P-1003-01L | |
| 3 | Remove bolt (5) and clip (6), and then remove bracket (4) for level sensor of rear axle carrier (2) | ||
| 4 | Detach link rods (8) from torsion bar (1) | *BA32.20-P-1002-04N | |
| 5 | Remove torsion bar (1) from rear axle carrier (2), to do so remove the bolts (1s) | Fig 2 | |
| *BA32.20-P-1003-04N | |||
| 6 | Remove torsion bar (1) | ||
| 7 | Install in the reverse order |
REAR AXLE STABILIZER BAR
| Number | Designation | Model 204 except model 204.077/277/377 | |
|---|---|---|---|
| BA32.20-P-1002-04N | Nut, link rod to stabilizer bar | Nm | 50 |
| BA32.20-P-1003-04N | Bolt, torsion bar to rear subframe | Nm | 80 |
PARKING BRAKE
| Number | Designation | Model 204 | |
|---|---|---|---|
| BA42.20-P-1003-01L | Bolt, carrier plate of brake cable to rear axle carrier | Nm | 17 |
