Adjust chassis - AR32.25-P-0050CBS
MODEL 204 with CODE P98 (Black Series)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |

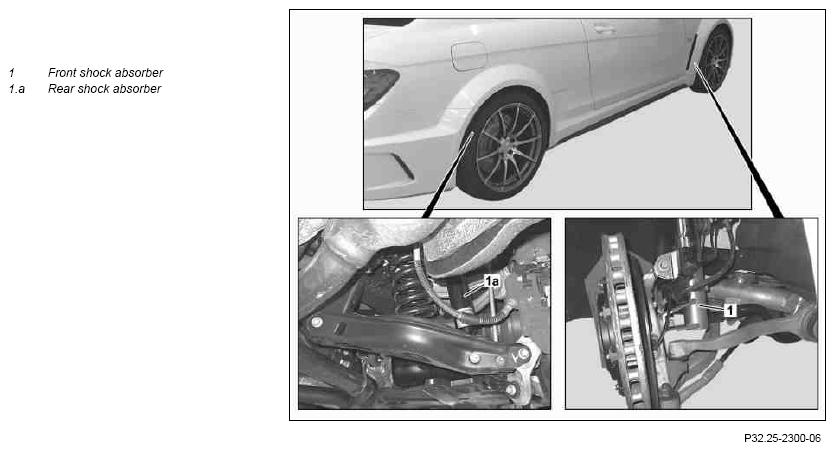

| Adjust rebound stage | |||
| 1 | Open engine hood or liftgate | ||
| 2 | Open service flaps in luggage compartment | ||
| 3 | Adjust rebound stage | Adjust compression stage and rebound stage | AR32.25-P-0050-01CBS |
| Adjust compression stage | |||
| 4 | Raise vehicle | ||
| 5 | Adjust compression stage | Adjust compression stage and rebound stage | AR32.25-P-0050-01CBS |
| Adjust vehicle level | |||
| 6 | Remove wheel. | ||
| Remove/install wheels, rotate if necessary | AP40.10-P-4050CW | ||
| 7 | Adjust vehicle level | Adjust vehicle level | AR32.25-P-0050-02CBS |
| 8 | Install in the reverse order |
