Remove/install oil lines of oil cooling for automatic transmission - AR27.55-P-0600GQ

TRANSMISSION 722.9 in MODEL 166

Shown on engine 276.8

Shown on engine 276.9

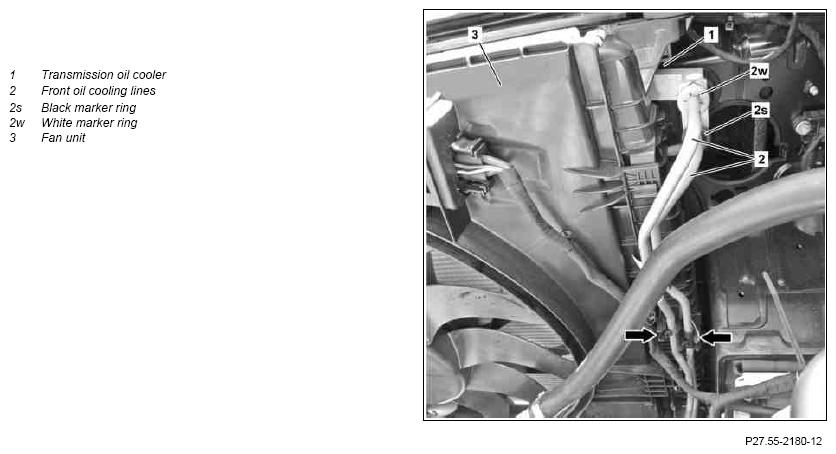

Fig 1: Identifying Automatic Transmission Oil Lines Of Oil Cooling Remove/Install Components - Shown On Engine 276.9 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

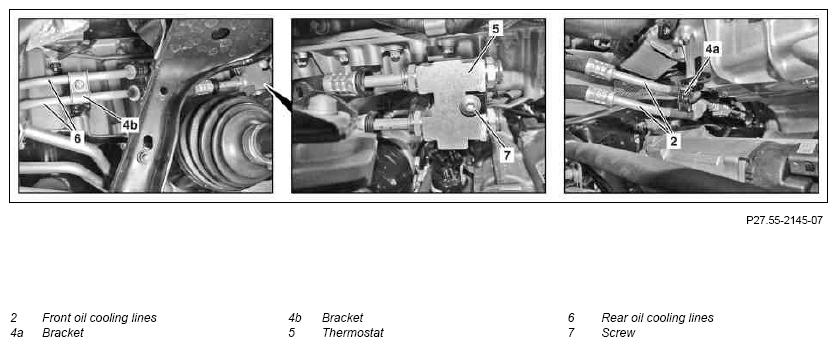

Fig 2: Identifying Automatic Transmission Oil Lines Of Oil Cooling Remove/Install Components - Shown On Engine 276.9 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Clean connecting points of oil cooling lines (2, 2a, 6)	Before starting the work, the area around the oil cooling lines (2, 2a, 6) must be cleaned thoroughly in the area of the connecting points on the transmission.
2	Remove relevant section of the underfloor paneling		AR61.30-P-1001GQ
3	Detach temperature sensor upstream of diesel particulate filter and place to one side	ENGINE 642, 651
			AR07.04-P-0005OGR
4.1	Remove engine air intake duct upstream of air filter housing	ENGINE 276.9, 642, 651
4.2	Remove right engine air intake duct upstream of air filter housing	ENGINE 157, 276.8, 278
		ENGINE 276.8	AR09.10-P-1150GQC
5.1	Detach front oil cooling lines (2) from transmission cooler (1)	ENGINE 157, 276.9, 278, 642, 651
			AR27.10-P-0501-03RT
		Always disconnect/connect the feed line with the white marker ring (2w) from/to the upper transmission cooler connection; always disconnect/connect the return line with the black marker ring (2s) from/to the lower transmission cooler connection. Do not kink or bend oil cooling lines (2). Leaks and damage can otherwise occur. Collect escaping transmission oil using a suitable container and seal the line connections using stop plugs.
		Record plug	Fig 3
5.2	Detach front oil cooling line (2) at top of transmission cooler (1) and at bottom of radiator (8)	ENGINE 276.8
			AR27.10-P-0501-03RT
		Do not kink or bend oil cooling lines (2). Leaks and damage can otherwise occur. Collect escaping transmission oil using a suitable container and seal the line connections using stop plugs.
		Record plug	Fig 3
6	Detach and remove cooling line (2a) from transmission cooler (1) and radiator (8)	ENGINE 276.8
			AR27.10-P-0501-03RT
		Do not kink or bend oil cooling lines (2a). Leaks and damage can otherwise occur. Collect escaping transmission oil using a suitable container and seal the line connections using stop plugs.
		Record plug	Fig 3
7.1	Unclip front oil cooling lines (2) from fan unit (3) (arrows)	ENGINE 157, 276.9, 278, 642, 651
7.2	Unclip upper front oil cooling lines (2) from radiator (8) (arrow A)	ENGINE 276.8
8	Detach front oil cooling lines (2) from bracket (4a)	Bolt, oil line from oil cooler to engine oil pan	*BA27.55-P-1003-01D
9	Detach front oil cooling lines (2) from thermostat (5) and remove		AR27.10-P-0501-03RT
		Collect escaping transmission oil using a suitable container and seal the line connections using stop plugs.
		Record plug	Fig 3
10	Detach rear oil cooling lines (6) from bracket (4b)	Do not kink or bend oil cooling lines (6). Leaks and damage can otherwise occur.
		Bolt, clamp to oil line	*BA27.55-P-1004-01D
11	Detach rear oil cooling lines (6) from transmission		AR27.10-P-0501-03RT
		Collect escaping transmission oil using a suitable container and seal the line connections using stop plugs. Install new seals.
		Bolt, transmission oil line to transmission housing	*BA27.55-P-1002-01D
		Record plug	Fig 3
12	Detach rear oil cooling lines (6) from thermostat (5) and remove		AR27.10-P-0501-03RT
		Collect escaping transmission oil using a suitable container and seal the line connections using stop plugs.
		Record plug	Fig 3
13	Unscrew bolt (7) and remove thermostat (5)	Detach the bracket from the thermostat (5) if necessary.
		Bolt, thermostat to bracket	*BA27.55-P-1012-01D
		Bolt, bracket for thermostat to oil pan	*BA27.55-P-1011-01D
14	Install in the reverse order
15	Check transmission oil level and correct if necessary		AR27.00-P-0270W
		Follow the prescribed work procedure exactly and observe the Specifications for Operating Fluids. The transmission will otherwise be damaged.
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
16	Test run engine and check transmission for leaktightness and proper operation

TRANSMISSION OIL COOLING

Number	Designation				TRANSMISSION 722.9
BA27.55-P-1002-01D	Bolt, transmission oil line to transmission housing	Banjo bolt	Stage 1	Nm	5
			Stage 2	∠°	90
		Hexalobular bolt		Nm	12

TRANSMISSION OIL COOLING

Number	Designation		TRANSMISSION 722.9
BA27.55-P-1003-01D	Bolt, oil line from oil cooler to engine oil pan	Nm	12

TRANSMISSION OIL COOLING

Number	Designation		TRANSMISSION 722.9
BA27.55-P-1004-01D	Bolt, clamp to oil line	Nm	8

TRANSMISSION OIL COOLING

Number	Designation		TRANSMISSION 722.9
BA27.55-P-1011-01D	Bolt, bracket for thermostat to oil pan	Nm	10

TRANSMISSION OIL COOLING

Number	Designation		TRANSMISSION 722.9
BA27.55-P-1012-01D	Bolt, thermostat to bracket	Nm	6

Fig 3: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
