Windshield wipers, windshield washer system and headlamp cleaning system - function check - AP82.30-P-8252A
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 203, 209, 211
Shown on model 203.0
Shown on model 203.2
| Check | |||
| Risk of fire and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. | Wear protective clothing and tight-fitting safety glasses. No fire, naked flames or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of the reach of children. | AS82.35-Z-0001-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of the mechanism when the components are moving. | AS00.00-Z-0009-01A | |
| 1 | Close engine hood | ||
| MODEL 203 | AR88.40-P-1000P | ||
| MODEL 209 | AR88.40-P-1000Q | ||
| MODEL 211 | AR88.40-P-1000T | ||
| 2 | Close liftgate or trunk lid, doors, sliding roof and side windows | ||
| 3 | Switch on ignition | ||
| 4 | Check function of spray nozzles for windshield washer system on windshield and the setting | TYP 203, 209 | AP82.35-P-8252-01P |
| MODEL 211 |
AP82.35-P-8252-01T | ||
For clogged up spray nozzle: ↓ Clean spray nozzle using suitable needle and/or blow out with compressed air from inside out or replace spray nozzle subject to separate invoice. |
Fig 4 | ||
| 5 | Check function of spray nozzles for windshield washer system on rear window and the setting | TYP 203.2/7, 211.2/6 | |
| MODEL 203, 209 | AP82.35-P-8252-01P | ||
| MODEL 211 For spray nozzles that cannot be adjusted and with a deviating spray pattern: ↓ Replace spray nozzle subject to separate repair order. For clogged up spray nozzle: ↓ Clean spray nozzle using suitable needle and/or blow out with compressed air from inside out or replace spray nozzle subject to separate invoice. |
AP82.35-P-8252-01T | ||
| 6 | Check park position of wiper blades | The wiper blades must not come into contact with the A-pillar, cowl or liftgate. Otherwise the body or wiper mechanism will be damaged. In the event of any deviation to the park position: ↓ Check and adjust wiper arms subject to separate repair order. |
|
| 7 | Check setting of wiper arms on windshield | The wiper blades must not come into contact with the A-pillar or cowl. The body or wiper mechanism will otherwise be damaged. If there are problems: ↓ Determine and rectify cause, subject to separate repair order. |
|
| 8 | Check setting of wiper arm on rear window | MODEL 203.2/7, 211.2/6 Wiper blade must not make contact with the liftgate. Otherwise the liftgate or wiper mechanism may be damaged. If there are problems: ↓ Determine and rectify cause, subject to separate repair order. |
|
| 9 | Switch on low beam | Vehicles with CODE 600 (Headlamp cleaning system) or with CODE 614 (Bi-xenon headlamp unit) or with CODE 615 (Bi-xenon headlamp unit with integrated curve illumination) | |

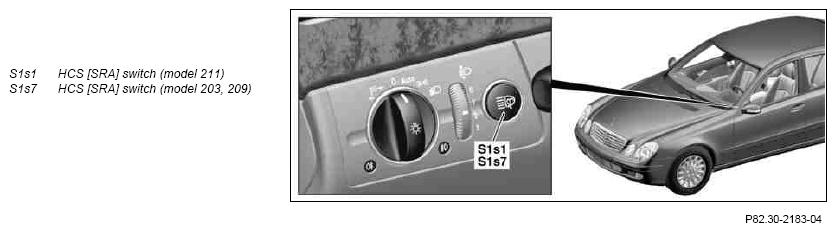

| 10.1 | Press HCS [SRA] switch (S1s1, S1s7) | Vehicles with CODE 600 (Headlamp cleaning system) or with CODE 614 (Bi-xenon headlamp unit) or with CODE 615 (Bi-xenon headlamp unit with integrated curve illumination) Vehicles with HCS [SRA] switch (S1s1, S1s7) |
|
For clogged up spray nozzle: ↓ Clean spray nozzle using suitable needle and/or blow out with compressed air from inside out or replace spray nozzle subject to separate invoice. For spray nozzles that cannot be adjusted and with a deviating spray pattern: ↓ Replace spray nozzle subject to separate repair order. |
Fig 4 | ||
| 10.2 | Repeatedly operate windshield washer system of windshield | Vehicles with CODE 600 (Headlamp cleaning system) or with CODE 614 (Bi-xenon headlamp unit) or with CODE 615 (Bi-xenon headlamp unit with integrated curve illumination) Vehicles without HCS [SRA] switch (S1s1, S1s7) |
|
For clogged up spray nozzle: ↓ Clean spray nozzle using suitable needle and/or blow out with compressed air from inside out or replace spray nozzle subject to separate invoice. For spray nozzles that cannot be adjusted and with a deviating spray pattern: ↓ Replace spray nozzle subject to separate repair order. |
Fig 4 | ||
| 11 | Switch off low beam | Vehicles with CODE 600 (Headlamp cleaning system) or with CODE 614 (Bi-xenon headlamp unit) or with CODE 615 (Bi-xenon headlamp unit with integrated curve illumination) | |
| 12 | Switch off ignition | ||
| 13 | Correct the fluid level in the windshield washer system reservoir | MODEL 203, 209 | AP82.35-P-8210P |
| MODEL 211 |
AP82.35-P-8210N |
