Remove suspension travel limiter - AP32.25-P-3270A

WARNING: This page does not describe the selected car, but rather 197 other vehicles, including the 2020 Mercedes-Benz SLC300, 2019 Mercedes-Benz SLC300, 2019 Mercedes-Benz SL63 AMG, 2019 Mercedes-Benz SL550, and 2019 Mercedes-Benz SL450. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 190

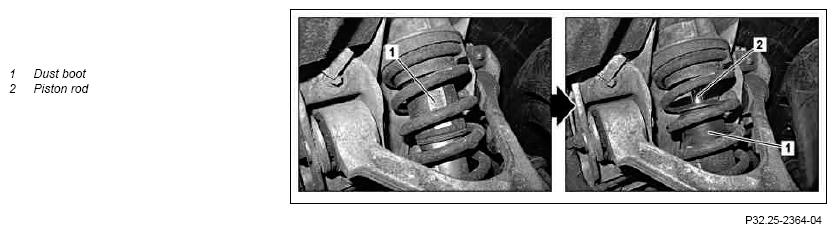

Fig 1: Identifying Suspension Dust Boot & Piston Rod

Courtesy of MERCEDES-BENZ USA

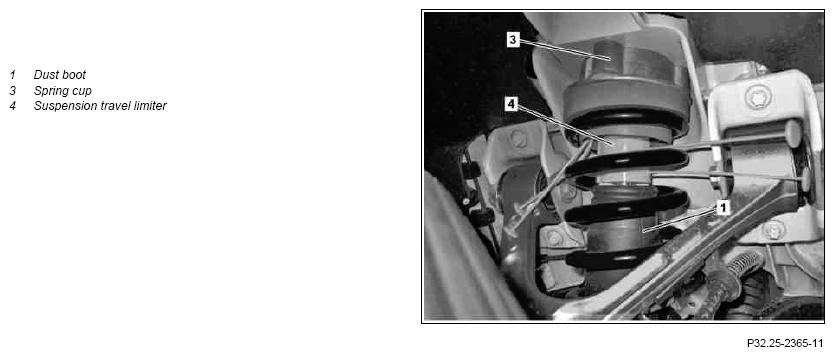

Fig 2: Identifying Dust Boot, Spring Cup And Suspension Travel Limiter

Courtesy of MERCEDES-BENZ USA

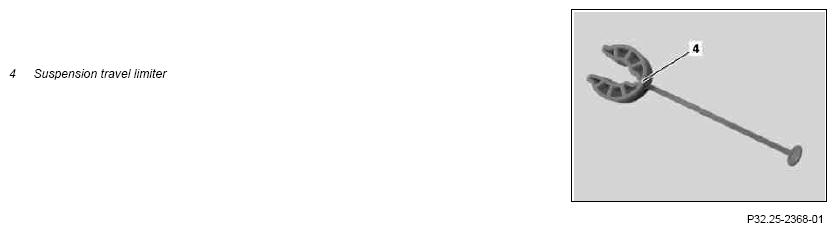

Fig 3: Identifying Suspension Travel Limiter

Courtesy of MERCEDES-BENZ USA

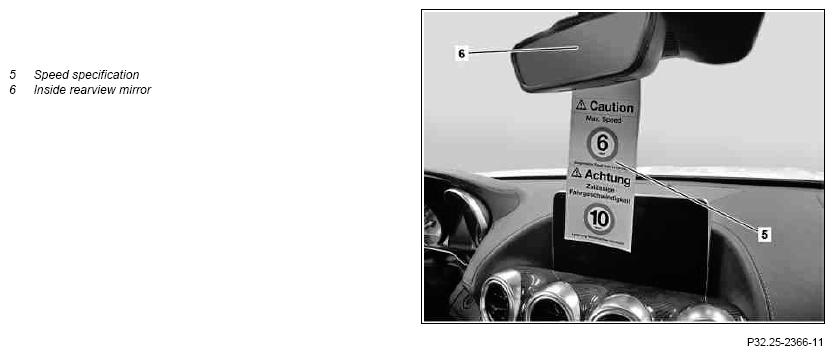

Fig 4: Identifying Speed Specification And Inside Rearview Mirror

Courtesy of MERCEDES-BENZ USA

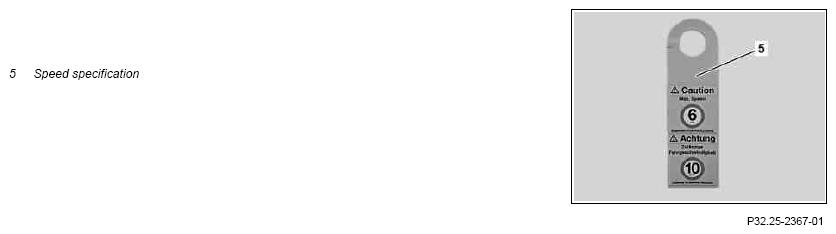

Fig 5: Identifying Speed Specification Tag

Courtesy of MERCEDES-BENZ USA

	Remove
1	Lift vehicle on vehicle lift
			AR00.60-P-1000RG
2	Remove suspension travel limiter (4) between dust boots (1) and spring retainers (3)	It must be ensured that all installed suspension travel limiters (4) at each damper are removed! The suspension and/or underfloor can otherwise be damaged.
3	Slide dust boots (1) on piston rods (2) in upward direction
4	Lower vehicle
5	Remove speed specification (5) from inside rearview mirror (6)
