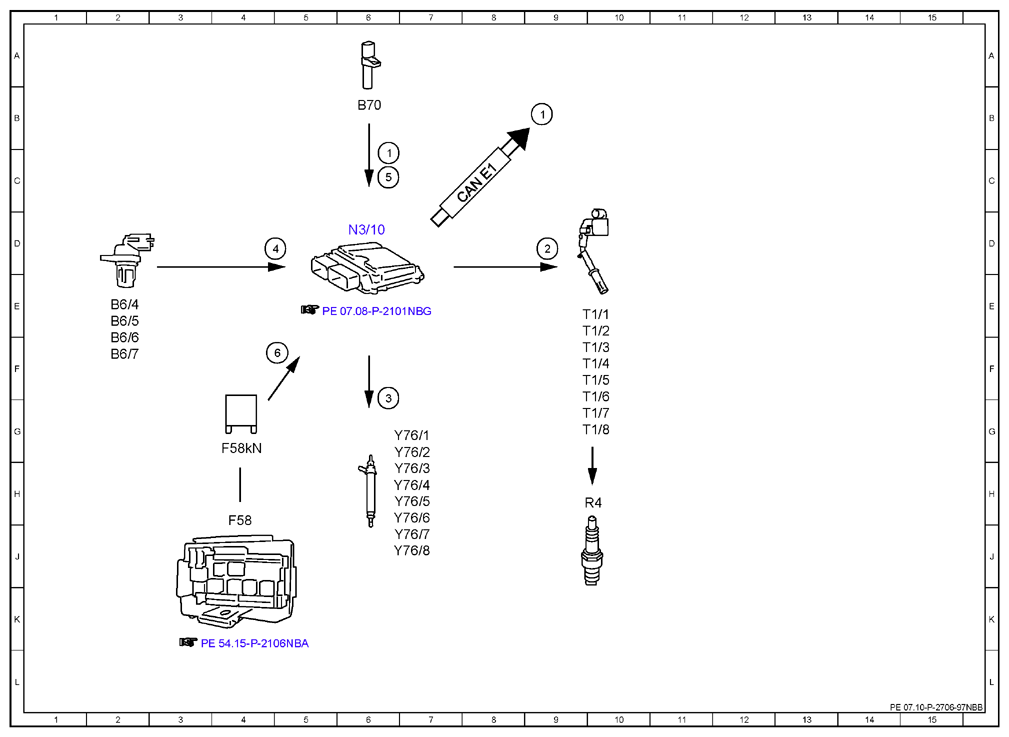

Electrical function schematic, synchronization of the injection and firing order - PE07.10-P-2706-97NBB

Code: Designation: Position:
1 Engine speed, signal 9B
1 Engine speed, signal 6C
2 Ignition coils, actuation 9D
3 Fuel injectors, actuation 6G
4 Camshaft Hall sensor, signal 4D
5 Crankshaft Hall sensor, signal 6C
6 Circuit 87, status 5F
B6/4 Left intake camshaft Hall sensor 2E
B6/5 Right intake camshaft Hall sensor 2E
B6/6 Left exhaust camshaft Hall sensor 2F
B6/7 Right exhaust camshaft Hall sensor 2F
B70 Crankshaft Hall sensor 6B
CAN E1 Chassis CAN 1 8C
F58 Engine compartment fuse and relay module 4J
F58kN Circuit 87M relay 4G
N3/10 ME-SFI [ME] control unit 6D
R4 Spark plugs 9H
T1/1 Cylinder 1 ignition coil 9E
T1/2 Cylinder 2 ignition coil 9E
T1/3 Cylinder 3 ignition coil 9F
T1/4 Cylinder 4 ignition coil 9F
T1/5 Cylinder 5 ignition coil 9F
T1/6 Cylinder 6 ignition coil 9G
T1/7 Cylinder 7 ignition coil 9G
T1/8 Cylinder 8 ignition coil 9G
Y76/1 Cylinder 1 fuel injector 6G
Y76/2 Cylinder 2 fuel injector 6G
Y76/3 Cylinder 3 fuel injector 6H
Y76/4 Cylinder 4 fuel injector 6H
Y76/5 Cylinder 5 fuel injector 6H
Y76/6 Cylinder 6 fuel injector 6H
Y76/7 Cylinder 7 fuel injector 6J
Y76/8 Cylinder 8 fuel injector 6J
Fig 1: Synchronization Of Injection Firing Order - Electrical Function Schematic
G10077574Courtesy of MERCEDES-BENZ USA
