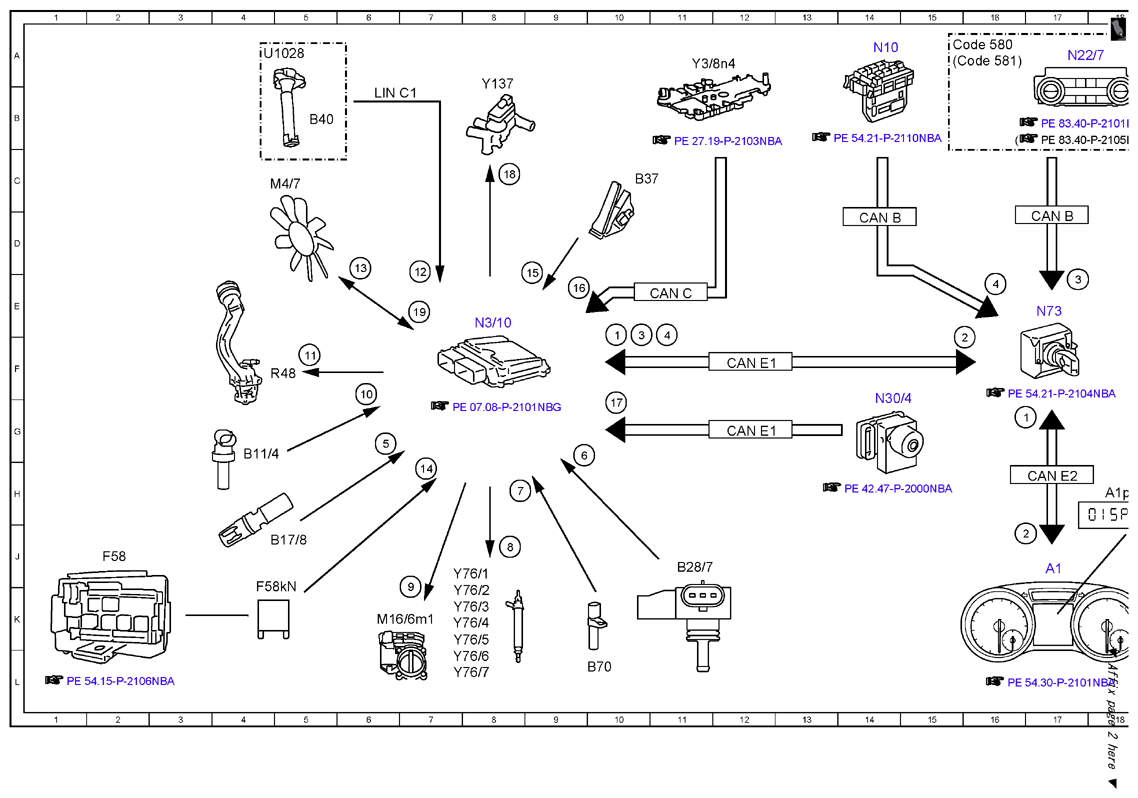

| 1 |
Vehicle speed, signal |
10F |
| 1 |
Vehicle speed, signal |
16G |
| 10 |
Coolant temperature sensor, signal |
6F |
| 11 |
Coolant thermostat heating element, actuation |
5F |
| 12 |
Oil sensor (oil level, temperature and quality), signal |
7E |
| 13 |
Fan motor, specified rpm request |
6D |
| 14 |
Circuit 87, status |
7H |
| 15 |
Accelerator pedal sensor, signal |
9E |
| 16 |
Transmission control, signal |
9E |
| 17 |
Wheel speed, signal |
10G |
| 18 |
High-temperature/low-temperature circuit switchover valve, actuation |
8C |
| 19 |
Fan motor, status |
7E |
| 2 |
Instrument cluster, message |
16J |
| 2 |
Instrument cluster, message |
16F |
| 3 |
Air conditioning, status |
17E |
| 3 |
Air conditioning, status |
10F |
| 4 |
Outside temperature, signal |
16E |
| 4 |
Outside temperature, signal |
11F |
| 5 |
Charge air temperature sensor, signal |
6G |
| 6 |
Engine load, signal |
9G |
| 7 |
Engine speed, signal |
8H |
| 8 |
Fuel injectors, actuation |
8J |
| 9 |
Throttle valve actuator motor, actuation |
|

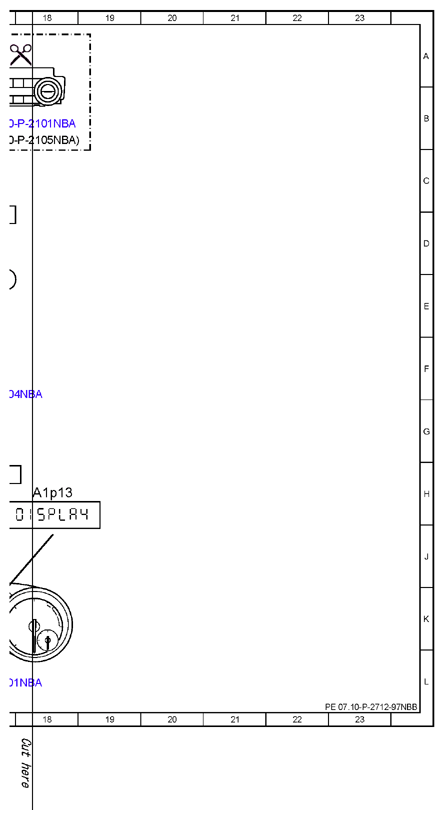

| A1 |
Instrument cluster |
17J |
| B11/4 |
Coolant temperature sensor |
4G |
| B17/8 |
Charge air temperature sensor |
5J |
| B28/7 |
Pressure sensor downstream of throttle valve |
11J |
| B37 |
Accelerator pedal sensor |
10C |
| B40 |
Oil sensor (oil level, temperature and quality) |
5B |
| B70 |
Crankshaft Hall sensor |
9L |
| CAN B |
Interior CAN |
17D |
| CAN B |
Interior CAN |
14D |
| CAN C |
Drive train CAN |
11E |
| CAN E1 |
Chassis CAN 1 |
12G |
| CAN E1 |
Chassis CAN 1 |
12F |
| CAN E2 |
Chassis CAN 2 |
17H |
| Code 580 |
Automatic air conditioning |
15A |
| Code 581 |
Comfort automatic air conditioning |
15A |
| F58 |
Engine compartment fuse and relay module |
2J |
| F58kN |
Circuit 87M relay |
4K |
| LIN C1 |
Drive train LIN |
6B |
| M16/6m1 |
Actuator motor |
6K |
| M4/7 |
Fan motor |
5C |
| N10 |
SAM control unit |
14A |
| N22/7 |
Automatic air conditioning control and operating unit |
17A |
| N3/10 |
ME-SFI [ME] control unit |
8E |
| N30/4 |
Electronic Stability Program control unit |
14G |
| N73 |
Electronic ignition switch control unit |
17E |
| R48 |
Coolant thermostat heating element |
4F |
| U1028 |
Valid for engine 157 |
4A |
| Y137 |
High-temperature/low-temperature circuit switchover valve |
8B |
| Y3/8n4 |
Fully integrated transmission control control unit |
11A |
| Y76/1 |
Cylinder 1 fuel injector |
7J |
| Y76/2 |
Cylinder 2 fuel injector |
7K |
| Y76/3 |
Cylinder 3 fuel injector |
7K |
| Y76/4 |
Cylinder 4 fuel injector |
7K |
| Y76/5 |
Cylinder 5 fuel injector |
7K |
| Y76/6 |
Cylinder 6 fuel injector |
7L |
| Y76/7 |
Cylinder 7 fuel injector |
7L |
