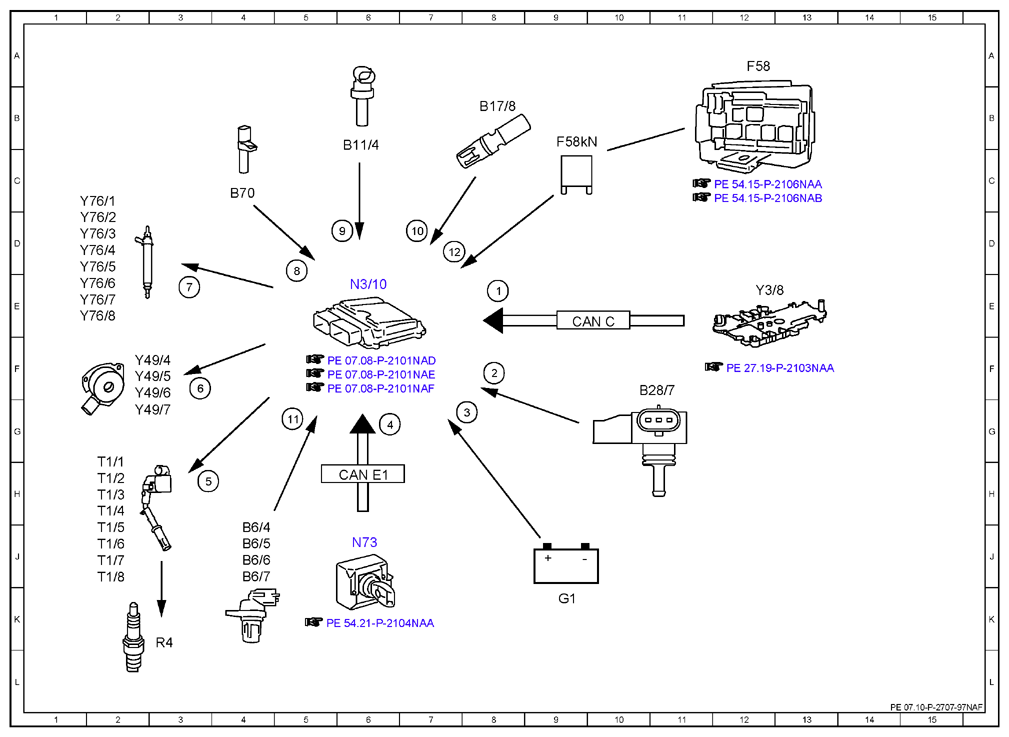

| 1 |
Gear range, status |
8E |
| 10 |
Charge air temperature sensor, signal |
7D |
| 11 |
Camshaft Hall sensor, signal |
5G |
| 12 |
Circuit 87, status |
7D |
| 2 |
Engine load, signal |
8F |
| 3 |
Circuit 30, status |
8G |
| 4 |
Circuit 50, status |
6G |
| 5 |
Ignition coils, actuation |
3H |
| 6 |
Camshaft solenoids, actuation |
3F |
| 7 |
Fuel injectors, actuation |
3E |
| 8 |
Engine speed, signal |
5E |
| 9 |
Coolant temperature sensor, signal |
6D |
| B11/4 |
Coolant temperature sensor |
6C |
| B17/8 |
Charge air temperature sensor |
8B |
| B28/7 |
Pressure sensor downstream of throttle valve |
10F |
| B6/4 |
Left intake camshaft Hall sensor |
4J |
| B6/5 |
Right intake camshaft Hall sensor |
4J |
| B6/6 |
Left exhaust camshaft Hall sensor |
4J |
| B6/7 |
Right exhaust camshaft Hall sensor |
4J |
| B70 |
Crankshaft Hall sensor |
4C |
| CAN C |
Drive train CAN |
9E |
| CAN E1 |
Chassis CAN 1 |
6H |
| F58 |
Engine compartment fuse and relay module |
12A |
| F58kN |
Circuit 87M relay |
9B |
| G1 |
On-board electrical system battery |
9K |
| N3/10 |
ME-SFI [ME] control unit |
6E |
| N73 |
Electronic ignition switch control unit |
6J |
| R4 |
Spark plugs |
3K |
| T1/1 |
Cylinder 1 ignition coil |
2H |
| T1/2 |
Cylinder 2 ignition coil |
2H |
| T1/3 |
Cylinder 3 ignition coil |
2H |
| T1/4 |
Cylinder 4 ignition coil |
2H |
| T1/5 |
Cylinder 5 ignition coil |
2J |
| T1/6 |
Cylinder 6 ignition coil |
2J |
| T1/7 |
Cylinder 7 ignition coil |
2J |
| T1/8 |
Cylinder 8 ignition coil |
2J |
| Y3/8 |
Fully integrated transmission control control unit |
12E |
| Y49/4 |
Left intake camshaft solenoid |
2F |
| Y49/5 |
Right intake camshaft solenoid |
2F |
| Y49/6 |
Left exhaust camshaft solenoid |
2F |
| Y49/7 |
Right exhaust camshaft solenoid |
2G |
| Y76/1 |
Cylinder 1 fuel injector |
1C |
| Y76/2 |
Cylinder 2 fuel injector |
1D |
| Y76/3 |
Cylinder 3 fuel injector |
1D |
| Y76/4 |
Cylinder 4 fuel injector |
1D |
| Y76/5 |
Cylinder 5 fuel injector |
1D |
| Y76/6 |
Cylinder 6 fuel injector |
1E |
| Y76/7 |
Cylinder 7 fuel injector |
1E |
| Y76/8 |
Cylinder 8 fuel injector |
1E |
