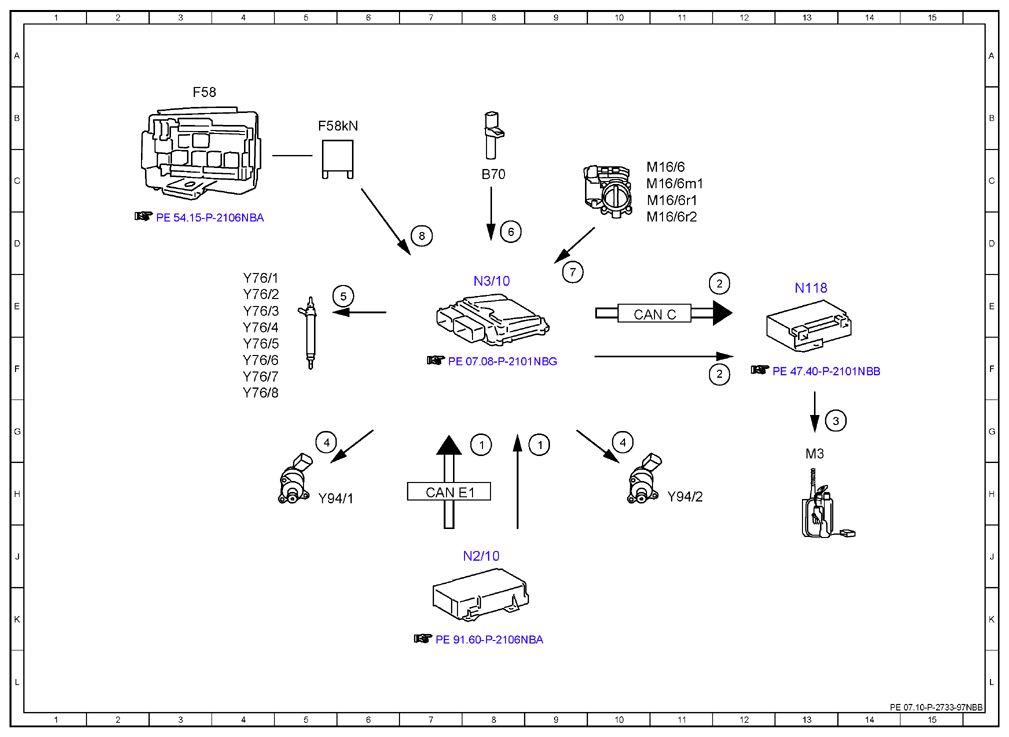

| 1 |
Crash, signal |
8G |
| 1 |
Crash, signal |
9G |
| 2 |
Fuel pump, request OFF |
12E |
| 2 |
Fuel pump, request OFF |
12F |
| 3 |
Fuel pump, actuation OFF |
13G |
| 4 |
Quantity control valve, actuation |
5G |
| 4 |
Quantity control valve, actuation |
10G |
| 5 |
Fuel injectors, actuation |
6E |
| 6 |
Engine speed, signal |
8D |
| 7 |
Throttle valve position, signal |
9E |
| 8 |
Circuit 87, status |
7D |
| B70 |
Crankshaft Hall sensor |
8C |
| CAN C |
Drive train CAN |
10E |
| CAN E1 |
Chassis CAN 1 |
7H |
| F58 |
Engine compartment fuse and relay module |
3B |
| F58kN |
Circuit 87M relay |
5B |
| M16/6 |
Throttle valve actuator |
11C |
| M16/6m1 |
Actuator motor |
11C |
| M16/6r1 |
Actual value potentiometer 1 |
11C |
| M16/6r2 |
Actual value potentiometer 2 |
11D |
| M3 |
Fuel pump (FP) |
13G |
| N118 |
Fuel pump control unit |
13E |
| N2/10 |
Supplemental restraint system control unit |
8J |
| N3/10 |
ME-SFI [ME] control unit |
8E |
| Y76/1 |
Cylinder 1 fuel injector |
4E |
| Y76/2 |
Cylinder 2 fuel injector |
4E |
| Y76/3 |
Cylinder 3 fuel injector |
4E |
| Y76/4 |
Cylinder 4 fuel injector |
4E |
| Y76/5 |
Cylinder 5 fuel injector |
4F |
| Y76/6 |
Cylinder 6 fuel injector |
4F |
| Y76/7 |
Cylinder 7 fuel injector |
4F |
| Y76/8 |
Cylinder 8 fuel injector |
4F |
| Y94/1 |
Left quantity control valve |
5H |
| Y94/2 |
Right quantity control valve |
11H |
