Electrical function schematic for camshaft adjustment - PE07.10-P-2716-97NAF

Code: Designation: Position:
1 Engine load, signal 5H
2 Camshaft Hall sensor, signal 4H
3 Coolant temperature sensor, signal 3H
4 Camshaft solenoids, actuation 2F
5 Engine speed, signal 4E
6 Engine oil pump valve, actuation 6F
7 Circuit 87, status 5E
B11/4 Coolant temperature sensor 2K
B28/7 Pressure sensor downstream of throttle valve 6K
B6/4 Left intake camshaft Hall sensor 4K
B6/5 Right intake camshaft Hall sensor 4K
B6/6 Left exhaust camshaft Hall sensor 4K
B6/7 Right exhaust camshaft Hall sensor 4L
B70 Crankshaft Hall sensor 4D
F58 Engine compartment fuse and relay module 6A
F58kN Circuit 87M relay 6D
N3/10 ME-SFI [ME] control unit 4F
Y130 Engine oil pump valve 7G
Y49/4 Left intake camshaft solenoid 1G
Y49/5 Right intake camshaft solenoid 1G
Y49/6 Left exhaust camshaft solenoid 1H
Y49/7 Right exhaust camshaft solenoid 1H

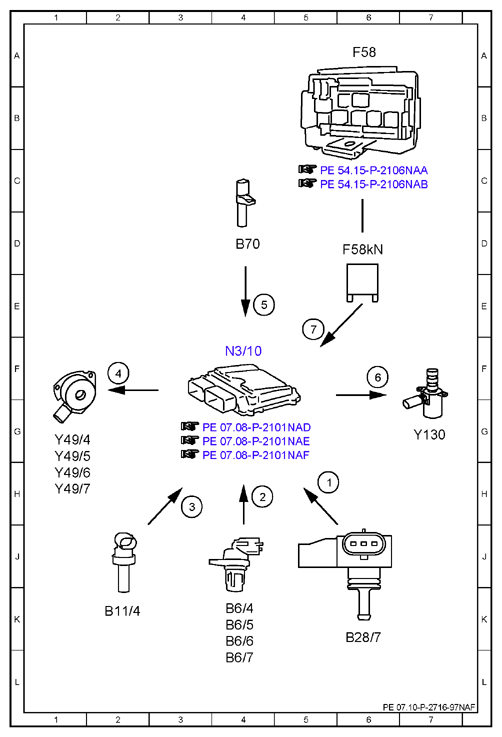

Fig 1: Camshaft Adjustment - Electrical Function Schematic
G10077595Courtesy of MERCEDES-BENZ USA
