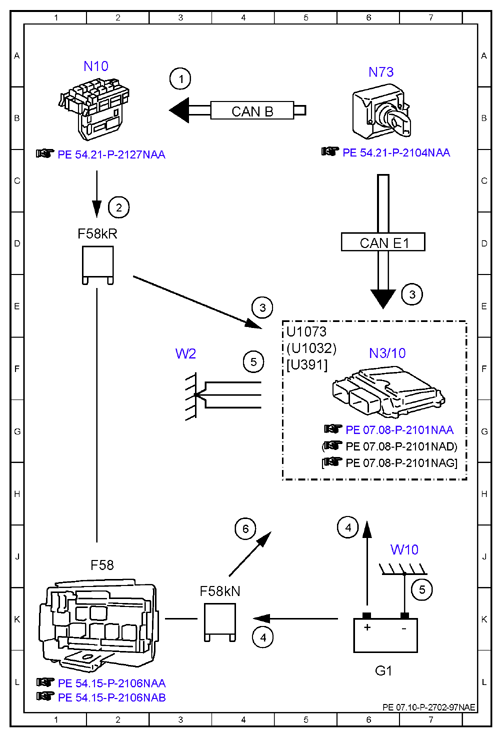

| 1 |
Circuit 15, request OFF |
3A |
| 2 |
Circuit 15 relay, actuation OFF |
2C |
| 3 |
Circuit 15, status OFF |
4E |
| 3 |
Circuit 15, status OFF |
7E |
| 4 |
Circuit 30, status |
4K |
| 4 |
Circuit 30, status |
6J |
| 5 |
Circuit 31, status |
4F |
| 5 |
Circuit 31, status |
7K |
| 6 |
Circuit 87, status |
4J |
| CAN B |
Interior CAN |
4B |
| CAN E1 |
Chassis CAN 1 |
6D |
| F58 |
Engine compartment fuse and relay module |
2J |
| F58kN |
Circuit 87M relay |
3K |
| F58kR |
Circuit 15 relay |
2D |
| G1 |
On-board electrical system battery |
6L |
| N10 |
SAM control unit |
2A |
| N3/10 |
ME-SFI [ME] control unit |
6F |
| N73 |
Electronic ignition switch control unit |
6A |
| U1032 |
Valid for engine 278 and 157 |
5F |
| U1073 |
Valid for gasoline engine 276.9 |
5E |
| U391 |
Valid for gasoline engine 276.8 |
5F |
| W10 |
Front right on-board electrical system battery ground point |
6J |
| W2 |
Right front ground point at lamp unit |
3F |
