Remove/Install Charge Air Ducts - AR09.41-P-8620GQC
Engine276.8 in model 166, 251, 292
| Remove/install | |||
| 1 | Remove partition wall between wheel wells | Engine 276.8 in Model 251 | |
| AR62.30-P-2400RT | |||
| 2 | Remove upper engine cover | ||
| 3 | Remove right and left engine air intake duct upstream of air filter | ||
| 4 | Remove screw/bolts (4) and remove clamps | *BA09.41-P-1006-01R | |
| 5 | Remove screws/bolt (3) | ||
| 6 | Loosen clamps (2) | ||
| 7 | Detach right charge air pipe (1r) and left charge air pipe (1l) from ATLs and charge air coolers | ||

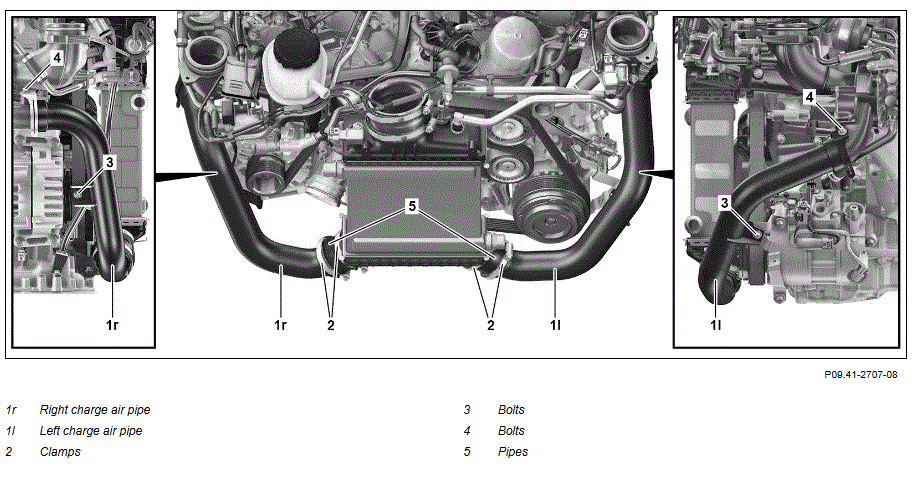

| Fig 1 | |||
| 8 | Remove right charge air pipe (1r) and left charge air pipe (1l) from engine compartment | ||
| 9 | Detach pipe (5) from right charge air pipe (1r) and left charge air pipe (1l) | When replacing the right charge air pipe (1r) and left charge air pipe (1l) | |
| 10 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 11 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 276.8 | |
|---|---|---|---|
| BA09.41-P-1006-01R | Screw/bolt, charge air pipe to turbocharger | Nm | 9 |
