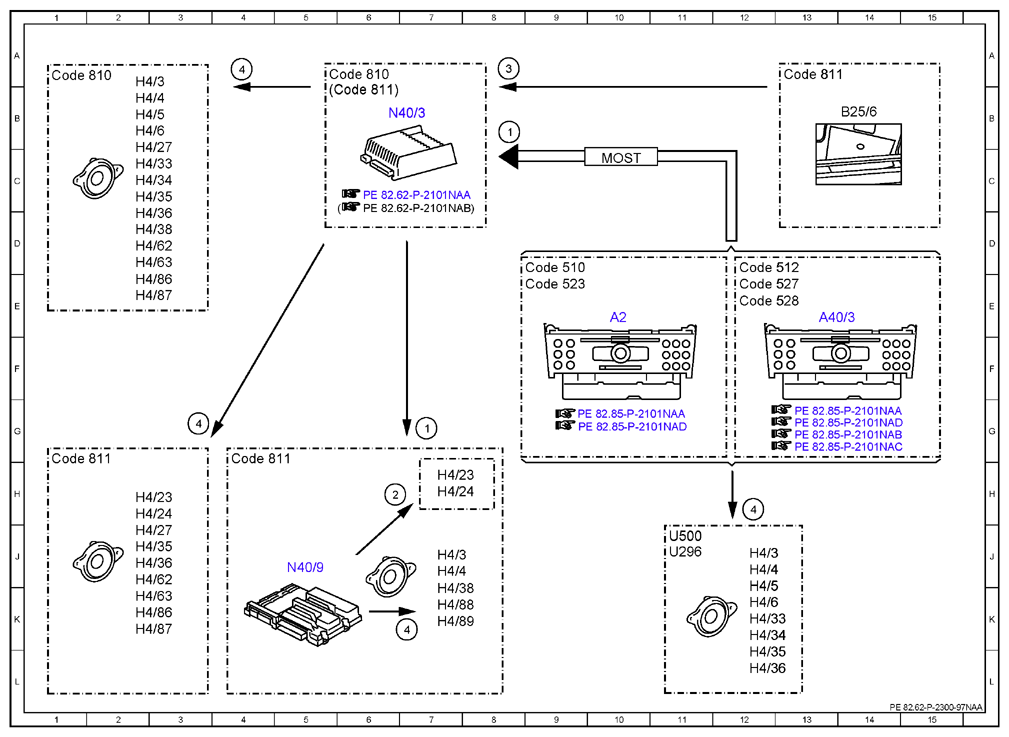

| 1 |
Audio, signal |
8B |
| 1 |
Audio, signal |
7G |
| 2 |
Speaker illumination, actuation |
6H |
| 3 |
Microphone, signal |
8A |
| 4 |
Speaker, actuation |
4A |
| 4 |
Speaker, actuation |
3G |
| 4 |
Speaker, actuation |
7K |
| 4 |
Speaker, actuation |
12H |
| A2 |
Radio |
10E |
| A40/3 |
COMAND control unit |
13E |
| B25/6 |
Sound system microphone |
14B |
| Code 510 |
Audio 20 with CD changer |
9D |
| Code 512 |
COMAND APS with DVD changer |
12D |
| Code 523 |
Audio 20 radio |
9E |
| Code 527 |
COMAND APS (with navigation) |
12E |
| Code 528 |
COMAND with DVD changer |
12E |
| Code 810 |
Sound system |
1A |
| Code 810 |
Sound system |
5A |
| Code 811 |
Extended sound system |
1H |
| Code 811 |
Extended sound system |
4H |
| Code 811 |
Extended sound system |
5B |
| Code 811 |
Extended sound system |
13A |
| H4/23 |
Left front door speaker, mirror triangle |
2H |
| H4/23 |
Left front door speaker, mirror triangle |
7H |
| H4/24 |
Right front door speaker, mirror triangle |
2H |
| H4/24 |
Right front door speaker, mirror triangle |
7H |
| H4/27 |
Center instrument panel speaker |
2J |
| H4/27 |
Center instrument panel speaker |
2C |
| H4/3 |
Left rear door speaker |
7J |
| H4/3 |
Left rear door speaker |
2A |
| H4/3 |
Left rear door speaker |
12J |
| H4/33 |
Left front door tweeter |
2C |
| H4/33 |
Left front door tweeter |
12K |
| H4/34 |
Right front door tweeter |
2C |
| H4/34 |
Right front door tweeter |
12K |
| H4/35 |
Left rear door tweeter |
2J |
| H4/35 |
Left rear door tweeter |
2C |
| H4/35 |
Left rear door tweeter |
12L |
| H4/36 |
Right rear door tweeter |
2J |
| H4/36 |
Right rear door tweeter |
2D |
| H4/36 |
Right rear door tweeter |
12L |
| H4/38 |
Rear bass speaker |
7K |
| H4/38 |
Rear bass speaker |
2D |
| H4/4 |
Right rear door speaker |
7J |
| H4/4 |
Right rear door speaker |
2B |
| H4/4 |
Right rear door speaker |
12J |
| H4/5 |
Left front door speaker |
2B |
| H4/5 |
Left front door speaker |
12K |
| H4/6 |
Right front door speaker |
2B |
| H4/6 |
Right front door speaker |
12K |
| H4/62 |
Left rear surround speaker |
2J |
| H4/62 |
Left rear surround speaker |
2D |
| H4/63 |
Right rear surround speaker |
2K |
| H4/63 |
Right rear surround speaker |
2D |
| H4/86 |
Left front door midrange speaker |
2K |
| H4/86 |
Left front door midrange speaker |
2E |
| H4/87 |
Right front door midrange speaker |
2K |
| H4/87 |
Right front door midrange speaker |
2E |
| H4/88 |
Left front door bass speaker |
7K |
| H4/89 |
Right front door bass speaker |
7K |
| MOST |
Media Oriented System Transport |
10C |
| N40/3 |
Sound system amplifier control unit |
6B |
| N40/9 |
Bass speaker amplifier |
5J |
| U296 |
Not valid for expanded sound system |
11J |
| U500 |
Not valid for sound system |
11J |
