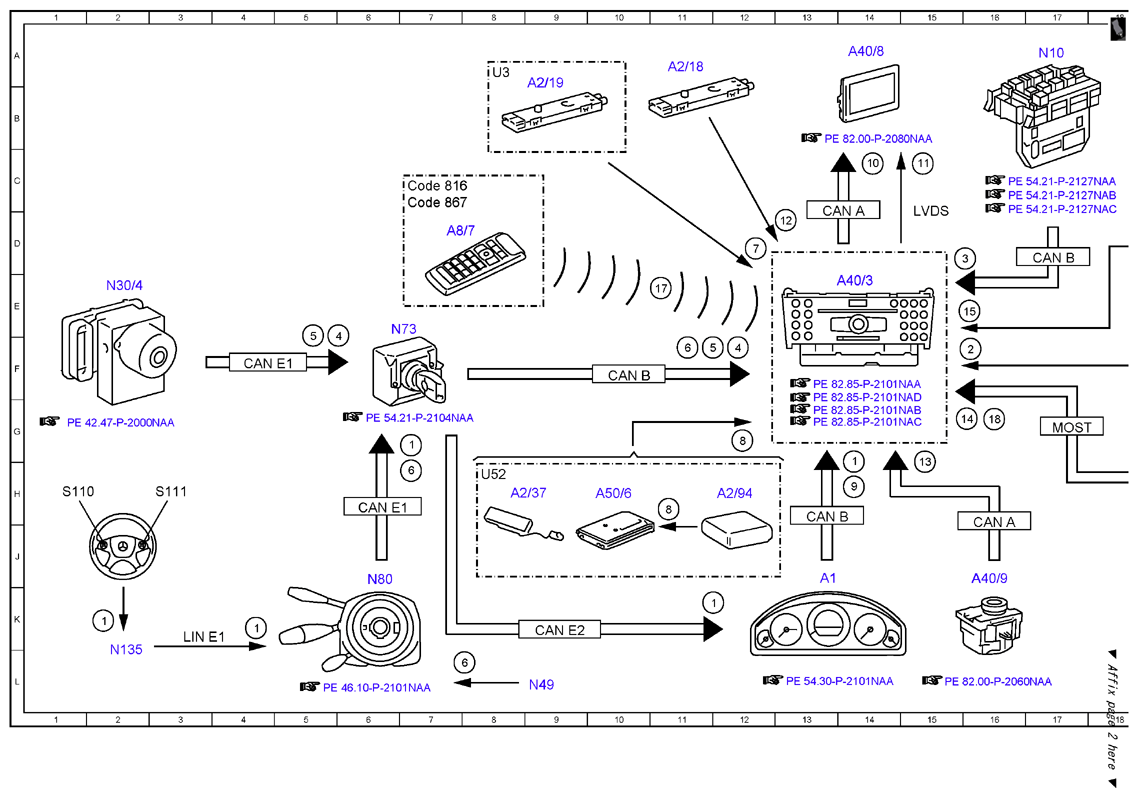

| 1 |
Multifunction steering wheel button group, signal |
2K |
| 1 |
Multifunction steering wheel button group, signal |
4K |
| 1 |
Multifunction steering wheel button group, signal |
7G |
| 1 |
Multifunction steering wheel button group, signal |
11K |
| 1 |
Multifunction steering wheel button group, signal |
14H |
| 10 |
Switch-on request, signal |
14C |
| 11 |
Audio/COMAND display, message |
15C |
| 12 |
AM/FM antenna, signal |
13D |
| 13 |
Audio/COMAND controller, request |
15H |
| 14 |
SDAR antenna, signal |
16G |
| 15 |
Traffic data, signal |
16E |
| 15 |
Traffic data, signal |
20C |
| 16 |
Position data, signal |
19D |
| 16 |
Position data, signal |
20B |
| 17 |
Operation, signal |
11E |
| 18 |
DAB band III, signal |
16G |
| 2 |
GPS, signal |
16F |
| 2 |
GPS, signal |
22F |
| 3 |
Circuit 30, status |
16D |
| 4 |
Wheel speed, signal |
5F |
| 4 |
Wheel speed, signal |
12F |
| 5 |
Direction of travel, signal |
5F |
| 5 |
Direction of travel, signal |
11F |
| 6 |
Steering wheel angle sensor, signal |
8L |
| 6 |
Steering wheel angle sensor, signal |
7H |
| 6 |
Steering wheel angle sensor, signal |
11F |
| 7 |
FM antenna, signal |
12D |
| 8 |
Vehicle Information and Communication System (VICS), signal |
12G |
| 8 |
Vehicle Information and Communication System (VICS), signal |
11H |
| 9 |
Vehicle speed, signal |
14H |
| A1 |
Instrument cluster |
13J |
| A2/18 |
FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier |
11A |
| A2/19 |
FM 2 and DAB antenna amplifier |
9B |
| A2/37 |
Vehicle Information and Communication System (VICS) control unit |
8H |
| A2/5 |
Global positioning system antenna splitter |
20F |

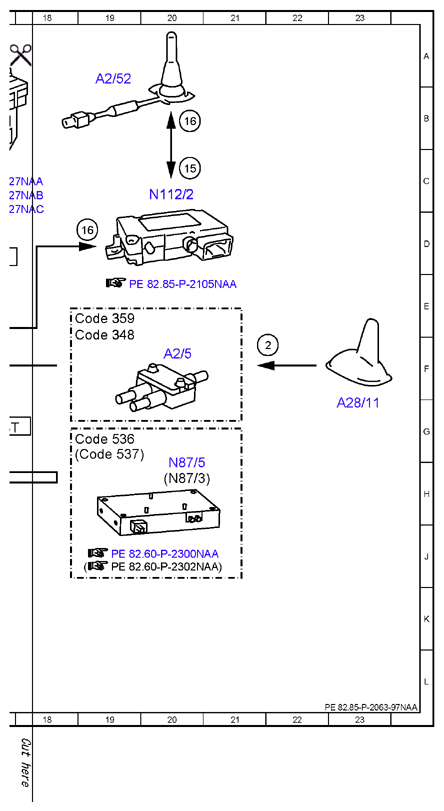

| A2/52 |
Emergency call system antenna |
19A |
| A2/94 |
ETC/DSRC antenna |
12H |
| A28/11 |
Multifunction antenna |
23G |
| A40/3 |
COMAND control unit |
13E |
| A40/8 |
Audio/COMAND display |
14A |
| A40/9 |
Audio/COMAND control panel |
16J |
| A50/6 |
Dedicated Short-Range Communications control unit |
10H |
| A8/7 |
Remote control |
7D |
| CAN A |
Telematics CAN |
16J |
| CAN A |
Telematics CAN |
13D |
| CAN B |
Interior CAN |
10F |
| CAN B |
Interior CAN |
13H |
| CAN B |
Interior CAN |
17D |
| CAN E1 |
Chassis CAN 1 |
6H |
| CAN E1 |
Chassis CAN 1 |
4F |
| CAN E2 |
Chassis CAN 2 |
9K |
| Code 348 |
Emergency call/assistance system |
18F |
| Code 359 |
TELEAID emergency call system |
18E |
| Code 536 |
SIRIUS satellite radio |
18G |
| Code 537 |
Digital radio |
18G |
| Code 816 |
Entertainment remote control |
7C |
| Code 867 |
SPLITVIEW |
7C |
| LIN E1 |
Steering LIN |
3K |
| LVDS |
Low voltage differential signal |
15D |
| MOST |
Media Oriented System Transport |
17G |
| N10 |
SAM control unit |
17A |
| N112/2 |
Telematics services communication module |
20C |
| N135 |
Steering wheel electronics |
2L |
| N30/4 |
Electronic Stability Program control unit |
2E |
| N49 |
Steering wheel angle sensor |
9L |
| N73 |
Electronic ignition switch control unit |
6E |
| N80 |
Steering column module control unit |
6J |
| N87/3 |
Digital Audio Broadcasting control unit |
20H |
| N87/5 |
Satellite digital audio radio (SDAR) control unit |
20H |
| S110 |
Left multifunction steering wheel button group |
1H |
| S111 |
Right multifunction steering wheel button group |
3H |
| U3 |
Valid for all except Japan |
8A |
| U52 |
Valid for Japan |
8H |
