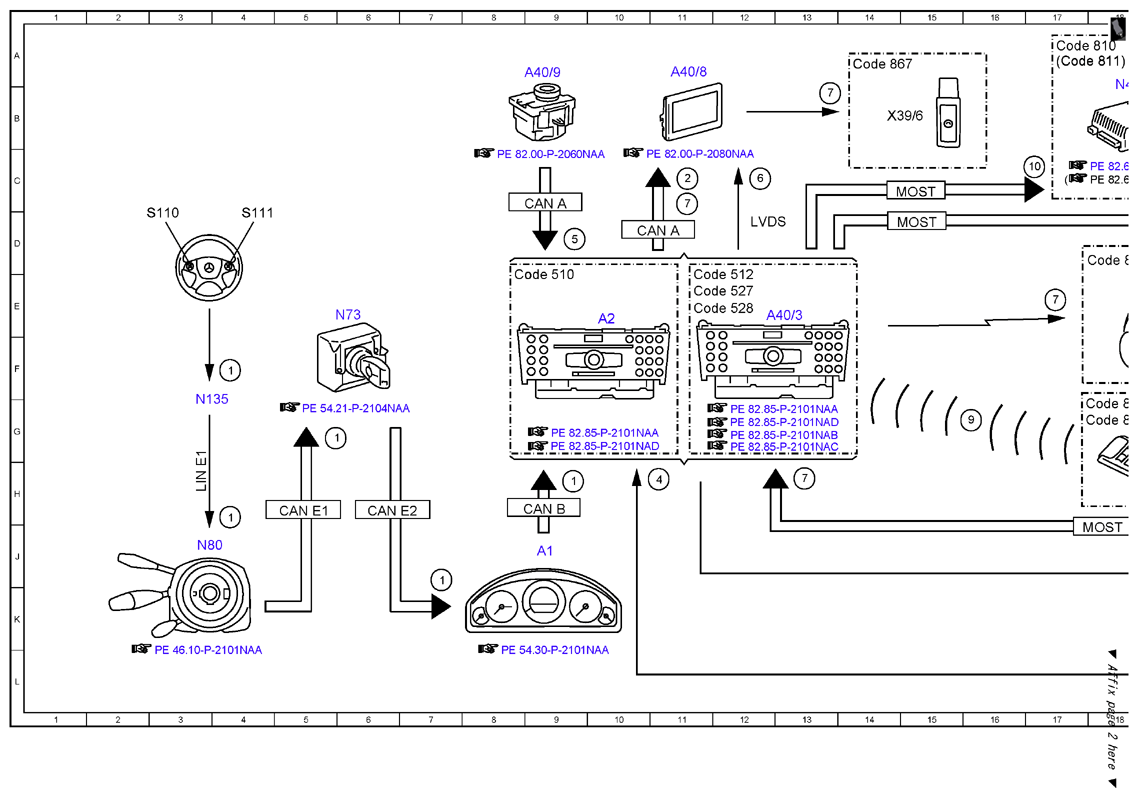

| 1 |
Multifunction steering wheel button group, signal |
4F |
| 1 |
Multifunction steering wheel button group, signal |
7J |
| 1 |
Multifunction steering wheel button group, signal |
4H |
| 1 |
Multifunction steering wheel button group, signal |
5G |
| 1 |
Multifunction steering wheel button group, signal |
9H |
| 1 |
Multifunction steering wheel button group, signal |
22L |
| 1 |
Multifunction steering wheel button group, signal |
23G |
| 10 |
Sound system amplifier, actuation |
17C |
| 2 |
Switch-on request, signal |
11C |
| 3 |
Wake-up, signal |
21J |
| 4 |
Video, signal |
11H |
| 5 |
Audio/COMAND controller, request |
9D |
| 6 |
Audio/COMAND display, signal |
12C |
| 7 |
Audio, signal |
13H |
| 7 |
Audio, signal |
22K |
| 7 |
Audio, signal |
17E |
| 7 |
Audio, signal |
11C |
| 7 |
Audio, signal |
13B |
| 9 |
Operation, signal |
16G |
| A1 |
Instrument cluster |
9J |
| A2 |
Radio |
10E |
| A40/3 |
COMAND control unit |
12E |
| A40/8 |
Audio/COMAND display |
11A |
| A40/9 |
Audio/COMAND control panel |
8A |
| A8/7 |
Remote control |
19G |
| CAN A |
Telematics CAN |
9C |
| CAN A |
Telematics CAN |
11D |
| CAN B |
Interior CAN |
9H |
| CAN E1 |
Chassis CAN 1 |
5H |
| CAN E2 |
Chassis CAN 2 |
6H |
| Code 510 |
Audio 20 with CD changer |
8E |
| Code 512 |
COMAND APS with DVD changer |
11E |
| Code 527 |
COMAND APS (with navigation) |
11E |
| Code 528 |
COMAND with DVD changer |
11E |
| Code 810 |
Sound system |
17A |
| Code 811 |
Extended sound system |
17A |
| Code 816 |
Entertainment remote control |
17G |
| Code 867 |
SPLITVIEW |
14A |
| Code 867 |
SPLITVIEW |
17G |
| H8/3 |
Radio frequency headphones |
19E |
| LIN E1 |
Steering LIN |
3H |
| LVDS |
Low voltage differential signal |
12D |
| MOST |
Media Oriented System Transport |
18J |
| MOST |
Media Oriented System Transport |
15D |
| MOST |
Media Oriented System Transport |
15C |

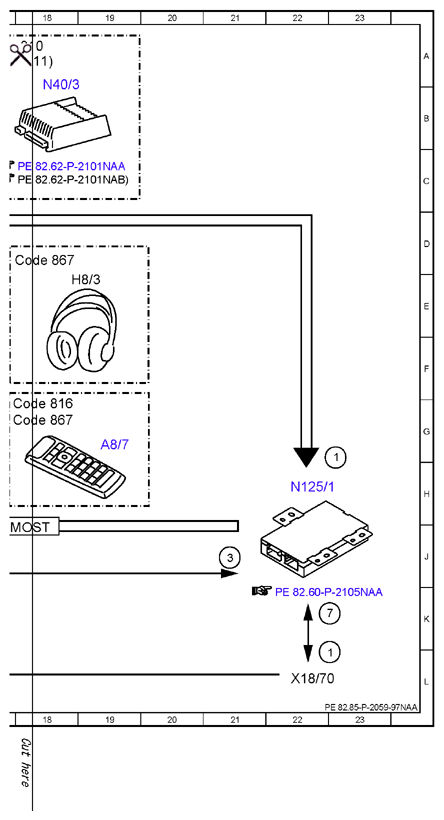

| N125/1 |
Media interface control unit |
22H |
| N135 |
Steering wheel electronics |
3G |
| N40/3 |
Sound system amplifier control unit |
18B |
| N73 |
Electronic ignition switch control unit |
5E |
| N80 |
Steering column module control unit |
3J |
| S110 |
Left multifunction steering wheel button group |
2D |
| S111 |
Right multifunction steering wheel button group |
4D |
| X18/70 |
Media interface electrical connector |
22L |
| X39/6 |
Headphones electrical connector (cabled) |
14B |
