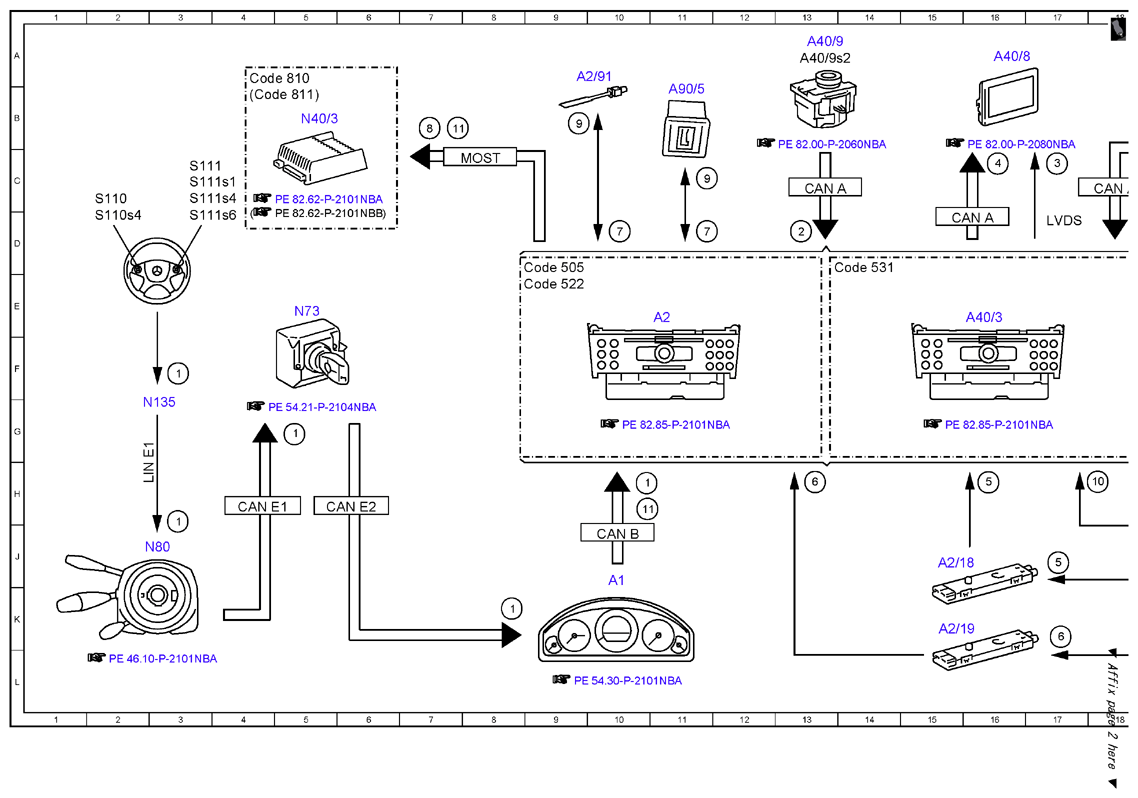

| 1 |
Multifunction steering wheel button group, signal |
3F |
| 1 |
Multifunction steering wheel button group, signal |
3J |
| 1 |
Multifunction steering wheel button group, signal |
5G |
| 1 |
Multifunction steering wheel button group, signal |
8K |
| 1 |
Multifunction steering wheel button group, signal |
10H |
| 10 |
Voice input, signal |
18H |
| 11 |
Vehicle speed, signal |
7B |
| 11 |
Vehicle speed, signal |
10H |
| 2 |
Audio/COMAND controller, request |
13D |
| 3 |
Audio/COMAND display, message |
17C |
| 4 |
Switch-on request, signal |
16C |
| 5 |
AM/FM antenna, signal |
16H |
| 5 |
AM/FM antenna, signal |
17J |
| 6 |
FM antenna, signal |
13H |
| 6 |
FM antenna, signal |
17K |
| 7 |
Audio, signal |
11D |
| 7 |
Audio, signal |
10D |
| 8 |
Sound system amplifier, actuation |
7B |
| 9 |
Operation, signal |
11C |
| 9 |
Operation, signal |
18D |
| 9 |
Operation, signal |
9B |
| A1 |
Instrument cluster |
10J |

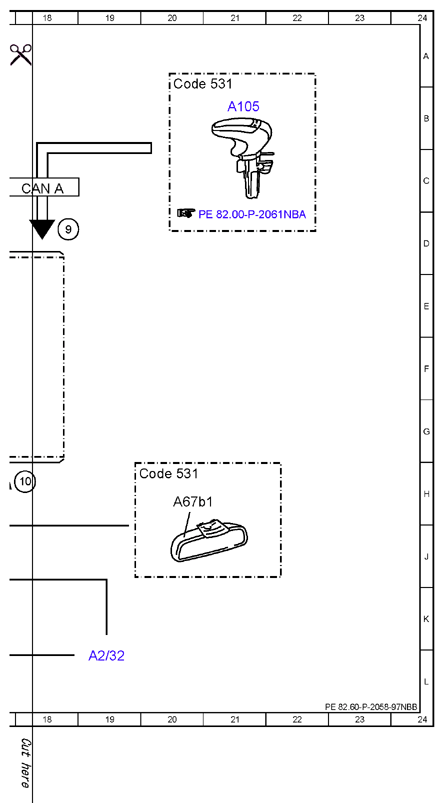

| A105 |
Touchpad |
21B |
| A2 |
Radio |
11E |
| A2/18 |
FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier |
15J |
| A2/19 |
FM 2 and DAB antenna amplifier |
15K |
| A2/32 |
Rear window antenna |
19L |
| A2/91 |
Bluetooth® antenna |
9A |
| A40/3 |
COMAND control unit |
16E |
| A40/8 |
Audio/COMAND display |
16A |
| A40/9 |
Audio/COMAND control panel |
13A |
| A40/9s2 |
"Back" button |
13A |
| A67b1 |
Hands-free system microphone group |
20H |
| A90/5 |
Multimedia connection unit |
11B |
| CAN A |
Telematics CAN |
18C |
| CAN A |
Telematics CAN |
16D |
| CAN A |
Telematics CAN |
13C |
| CAN B |
Interior CAN |
10J |
| CAN E1 |
Chassis CAN 1 |
4H |
| CAN E2 |
Chassis CAN 2 |
6H |
| Code 505 |
Radio 20 NTG5, non-navigation-capable |
8D |
| Code 522 |
Audio 20 radio |
8E |
| Code 531 |
COMAND APS |
13D |
| Code 531 |
COMAND APS |
19H |
| Code 531 |
COMAND APS |
20B |
| Code 810 |
Sound system |
4A |
| Code 811 |
Extended sound system |
4B |
| LIN E1 |
Steering LIN |
2H |
| LVDS |
Low voltage differential signal |
17D |
| MOST |
Media Oriented System Transport |
8C |
| N135 |
Steering wheel electronics |
2G |
| N40/3 |
Sound system amplifier control unit |
5B |
| N73 |
Electronic ignition switch control unit |
5E |
| N80 |
Steering column module control unit |
2J |
| S110 |
Left multifunction steering wheel button group |
2C |
| S110s4 |
"Back" and voice control system OFF button |
2D |
| S111 |
Right multifunction steering wheel button group |
3C |
| S111s1 |
Buttons + and - for setting specific functions and volume control |
3C |
| S111s4 |
Voice control system ON button |
3C |
| S111s6 |
Mute function button |
3D |
