| A0 |
Color code key |
23L |

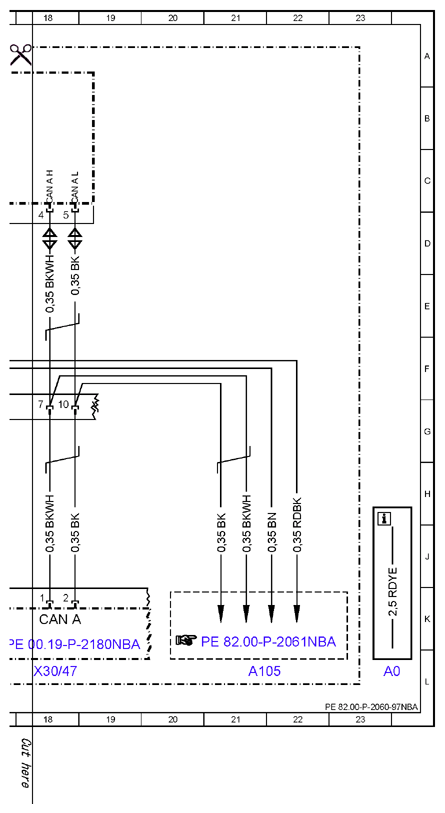

| A105 |
Touchpad |
21L |
| A40/9 |

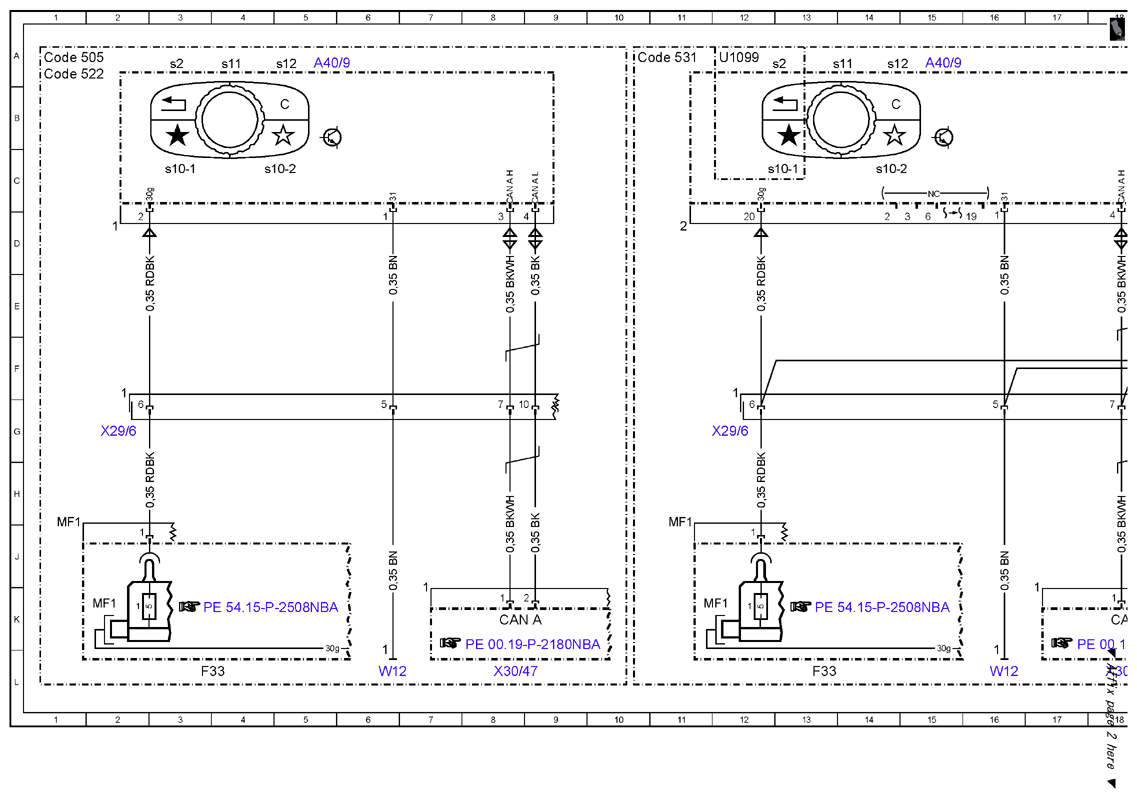

Audio/COMAND control panel |
5A |
| A40/9 |
Audio/COMAND control panel |
15A |
| A40/9s10-1 |
Left free programming button |
3C |
| A40/9s10-1 |
Left free programming button |
12C |
| A40/9s10-2 |
Right free programming button |
5C |
| A40/9s10-2 |
Right free programming button |
14C |
| A40/9s11 |
Audio/COMAND controller |
4A |
| A40/9s11 |
Audio/COMAND controller |
14A |
| A40/9s12 |
"Delete" button |
5A |
| A40/9s12 |
"Delete" button |
14A |
| A40/9s2 |
"Back" button |
3A |
| A40/9s2 |
"Back" button |
13A |
| CAN A |
Telematics CAN |
8K |
| CAN A |
Telematics CAN |
18K |
| Code 505 |
Radio 20 NTG5, non-navigation-capable |
1A |
| Code 522 |
Audio 20 radio |
1A |
| Code 531 |
COMAND APS |
10A |
| F33 |
Battery compartment prefuse box |
3L |
| F33 |
Battery compartment prefuse box |
13L |
| F33MF1 |
Multiple fuse 1 |
2K |
| F33MF1 |
Multiple fuse 1 |
12K |
| U1099 |
Valid without code 448 Touchpad |
12A |
| W12 |
Ground point (center console) |
6L |
| W12 |
Ground point (center console) |
16L |
| X29/6 |
Center console electrical connector |
2G |
| X29/6 |
Center console electrical connector |
12G |
| X30/47 |
Telematics CAN voltage distributor electrical connector |
8L |
| X30/47 |
Telematics CAN voltage distributor electrical connector |
18L |
